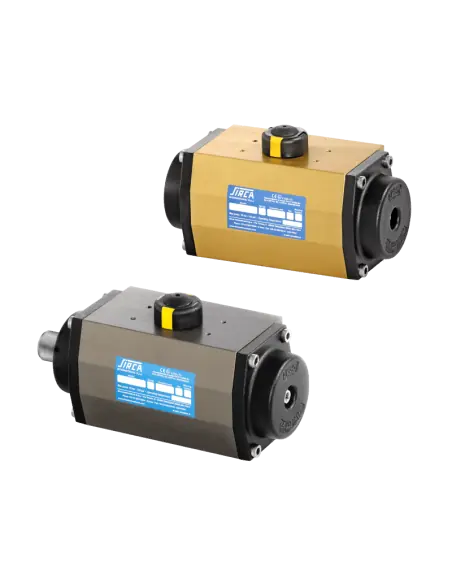

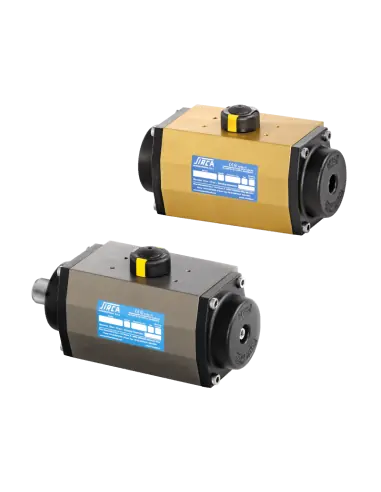

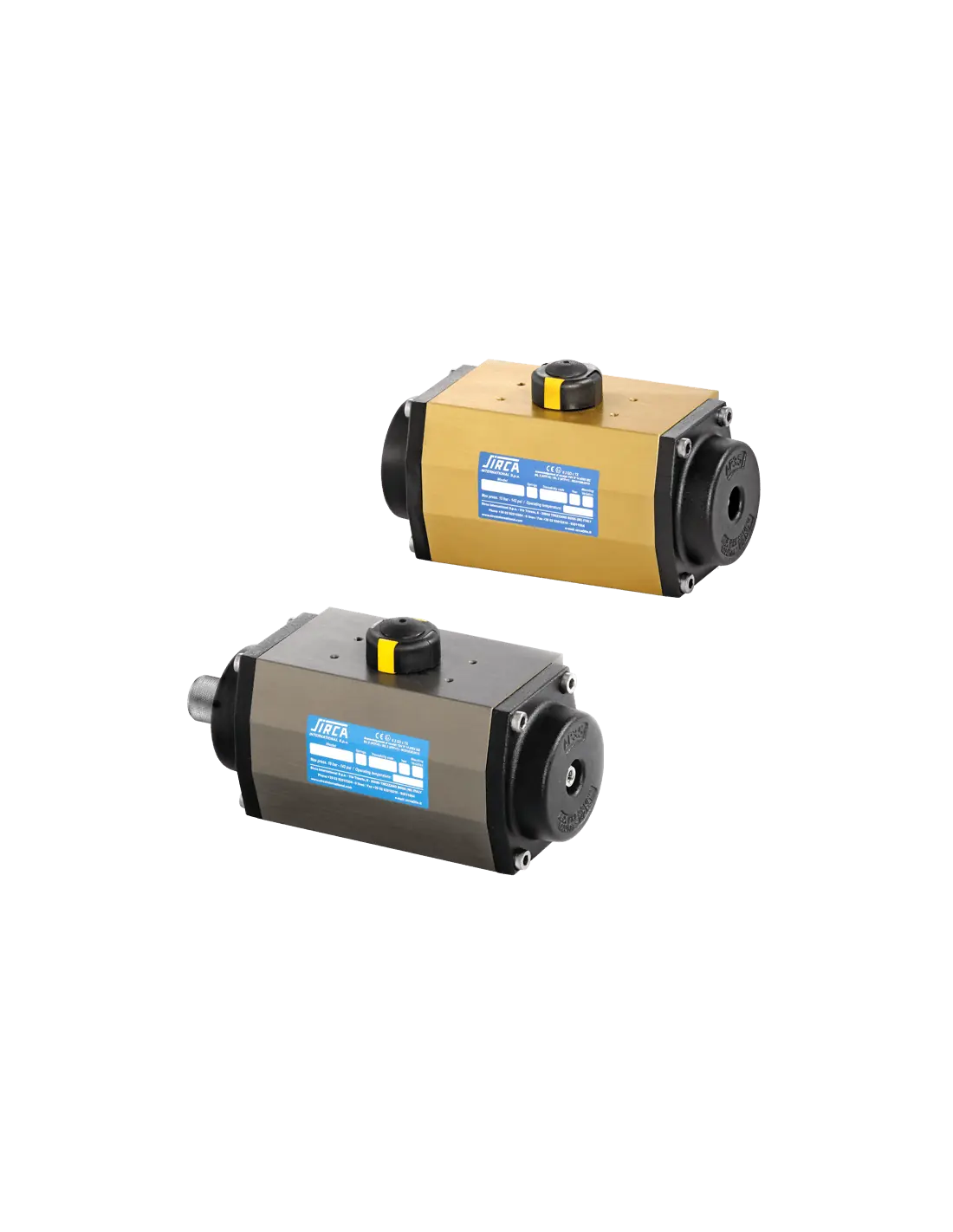

Pneumatic Rotary Actuator SIRCA AP / APM

The SIRCA AP / APM series are rack & pinion pneumatic actuators designed for 1/4-turn valves, including ball, butterfly, and plug valves. The range includes DA (double acting) and SR (spring return) variants.

Technical Operating Limits

Sizes: AP0 to AP12, piston diameters Ø32 to Ø330 mm.
Operating angle: 90°.

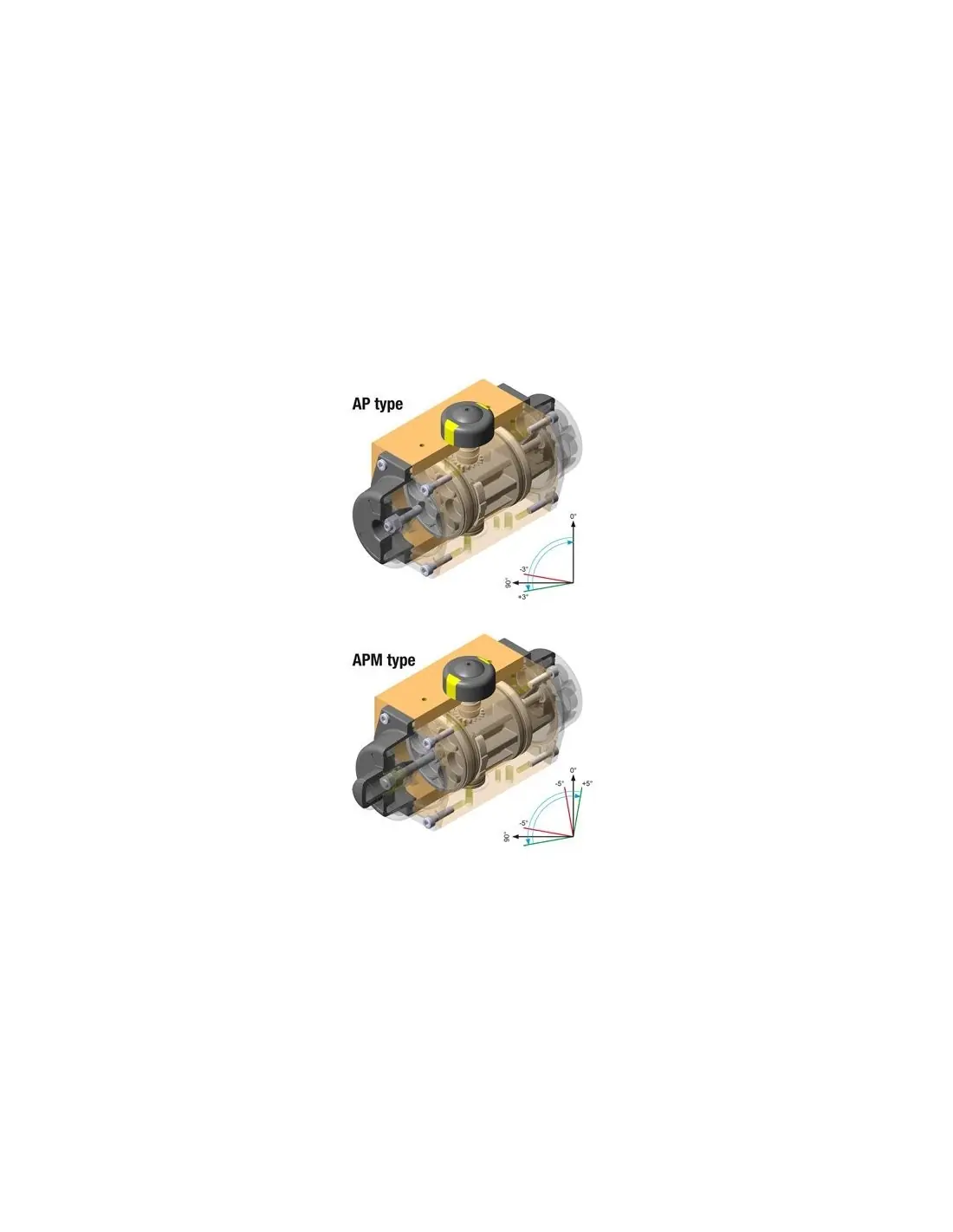

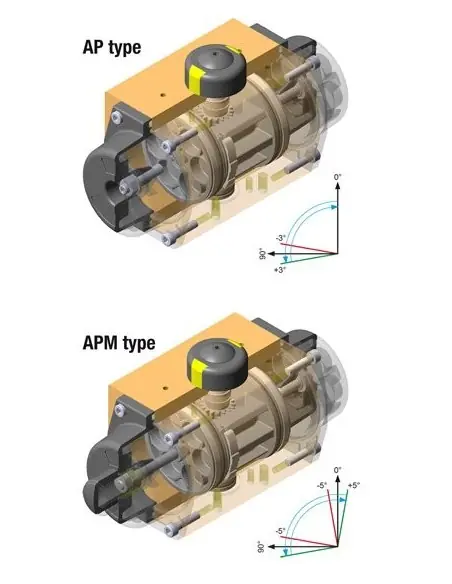

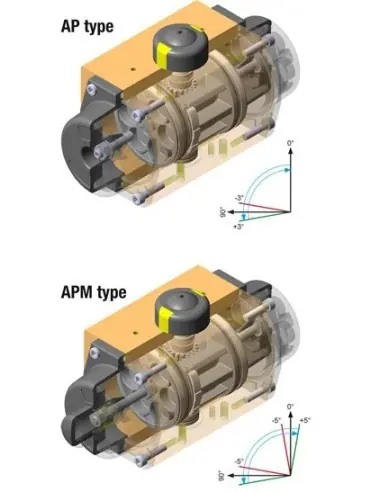

AP: travel stop adjustment at 90° open, ±3°.
APM: travel stop adjustment at both open and closed positions, ±5°.
Air supply: 2–8 bar for DA, 3–8 bar for SR.
Torque output: 2.4 to 7,500 Nm.
Ambient temperature: -20 to +80 °C (standard).

Construction and Sealing

Body is extruded aluminum with anodized or hard anodized finish. End caps and pistons are die-cast aluminum. Shaft is nickel-plated steel. Standard sealing uses NBR O-rings. Sliding and guiding rings are fitted to reduce friction. Springs are preloaded in cassettes for safer disassembly.

Standards and Interfaces

ISO 5211 / DIN 3337 for valve mounting interface.
NAMUR for solenoid valve interface.
VDI/VDE 3845 for limit switch box, positioner, or visual indicator.
UNI EN 15714-3 as design reference.
ATEX 2014/34/EU, SIL IEC 61508 / IEC 61511.
IP67 per EN 60529.

AP, APM, DA or SR Selection

Selection is based on valve torque (with safety margin), minimum available air pressure, and required fail position. DA is used where pneumatic actuation is needed in both directions. SR is used for fail-close or fail-open operation in case of air loss.

Applications

Suitable for isolation and automation in water networks, instrument air, gases, chemical auxiliary lines, HVAC, water treatment, and industrial plants. The actuator is only exposed to pneumatic air; process media compatibility concerns the valve.

FAQ

What is checked during maintenance?
Air pressure, moisture, O-rings, open/close times, travel stops, limit switches, and pneumatic connection leaks.

When is APM required?
When precise mechanical adjustment is needed at both valve end positions.

Action (Options)

Double Acting
Single Acting

Datasheet and documents

Description

Series	AP / APM
	DA Double Acting / SA Single Acting
Size range	AP0 ÷ AP12 (Ø32 mm to Ø330 mm)
Stroke	90° with single travel adjustment ±3° (AP series)
	90° with double travel adjustment ±5° (APM series)
Pressure range	2 bar ÷ 8 bar for Double Acting
	3 bar ÷ 8 bar for Single Acting
Torque range	2,4 ÷ 7500 Nm (21,4 ÷ 66875 lbf.in)
Operating temperature	-20 °C ÷ +80 °C (-4 °F ÷ +175 °F) standard
Design reference	UNI EN 15714-3, ISO 5211, VDI / VDE 3845
Flange interface	ISO 5211
Stem connection	Square or polygonal shape ISO 5211
Interface for pilot valve	NAMUR type
Accessories flange	VDI / VDE 3845, UNI EN 15714-3
Applications	They find their best application for actuation of quarter turn valves, such as: ball valve, butterfly valve, plug valve
Certifications	2014/34//UE ATEX, SIL IEC 61508 – IEC 61511
	GOST-R, CU TR 10 CU TR 32
