With the EUROBOX plastic limit switch box, we create space for long cylindrical sensors or sensors that are equipped with an M12 cable socket. We have two lengths available and can install sensors up to a length of 60 or 90mm.
Limit Switch Boxes - Standard Range - EUROBOX | Eurotec

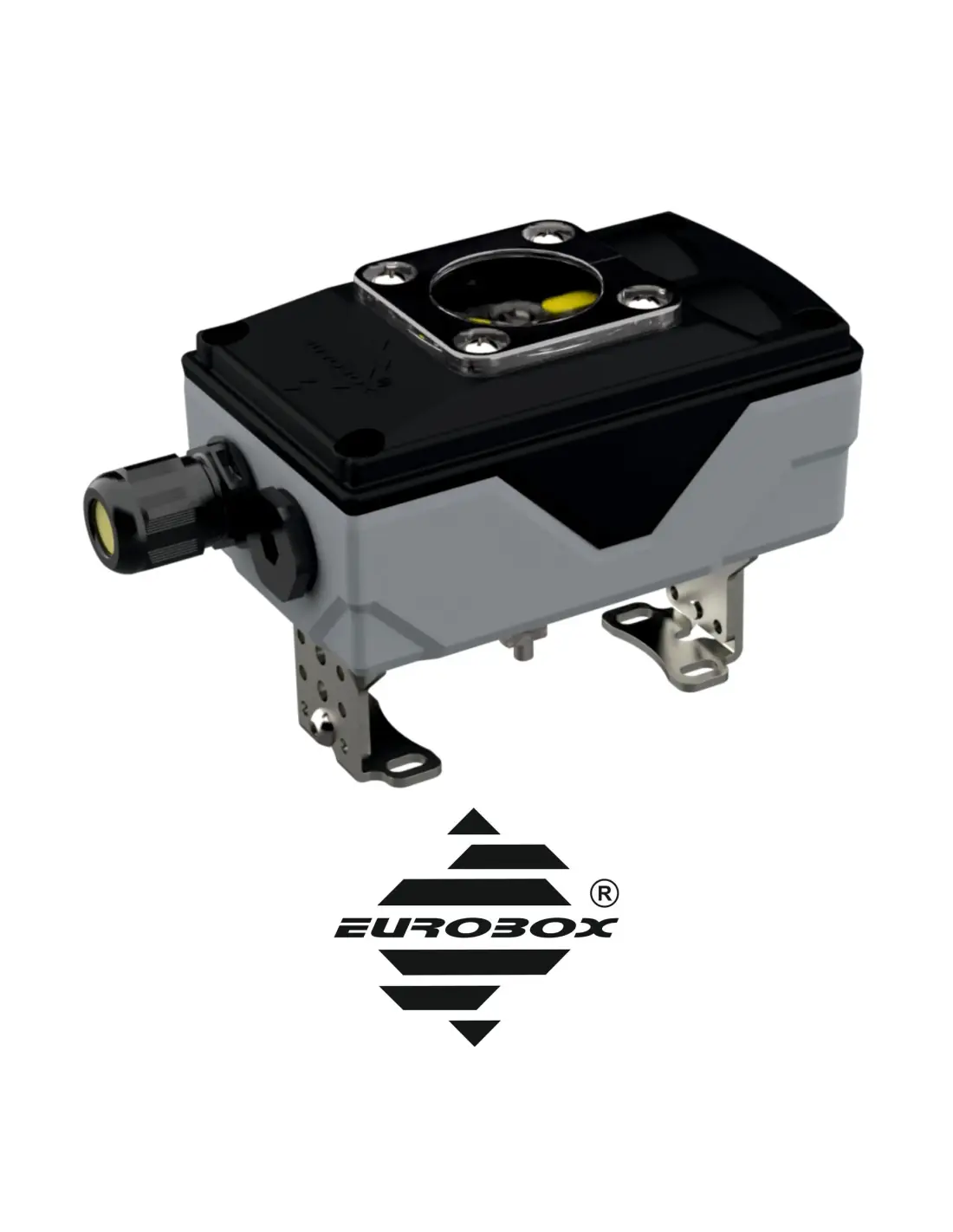

Eurotec EuroBox Limit Switch Boxes
EuroBox is a terminal switch enclosure designed for position feedback on valves equipped with pneumatic rotary actuators. It is intended for open/closed position signaling to PLC, DCS, or automation panels, and is not in contact with process media.
Construction and Mounting
- Body: PA6 polyamide; cover: polycarbonate; base/bridge: stainless steel 1.4301
- Mounting on actuators per VDI/VDE 3845
- Mounting patterns: 80×30 mm, 130×30 mm; optional 50×25 mm
- Shaft heights: 20, 30, 40, 50 mm
- Ingress protection: IP67 (DIN EN 60529)
- Ambient temperature: -25 °C to +80 °C
- Cable gland: M20×1.5 for cable Ø6–12 mm
EPK / EPL Variants
EuroBox is selected when increased internal space is required compared to standard compact terminal boxes. EPK accepts cylindrical sensors up to 60 mm; EPL accommodates longer sensors. Selection is based on part number and datasheet confirmation.
Switch and Signal Options
Depending on configuration, the enclosure can accept:
- 1–4 mechanical microswitches or V3 inductive sensors
- 1–3 slot sensors
- 1 dual sensor
- 1 potentiometer
- 1–2 pneumatic switches
Industrial Applications
Suitable for on/off butterfly and ball valves in water, air, steam, auxiliary chemical supply, and HVAC networks. Does not define valve PN/Class; selection is based on environment, sensor type and length, output signal, wiring, and actuator compatibility.
Maintenance
For outdoor installations, a venting element is recommended to prevent condensation. Lid and shaft seals should be inspected and replaced when worn, at least every 5 years.
Standards
EuroBox EPK/EPL series is included in the declaration of conformity for 2014/30/EU, 2014/35/EU, RoHS, and EN 60947-5-2. Functional safety applications reference IEC 61508 / FMEDA assessment.
Datasheet and documents
Description
Certificates
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
EAC-TR (Russia)
Our limit switch boxes are also certified according to the Russian standard EAC TR CU 004 and TR CU 012. You can download the certificate for the explosion-proof area here:
EAC approval for limit switch boxes (Ex-protected)
CCC (China)
Our limit switch boxes are also certified according to the Chinese standard CCC, CNCA-C23-01:2019. You can download the certificates here:
UKCA (England)
Our products for explosion-proof areas are also certified according to the British standard UKCA, UKSI 2016:1107.
ROHS
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
REACH
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
Regulation EC 1907/2006 (REACH)
