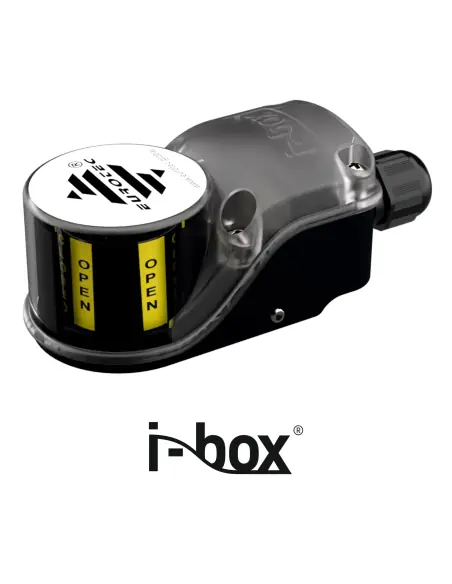

Eurotec i-box is a compact limit switch box designed for position feedback on pneumatic rotary actuators. It is intended for small actuators and installations with restricted space, allowing direct mounting on 80×30 mm drilling patterns and shaft heights of 20 or 30 mm without intermediate mounting brackets.
i-box is available with mechanical microswitches or inductive sensors. Mechanical versions support up to 2 SPDT NO/NC contacts, with silver or gold contacts depending on load current and PLC input type. Typical electrical ratings: 12–250 V AC/DC, 0.1–10 A for silver contacts; 5–250 V AC/DC, 0.01–0.1 A for gold contacts.
Inductive feedback versions are available in 2-wire and 3-wire configurations, typically 10–30 V DC or 5–60 V DC, depending on sensor type (IFM, Pepperl+Fuchs, Turck).
The unit does not contact process media and is not selected by valve PN or Class. Selection is based on sensor type, voltage, PLC input, installation space, wiring, and actuator shaft compatibility.
i-box IP / IV series is covered by the declaration of conformity for EMC 2014/30/EU, LVD 2014/35/EU, RoHS, and EN IEC 60947-5-2. FMEDA per IEC 61508 is referenced for functional safety applications.
When is i-box selected over EuroBox or Flex Box?
When the actuator is small and available installation space is limited.
Is it suitable for ATEX?
This version is for standard range, not for Ex zones.
The i-box is the smallest plastic limit switch box in our range. It is particularly suitable for confined system areas with little space and for installation on small drives with a drilling pattern of 80x30mm with a shaft height of 20 or 30mm. Thanks to its sophisticated fastening system, it can be mounted on your drive quickly and easily, without the need for a mounting bridge.
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
EAC-TR (Russia)
Our limit switch boxes are also certified according to the Russian standard EAC TR CU 004 and TR CU 012. You can download the certificate for the explosion-proof area here:
EAC approval for limit switch boxes (Ex-protected)
CCC (China)
Our limit switch boxes are also certified according to the Chinese standard CCC, CNCA-C23-01:2019. You can download the certificates here:
UKCA (England)
Our products for explosion-proof areas are also certified according to the British standard UKCA, UKSI 2016:1107.
ROHS
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
REACH
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
Regulation EC 1907/2006 (REACH)
