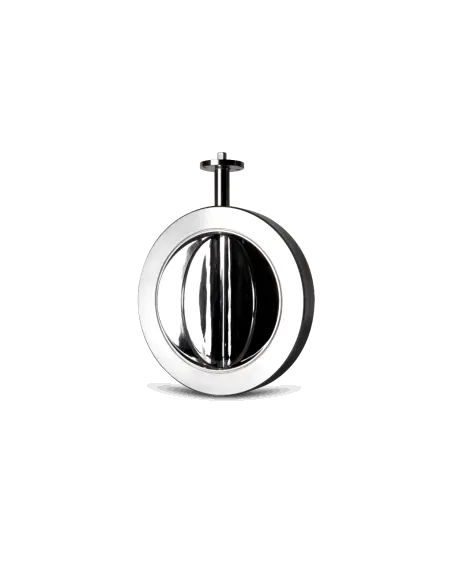

MEI BR / BRT Food-Grade Butterfly Valve

The MEI BR/BRT is a sanitary butterfly valve designed for food, beverage, and clean process fluid lines, primarily used for on/off isolation and basic throttling. The series covers DN100–DN400 and features a body/disc made of stainless steel SS 316L / EN 1.4404.

Construction and Surfaces

  • Top and bottom flange: EN 1.4404 / AISI 316L
  • Disc: EN 1.4404 / AISI 316L
  • Support: EN 1.4403 / AISI 304
  • Bushings: PTFE
  • Internal finish: mirror polished, Ra <0.1
  • External finish: satin, Ra <0.8
  • Optional: electropolished or special finish upon request

Seats and Sealing Options

The series is available with food-grade silicone seat per FDA 177.2600, EPDM seat, or PTFE shell with internal silicone or EPDM. Seat selection should be based on product, temperature, CIP chemicals, pH, fats, and contact time. Silicone/EPDM components are not interchangeable with PTFE versions.

BR and BRT Variants

The BR and BRT differ mainly in connection geometry/types. BR features SX, SR, DC, CX, CR, DR connections, while BRT offers CXTW, CRTW, DCT, CXT, CRT, DRT. Selection should align with piping standards, disassembly capability, and cleaning requirements.

Automation and Torque

The top flange is ISO 5211: F05 for DN100–DN250, F07 for DN300, and F10 for DN350–DN400. The series can be equipped with pneumatic actuators, proximity limit switches, and solenoid valves. Indicative torques are 30–200 Nm for silicone seat and 40–220 Nm for PTFE seat.

FAQ

Is it a control valve?
No. It is used for isolation or limited throttling at low ΔP.

What is checked in the order?
DN, BR/BRT type, connection, seat material, actuator, feedback, solenoid valve, and surface finish requirement.

Datasheet and documents

Description

Technical data

Edible silicone, EPDM or PTFE seat with silicone core or EPDM core

Semiflange and disc in AISI 316L

Easy to install, easy to clean especially in SR, CR and DR models

Series standard DN 100 – DN 400

Standard finish : interior polished to a mirror finish, exterior satin finish

Other finishes : on request

Wide range of accessories

All valves can be equipped with actuators, pneumatic, limit switches and solenoid valves

Dimensions

DND1D2FLAB
1001501803613111×1116
1502002304017711×1116
20031280402022416
2503003304422714×1416
3003503804625417×1719
35040043039029122×2224
400450500503162424
