Eurotec Neptun Box Ex ED / K2D / K3

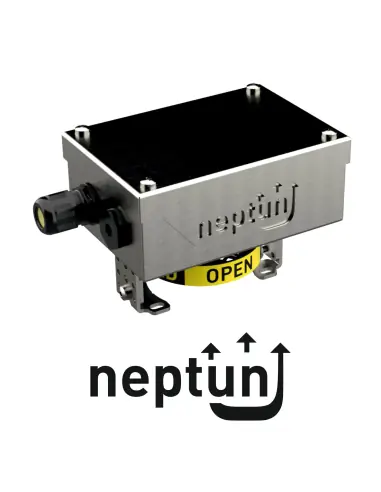

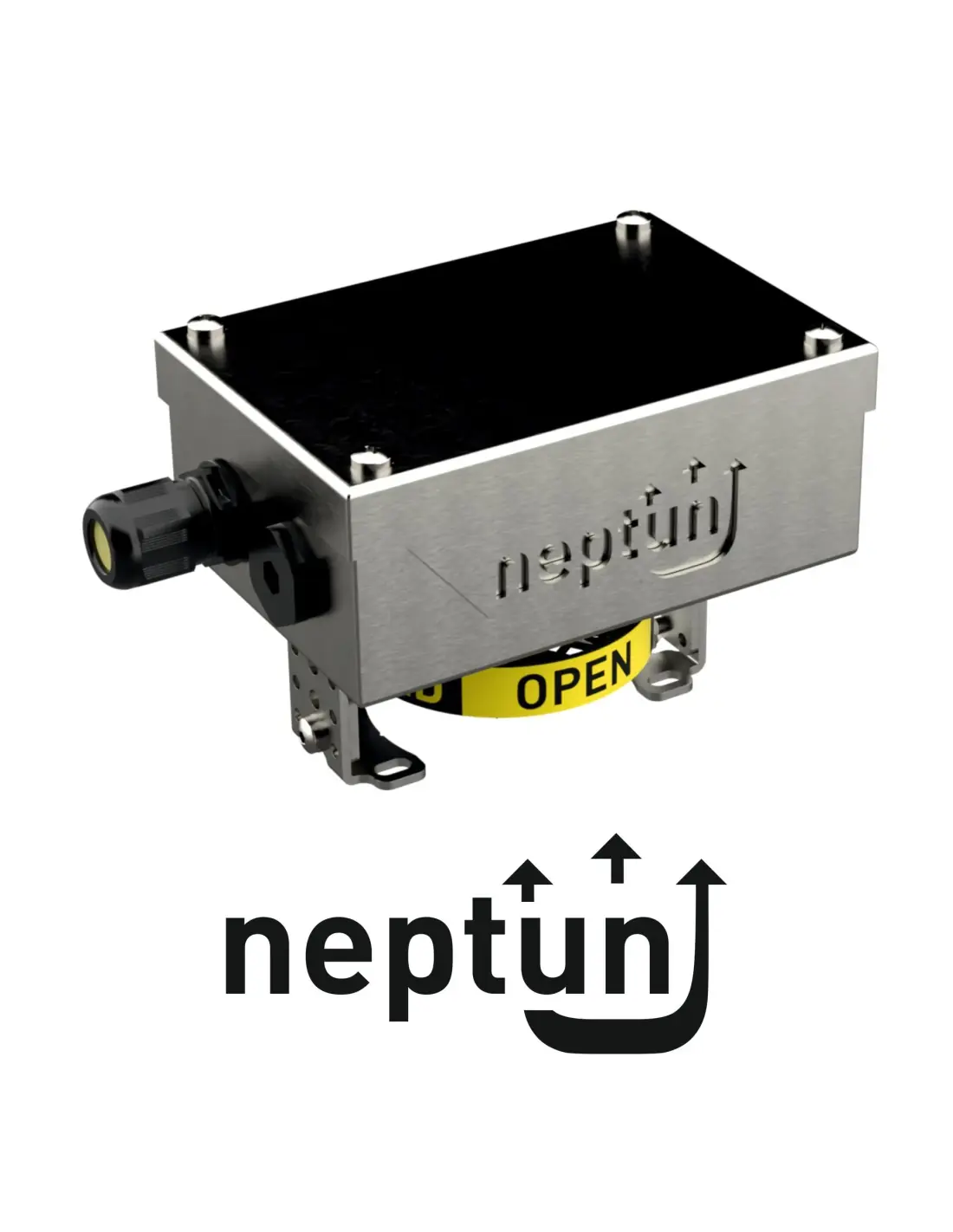

The Neptun Box Ex is a stainless steel limit switch box for position feedback on valves equipped with pneumatic rotary actuators. The shaft follows actuator rotation, and cam-operated switches provide open/closed signals to PLC, DCS, or SIS systems. The unit is not exposed to process media; selection is based on Ex zone, gas/dust group, temperature class, switch type, and actuator compatibility, not PN/Class.

Material and Installation Environment

Enclosure and external components are made from stainless steel 1.4571, suitable for offshore installations, chemical plants, saline atmospheres, sulfurous gases, and environments with ammonium nitrate.

Explosion Protection Versions

NEK…ED – Ex de / Ex t: For Zone 1, Zone 2, Zone 21, Zone 22. Marking: II 2G Ex de IIC T4–T6 Gb, II 2D Ex t IIIC T80°C–T135°C Db. Accepts 1–3 mechanical Ex-d switches.
NEK…K2D – Ex t: For dust areas Zone 21 and Zone 22. Marking: II 2D / II 3D Ex t IIIC T80°C–T135°C. Max internal power dissipation: 1 W.
NEK…K3 – Ex ec / Ex tc: For Zone 2 and Zone 22. Marking: II 3G Ex ec IIC T5–T6 Gc, II 3D Ex tc IIIC T80°C–T95°C Dc.

Temperature Ratings and Selection

ED: T6/T80°C up to +40°C, T5/T95°C up to +60°C, T4/T135°C up to +75°C. K2D: T80/T95/T135°C up to +40/+60/+75°C. Lower limit: -55°C or -25°C, depending on switch and sealing.

Mounting and Wiring

Mounting per VDI/VDE 3845 actuator interface. Wiring requires correct conductor cross-section, torque, cable gland selection, and equipotential bonding. Operation is permitted only with fully assembled enclosure; live cable disconnection is prohibited.

Typical Applications

On/off valves in refineries and chemical plants
Combustible dust systems, silos, bulk handling units
Offshore skids and coastal installations
Instrument air, water, steam, and auxiliary chemical networks

FAQ

When to select ED?
For Zone 1 or where Ex de protection for gases is required.

When to select K2D?
For Zone 21/22 with combustible dusts.

When to select K3?
For Zone 2/22, where Ex ec / Ex tc is sufficient and Zone 1 protection is not required.

Datasheet and documents

Description

Type of protection Ex de t (-ED)

The neptun Box and all external parts are made of high-quality stainless steel (1.4571) and are therefore particularly resistant to corrosion and pitting. This makes it suitable for use in offshore applications and in the chemical industry, as well as in environments with a salty atmosphere, sulphur gases, ammonia nitrate and numerous other aggressive media.

Suitable for: Zone 1, Zone 2, Zone 21, Zone 22 II 2G Ex de IIC T4-T6 Gb II 2D Ex t IIIC T80°C-T135°C Db

Type of protection Ex t (K2D)

Suitable for: Zone 21, Zone 22 II 2D Ex t IIIC T80°C-T135°C Db X II 3D Ex t IIIC T80°C-T135°C Dc X

Type of protection Ex ec / Ex tc (K3)

Suitable for: Zone 2, Zone 22 II 3G Ex ec IIC T5-T6 Gc X II 3D Ex tc IIIC T80°C-T95°C Dc X
