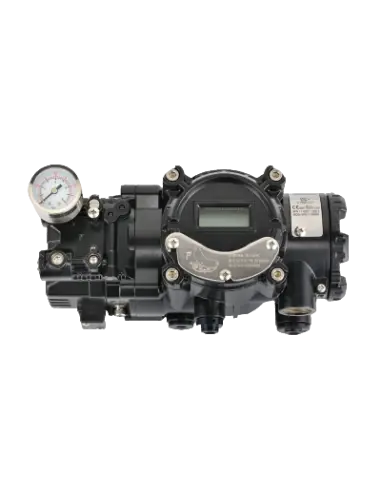

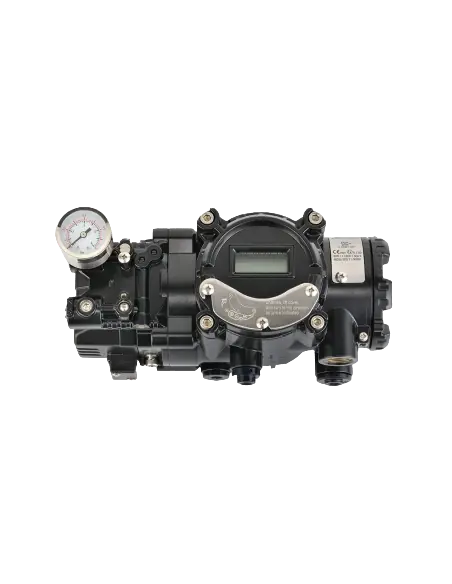

OMC YT3400R – Smart Positioner for Rotary Actuators

The OMC YT3400R is a digital electro-pneumatic positioner designed for double-acting rotary pneumatic actuators. It accepts a 4–20 mA DC control signal and modulates output air pressure to the actuator, ensuring valve position tracks the PLC/DCS setpoint. The product is classified as flameproof type with protection rating II 2 G D Ex d IIC T5–T6 per ATEX 2014/34/EU.

Technical Data

• Rotary travel: 0–90°
• Min. operating current: 3.2 mA, or 3.8 mA with HART
• Instrument air supply: 1.4–7 bar
• Pneumatic ports: 1/4" NPT
• Electrical entry: PF 1/2 / G1/2
• Enclosure protection: IP66 per EN 60529
• Linearity: ±0.5% F.S.
• Hysteresis: ±0.5% F.S.
• Repeatability: ±0.3% F.S.
• Air capacity: 70 l/min at 1.4 bar
• Air consumption: 2 l/min at 1.4 bar
• Ambient temperature: -30 to +85 °C for T5
• YT3400 housing: aluminum with anti-corrosive coating, approx. 3.4 kg

Control Functionality

YT3400R supports auto calibration, PID tuning, alarms, HART, standard linear / quick open / equal percentage and custom 16-point characterization. Additional features: tight shut-close / shut-open, split range 4–12 mA or 12–20 mA, A/M switch, and variable orifice for hunting reduction on small-volume actuators.

Applications

Used on butterfly, ball, and plug valves with rack & pinion, scotch yoke, or compound rotary actuators. Typical process media: steam, hot water, chilled water, condensate, air, and auxiliary industrial utilities. The process medium does not pass through the positioner; only instrument air is handled.

FAQ

What should be checked before selection?
0–90° travel, actuator type, fail action, air supply pressure, Ex area classification, HART, 4–20 mA feedback, and need for limit switches.

Is there a stainless steel version?
For AISI 316 housing, refer to YT3450R, which shares operating logic but uses different enclosure material.
