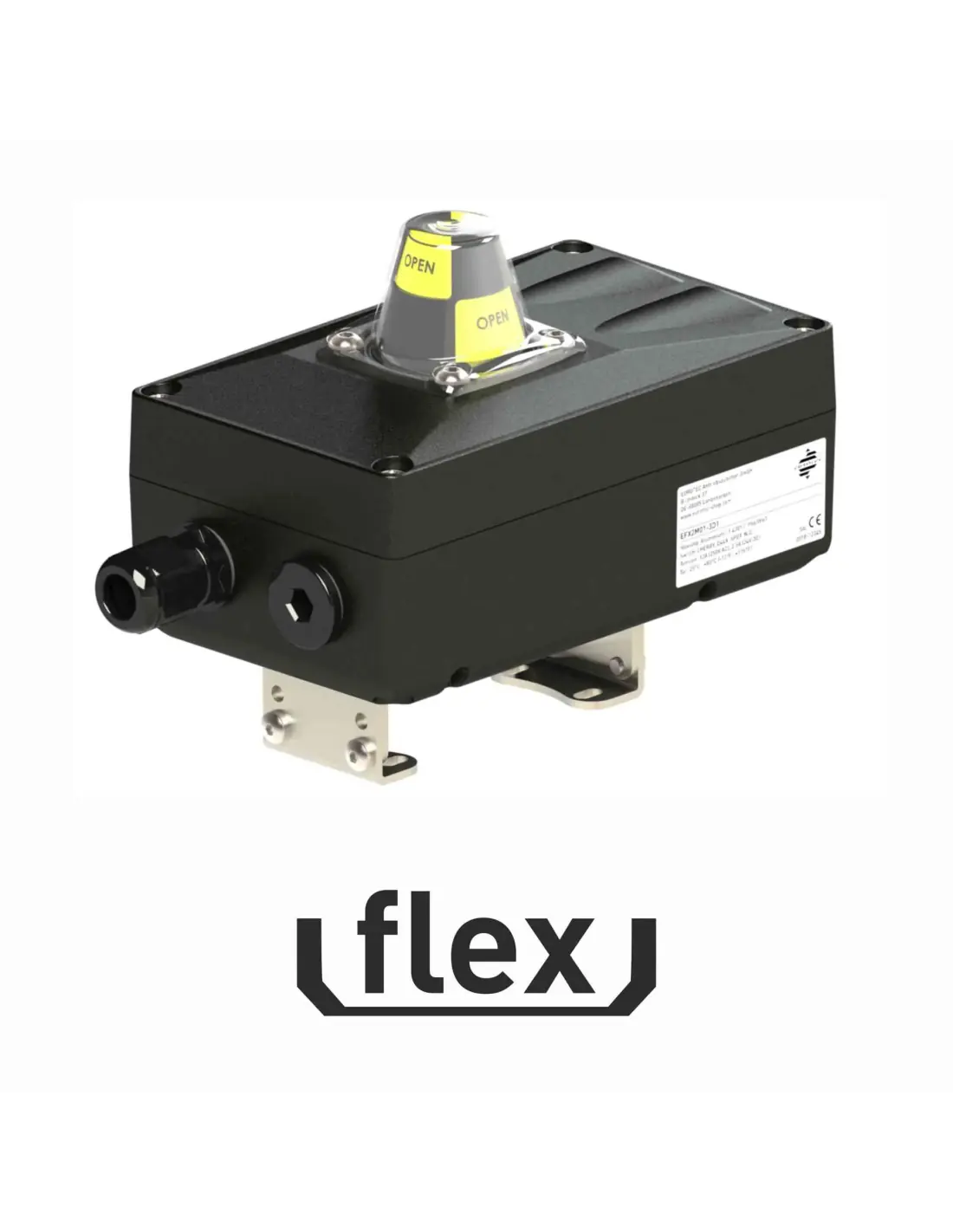

The Eurotec Flex Box EFX is a position feedback enclosure designed for valves equipped with pneumatic rotary actuators. The unit’s shaft is mechanically coupled to the actuator shaft, and internal cams actuate position switches to provide feedback signals to PLCs, DCS, or local automation panels.
The Flex Box accepts mechanical microswitches, V3 inductive sensors, slot sensors, cylindrical sensors, dual sensors, potentiometer, pneumatic feedback, or 4–20 mA output, depending on the part number. Up to 6 feedback points and 4 cable entries are available per Eurotec specification.
The unit does not contact process media and is not selected by PN or Class. Selection is based on sensor type, voltage, signal type, number of feedback points, wiring, ambient temperature, and actuator compatibility.
The Flex EFX series complies with EU 2023/1230, RoHS, EMC 2014/30/EU, LVD 2014/35/EU, and EN 60947-5-2. Functional safety is assessed per IEC 61508 (FMEDA). Seals should be replaced when worn, or at a maximum interval of 5 years.
The name flex Box stands for particularly high flexibility. Thanks to the robust, copper-free aluminum (< 0.05% copper content), it is not only suitable for harsh environmental conditions with high demands on stability and resilience, but also for applications with salty atmospheres, sulfur gases and ammonia nitrate.
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
EAC-TR (Russia)
Our limit switch boxes are also certified according to the Russian standard EAC TR CU 004 and TR CU 012. You can download the certificate for the explosion-proof area here:
EAC approval for limit switch boxes (Ex-protected)
CCC (China)
Our limit switch boxes are also certified according to the Chinese standard CCC, CNCA-C23-01:2019. You can download the certificates here:
UKCA (England)
Our products for explosion-proof areas are also certified according to the British standard UKCA, UKSI 2016:1107.
ROHS
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
REACH
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
Regulation EC 1907/2006 (REACH)
