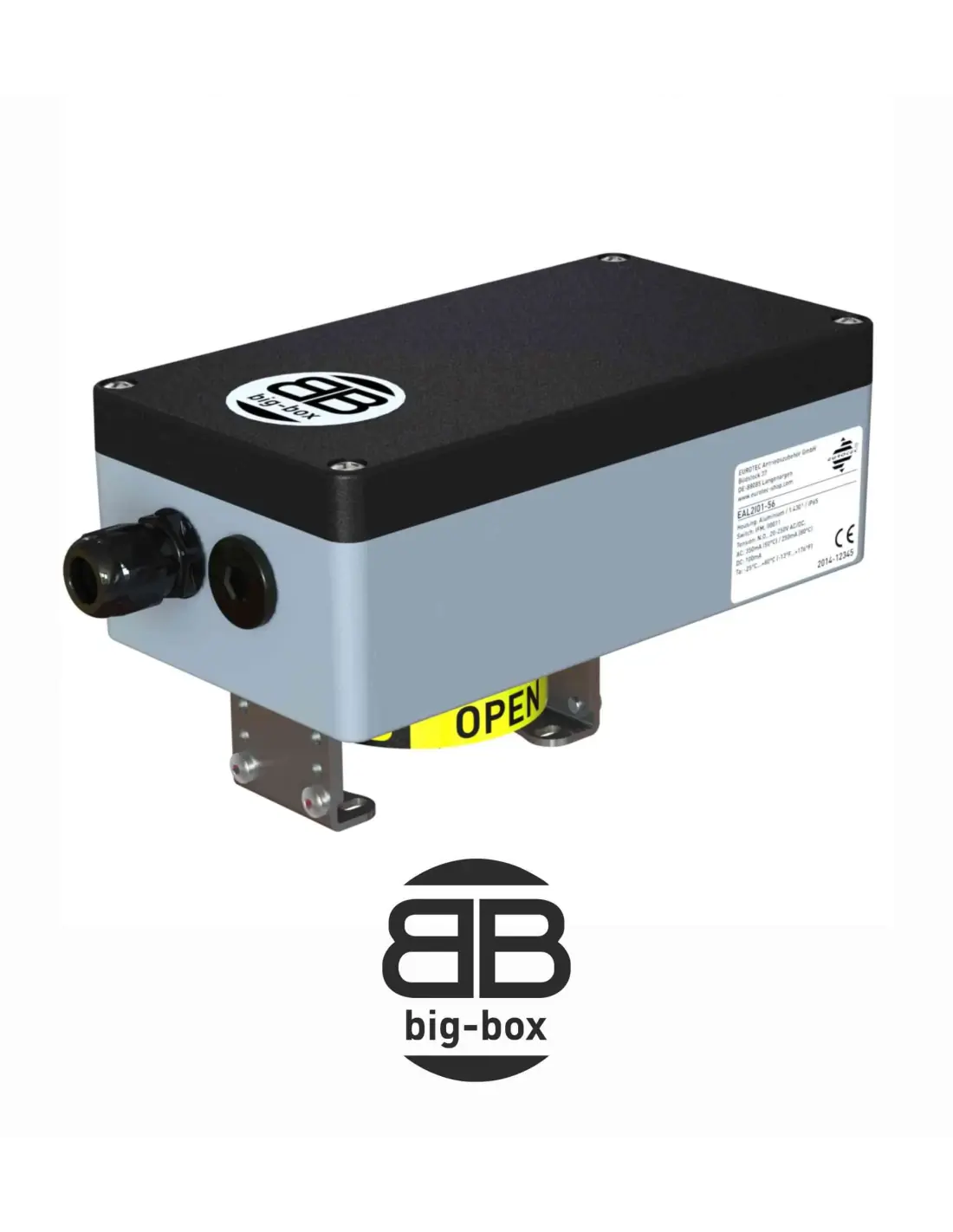

The Eurotec Big-Box EAL is a terminal switch enclosure designed for position feedback on valves equipped with pneumatic rotary actuators. It is specified when increased internal space is required for M30 cylindrical sensors, extended-length sensors, or mechanical position switches compliant with DIN EN 50041.
The enclosure transmits open/closed electrical signals to PLC, DCS, or automation panels. It mounts directly to the actuator shaft; cams actuate internal microswitches or sensors for position feedback.
The EAL version accommodates 1–2 mechanical position switches, a dual sensor, or 1–2 cylindrical sensors up to Ø30 mm and 118 mm length. The enclosure does not contact process media; selection is based on environment, signal type, wiring, and actuator compatibility, not PN/Class.
Declaration of conformity covers 2014/30/EU, 2014/35/EU, RoHS 2015/863, EN IEC 60947-5-2, and EN IEC 63000. Functional safety assessment per IEC 61508 is available for the Big-Box EAL series.
Is it suitable for ATEX zones?
EAL is intended for standard industrial environments without explosive atmospheres.
When is Big-Box preferred over smaller enclosures?
When M30 sensors, large DIN EN 50041 switches, or increased wiring space are required.
As the name suggests, the big-box is our largest limit switch box. We have to use this aluminum housing when large cylindrical sensors with M30 thread or a special length have to be installed, as well as when you want large mechanical position switches according to DIN EN 50041, such as those manufactured by Schmersal, Siemens or Bernstein.
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
EAC-TR (Russia)
Our limit switch boxes are also certified according to the Russian standard EAC TR CU 004 and TR CU 012. You can download the certificate for the explosion-proof area here:
EAC approval for limit switch boxes (Ex-protected)
CCC (China)
Our limit switch boxes are also certified according to the Chinese standard CCC, CNCA-C23-01:2019. You can download the certificates here:
UKCA (England)
Our products for explosion-proof areas are also certified according to the British standard UKCA, UKSI 2016:1107.
ROHS
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
REACH
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
Regulation EC 1907/2006 (REACH)
