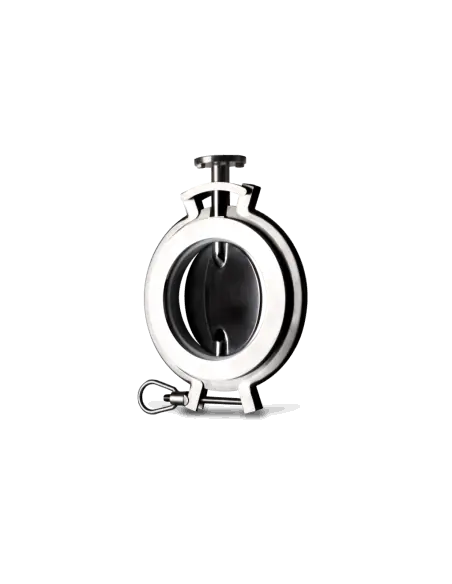

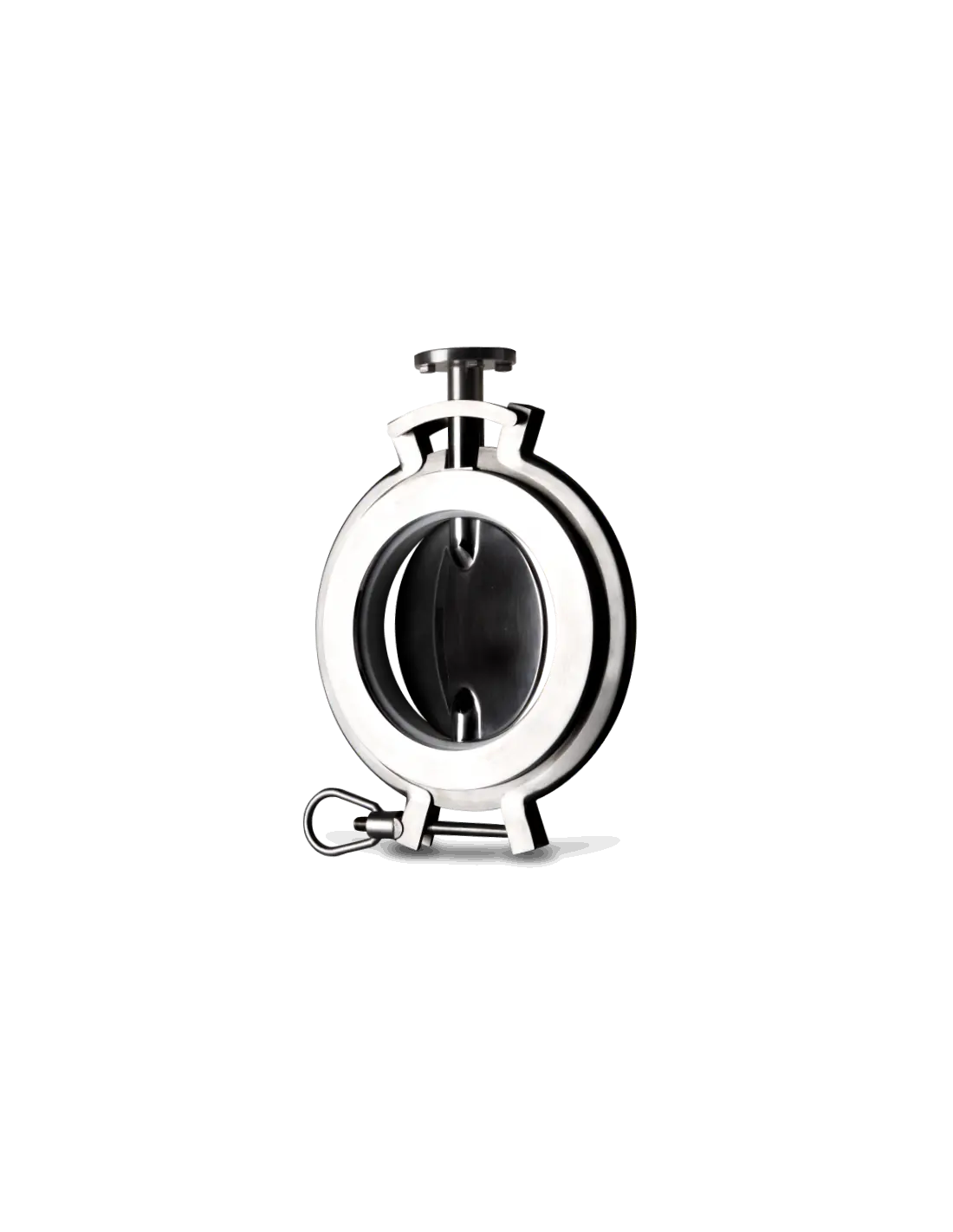

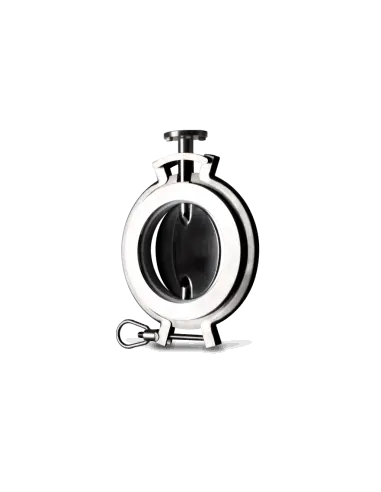

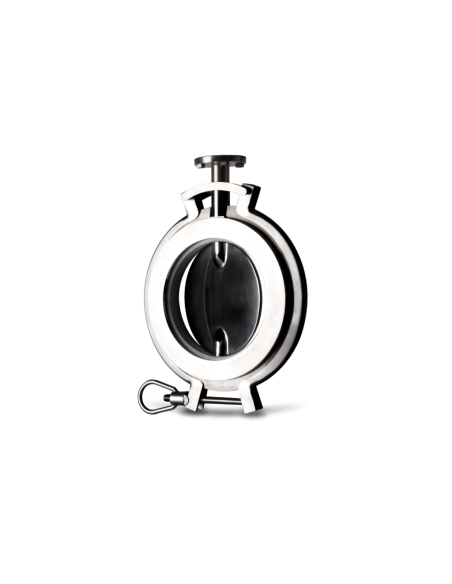

MEI BV / BVT Food Grade Butterfly Valve

The MEI BV/BVT is a sanitary butterfly valve designed for food, beverage, and clean process fluid lines. The series covers DN100–DN400 and is primarily used for on/off isolation or simple throttling at low differential pressure. It should not be considered a precision control valve.

Construction and Materials

  • Body / semiflanges: AISI 316L / EN 1.4404
  • Disc: AISI 316L / EN 1.4404
  • Support: AISI 304 / EN 1.4403
  • Bushings: PTFE
  • Seat: food grade silicone FDA 177.2600, EPDM or PTFE shell with internal silicone or EPDM.

The internal finish is mirror polished, with an external satin finish. The technical sheet specifies Ra <0.1 internally and Ra <0.8 externally, with electropolishing or special finishing available upon request.

BV and BVT Variants

The BV/BVT differentiation pertains to geometry and connection types. For BV, connections include SX, SR, DC, CX, CR, DR, while for BVT, connections include CXTW, CRTW, DCT, CXT, CRT, DRT. Final selection should be based on piping standards, disassembly method, and cleaning requirements.

Actuation

The series features a top flange ISO 5211: F05 for DN100–DN250, F07 for DN300, and F10 for DN350–DN400. It can be equipped with pneumatic actuators, proximity limit switches, and solenoid valves. Actuator torque selection ranges from 20–185 Nm for silicone seat and 40–190 Nm for PTFE seat.

Applications

Suitable for product lines, auxiliary clean fluids, CIP-compatible installations, and sanitary networks requiring stainless steel contact surfaces. For acidic products, fats, high temperature, or aggressive cleaners, seat material should be verified.

FAQ

What should be confirmed in the order?
DN, BV/BVT connection type, seat material, actuator, feedback, solenoid valve, and finish requirement.

Are silicone/EPDM components interchangeable with PTFE?
No. The technical sheet states that silicone/EPDM components are not interchangeable with the PTFE version.

Datasheet and documents

Description

Technical data

Edible silicone, EPDM or PTFE seat with silicone core or EPDM core

Semiflange and disc in AISI 316L

Easy installation, easy to clean (especially in SR, CR and DR models)

Series standard DN 100 – DN 400

Standard finish : interior polished to a mirror finish, exterior satin finish

Other finishes : on request

All valves can be equipped with pneumatic actuators, limit switches and solenoid valves

Dimensions

DND1D2FLAB
1001501803613111×1116
1502002304017711×1116
2002502804020211×1116
2503003304422714×1416
3003503804625417×1719
3504004304629122×2224
4004505005031622×2224
