Eurotec D-Box Ex d – Flameproof Switchbox for Valve Position Feedback

The Eurotec D-Box is a position feedback enclosure for valves equipped with pneumatic rotary actuators. The housing is Ex d / flameproof and is specified where electrical contacts or sensors must operate within a certified explosion-proof enclosure. The unit provides open/closed signals to PLC, DCS, or SIS systems and does not come into contact with process media.

Explosion Protection

The D-Box is suitable for installations in Zone 1, Zone 2, Zone 21, and Zone 22, depending on final configuration. Markings include:

II 2G Ex d / Ex db IIC T6 Gb
II 2D Ex tb IIIC T85°C Db
Variants with Ex db ia IIC T6 Gb are available for intrinsically safe sensor circuits

Certification: EPS 16 ATEX 1 031 X and IECEx EPS 16.0011 X, compliant with EN/IEC 60079-0, 60079-1, and 60079-31.

Construction

The enclosure is made from copper-free aluminium (Cu <0.05%). Stainless steel 1.4401 versions are available for saline, sulphurous, or ammonia-rich environments.

Switch and Sensor Options

Depending on part number, the D-Box can accommodate:

1–4 mechanical microswitches
1–4 V3 inductive sensors
1–3 slot sensors
1–2 cylindrical sensors

Certified electrical limits: up to 250 V, up to 10 A, depending on installed switch/sensor. Permitted ambient temperature: -55 °C to +75 °C, depending on sealing.

Selection Criteria

Selection is not based on valve PN/Class. Consider:

Ex zone and gas/dust group
T-class and maximum surface temperature
Switch type and PLC input load
Ex d cable gland type
Mechanical compatibility with actuator (VDI/VDE 3845)

Installation and Maintenance

Only approved Ex d cable glands are used. Unused entries must be sealed with certified blind plugs. Flamepath repairs require manufacturer consultation.

Datasheet and documents

Description

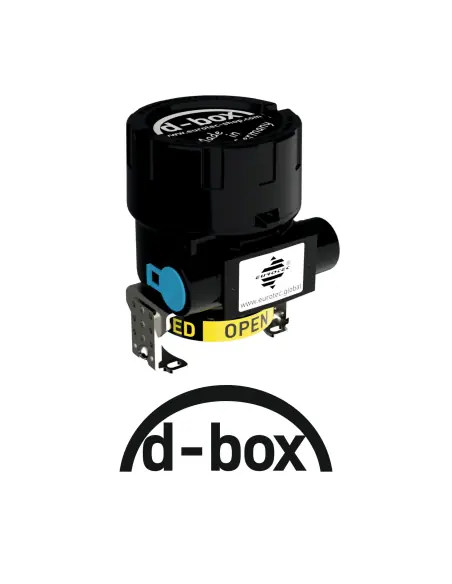

Our flameproof Ex d housing is made of copper-free aluminum ( 0.05% copper content) and is therefore suitable not only for harsh environmental conditions with high demands on stability and resilience, but also for applications with salty atmospheres, sulfur gases and ammonia nitrate.

Suitable for: Zone 1, Zone 2, Zone 21, Zone 22 II 2G Ex db IIC T6 Gb II 2G Ex db ia IIC T6 Gb II 2D Ex tb IIIC T85°C Db

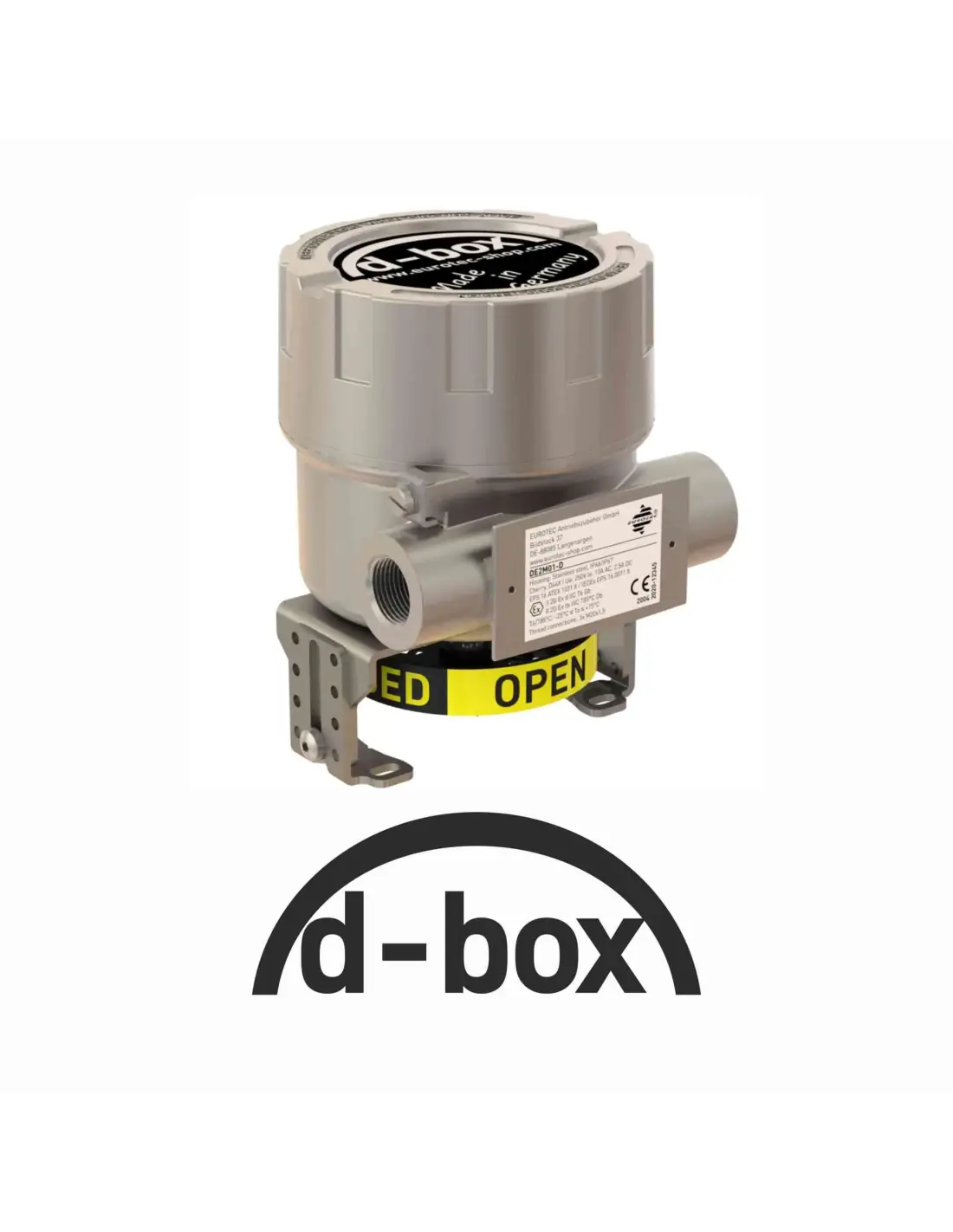

Our pressure-encapsulated Ex d housing is also available in stainless steel (1.4401), making it suitable not only for harsh environmental conditions with high demands on stability and resilience, but also for applications with salty atmospheres, sulfur gases and ammonia nitrate.

Suitable for: Zone 1, Zone 2, Zone 21, Zone 22 II 2G Ex db IIC T6 Gb II 2G Ex db ia IIC T6 Gb II 2D Ex tb IIIC T85°C Db
