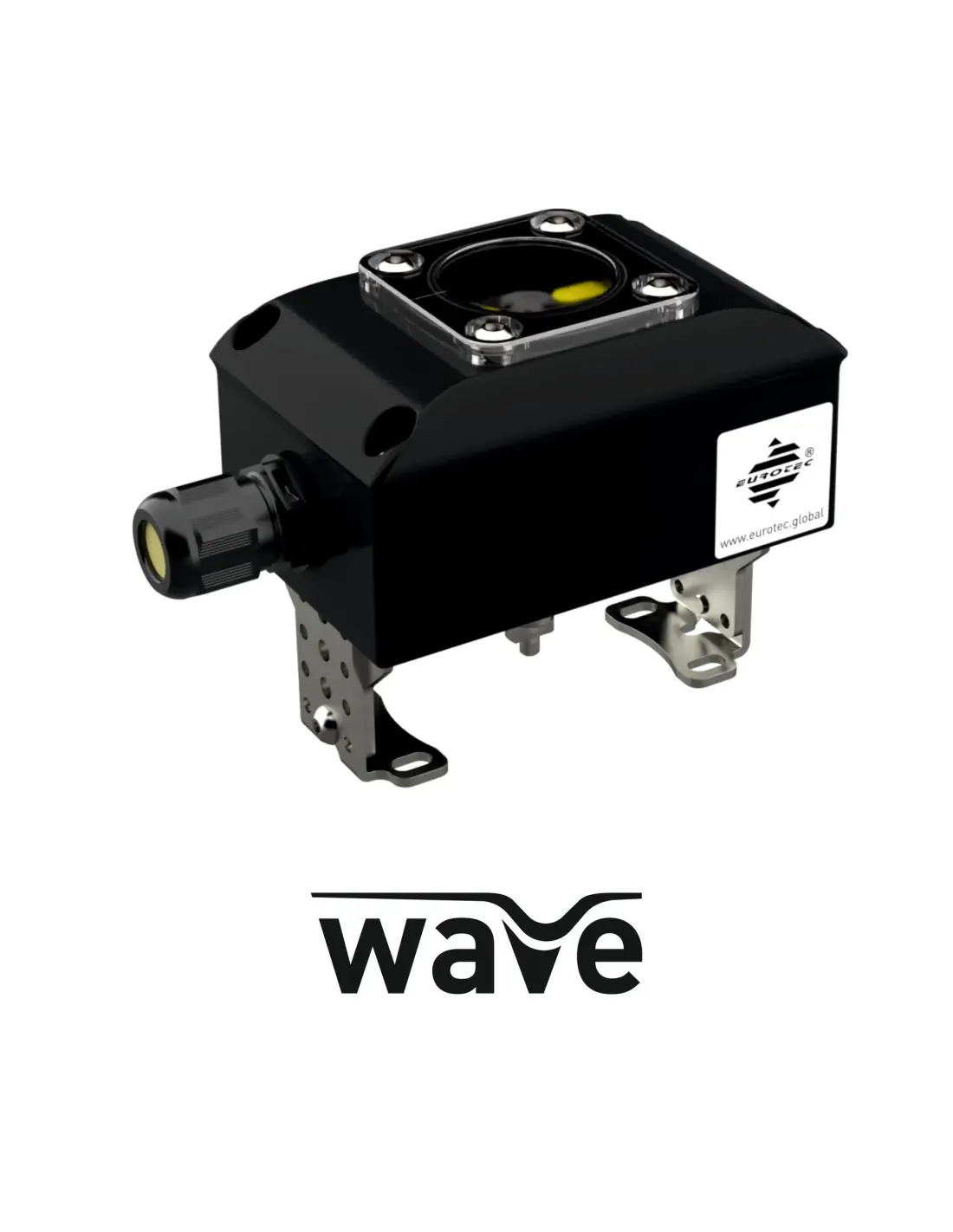

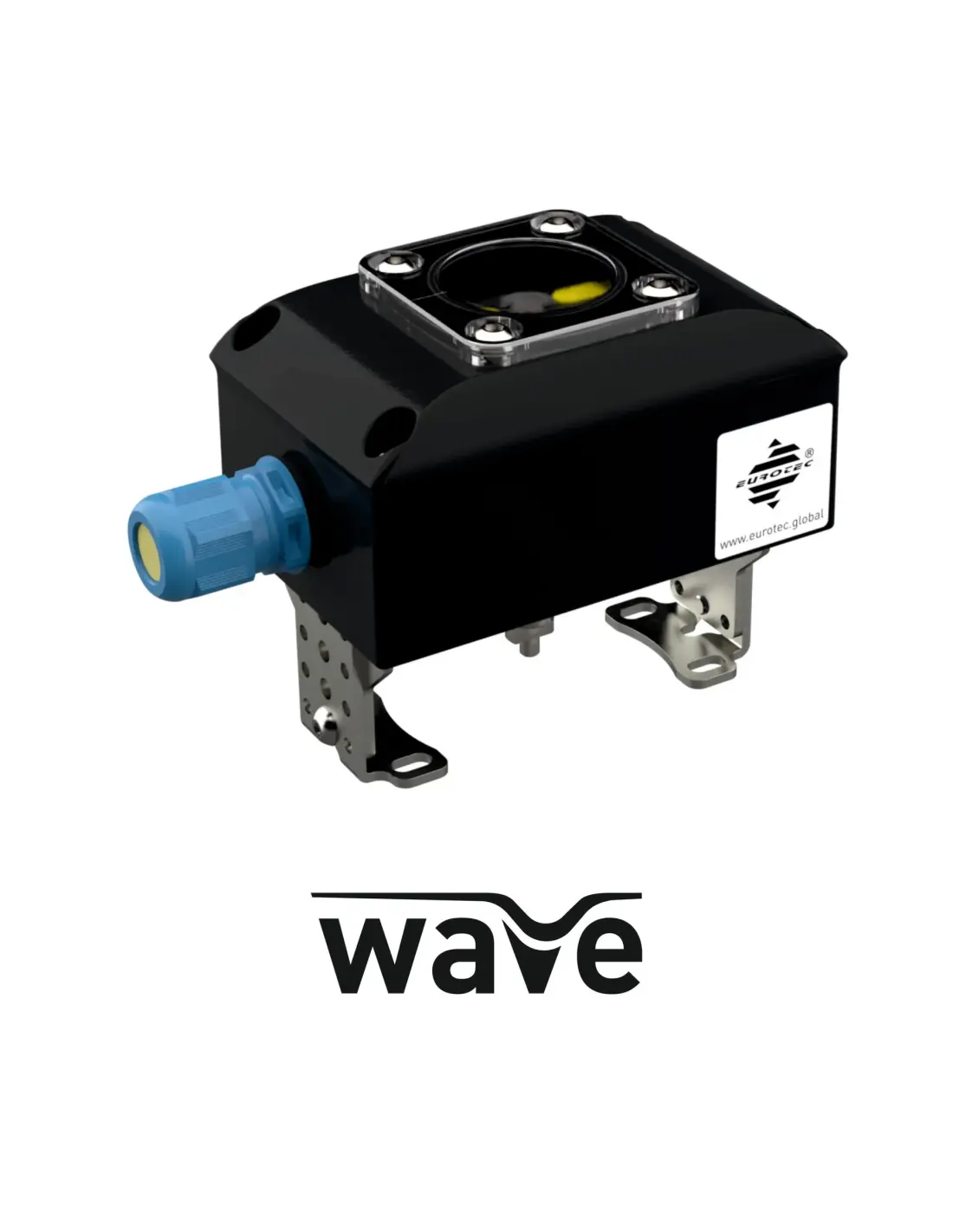

Eurotec Wave Box Ex ED / K2D / K3

The Wave Box Ex is a limit switch box designed for mounting on quarter-turn pneumatic actuators (90°) used with industrial valves. The shaft of the box couples directly to the actuator shaft, and internal adjustable cams actuate position switches to provide open/closed feedback signals to PLC, DCS, or SIS systems. The enclosure does not contact process media, so selection is independent of valve pressure rating (PN/Class).

Explosion Protection Variants

ED – Ex db eb / Ex tb: For Zone 1, 2, 21, 22. Marking: II 2G Ex db eb IIC/IIB T6 Gb and II 2D Ex tb IIIC T80°C Db. Accepts 1–3 mechanical Ex d switches.
K2D – Ex tb / Ex tc: For Zone 21 and 22 (combustible dust). Marking: II 2D Ex tb IIIC T80°C Db and II 3D Ex tc IIIC T80°C Dc.
K3 – Ex ec / Ex tc: For Zone 2 and 22. Marking: II 3G Ex ec IIC T6 Gc and II 3D Ex tc IIIC T80°C Dc. K3 variant: Umax 60 V AC/DC, Pmax 2.5 W.

Construction and Sensor Options

Available with plastic or aluminum enclosure. Adjustable mounting bridge in reinforced plastic or stainless steel. Depending on variant, supports mechanical microswitches, inductive V3 sensors, slot sensors, cylindrical sensors, dual sensors, or reed switches.

Operating Temperature

For ED and K2D: Vestamid housing -20 to +40°C; aluminum up to +60°C. Lower limits: -55 / -40 / -20°C depending on material, sealing, and switch type. K3 follows similar logic.

Applications

Butterfly and ball valves (on/off) in ATEX zones
Refineries, chemical plants, bulk handling units, silos
Position feedback for instrument air, water, steam, auxiliary chemicals

FAQ

When to select ED?
For Zone 1 or where Ex db eb protection for gases is required.

When to select K2D?
For dust areas Zone 21/22.

When to select K3?
For Zone 2/22 where Ex ec / Ex tc protection is sufficient.

Datasheet and documents

Description

Type of protection Ex de t (-ED)

The wave box is our classic and an absolute all-rounder. We can install everything from mechanical microswitches to inductive sensors, slot initiators, double sensors or reed switches. It is available in plastic and aluminum and comes with an adjustable mounting bridge, optionally made of glass fiber reinforced plastic or stainless steel.

Suitable for: Zone 1, Zone 2, Zone 21, Zone 22 II 2G Ex db eb IIC/IIB T6 Gb II 2D Ex tb IIIC T80°C Db

Type of protection Ex t (K2D)

Suitable for: Zone 21, Zone 22 II 2D Ex tb IIIC T80 °C Db II 3D Ex tc IIIC T80 °C Dc

Type of protection Ex ec / Ex tc (K3)

Suitable for: Zone 2, Zone 22 II 3G Ex ec IIC T6 Gc X II 3D Ex tc IIIC T80°C Dc X
