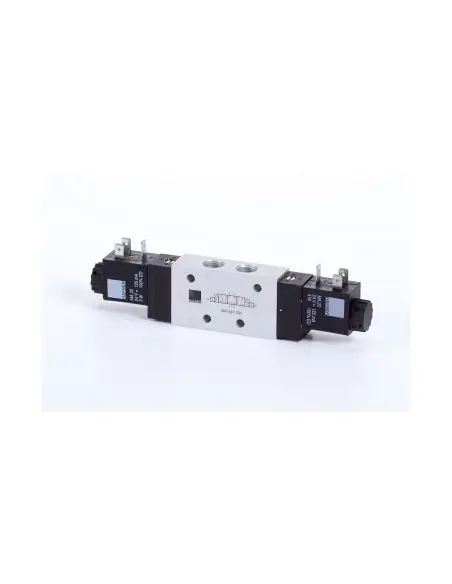

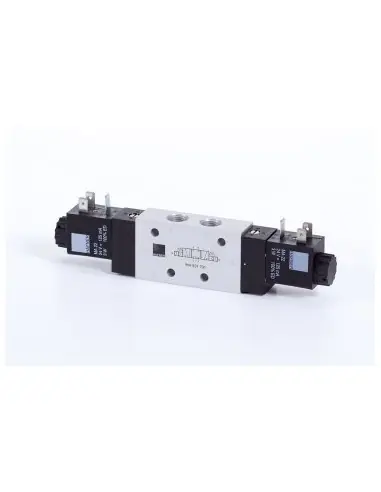

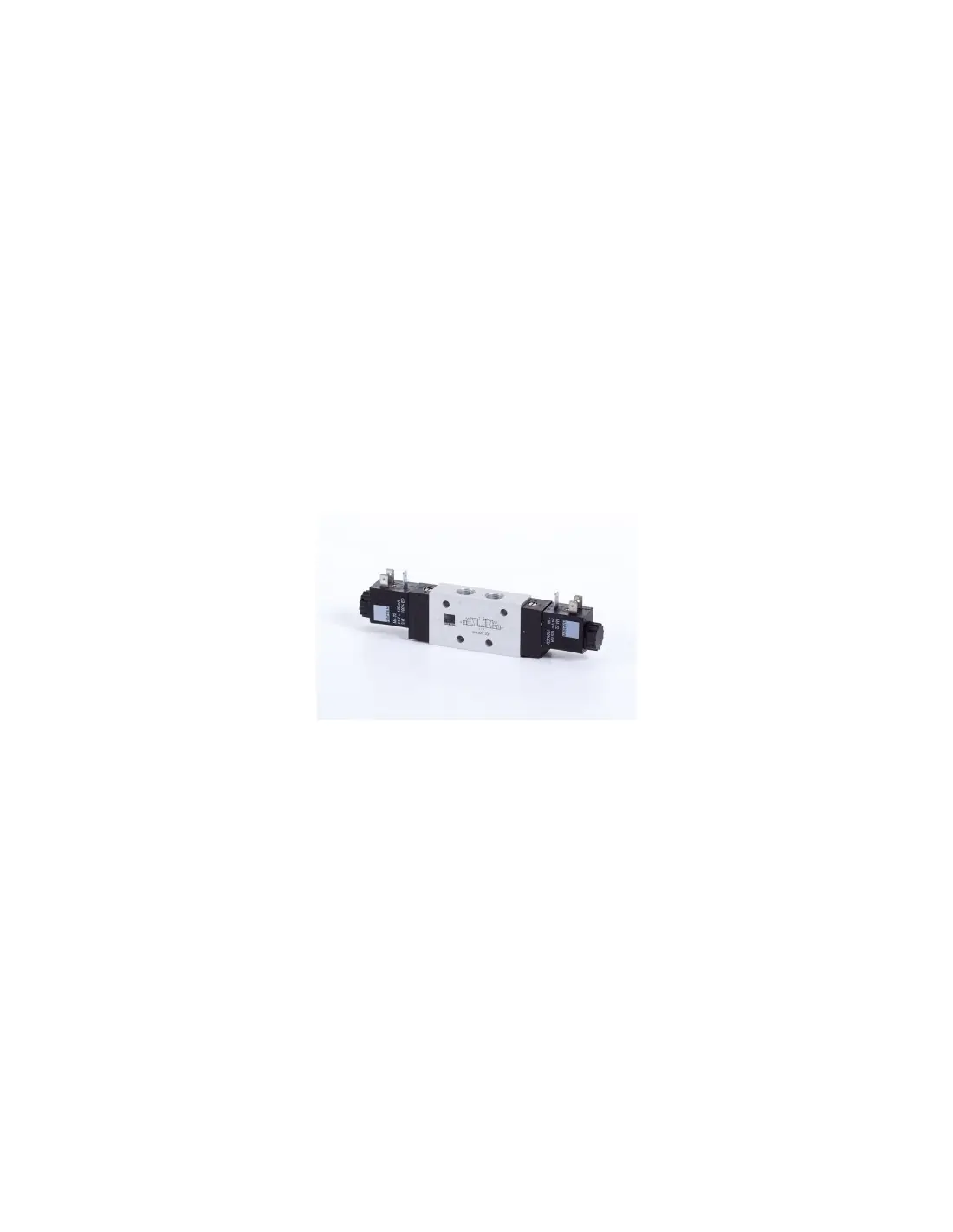

Solenoid Valves - 5/3-way valves | Hafner

Name: Solenoid Valves - 5/3-way valves | Hafner
Brand: Hafner
SKU: Solenoid Valves - 5/3-way valves | Hafner

Experience Superior Control: Solenoid Valves - 5/3-way valves | Hafner

Unlock advanced efficiency and smooth automation with the Solenoid Valves - 5/3-way valves | Hafner—built for industrial environments that demand reliability and smart handling. These state-of-the-art valves are engineered to optimize your pneumatic systems, offering effortless, precise control for complex machinery and processes.

Features & Benefits of Solenoid Valves - 5/3-way valves | Hafner

Advanced Versatility: Easily manage airflow direction with 5 ports and 3 unique positions, perfect for tasks that require stopping, holding, or switching motions.
Exceptional Durability: Crafted with robust materials, these valves stand up to tough industrial conditions, providing long-lasting dependability day in, day out.
Simple Integration: Designed for quick installation and minimal setup, they plug seamlessly into existing pneumatic lines, cutting downtime and maintenance.
Reliable Performance: Get accurate control every time—with a responsive solenoid operation that ensures smooth transitions and less mechanical wear.
Safety First: The 5/3-way design includes a central position that isolates or exhausts ports, helping protect machinery and operators in critical situations.
Energy Efficient: Efficient airflow paths mean less energy loss, helping you reduce operational costs without sacrificing power or speed.

With Solenoid Valves - 5/3-way valves | Hafner, automation becomes simpler and safer. The user-friendly design means you do not need special skills to operate or maintain these valves. Just connect, and you’re ready to enhance productivity, whether you need to stop a cylinder position safely or change directions instantly.

Enjoy peace of mind knowing your system is equipped to handle sudden stops, pressure changes, and high cycle rates. The reliable construction and clear operational feedback allow for easy troubleshooting, so your workflows stay on track.

If you want to boost efficiency, minimize downtime, and achieve total control in your industrial setting, choose the Solenoid Valves - 5/3-way valves | Hafner. Simple, strong, and built for the busy modern workplace.

Datasheet and documents

Description

MMD10 | In-line valves

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MMD 531 301	M 5	230 l/min	3...8 bar	5/3-Wege \| Mittelstellung geschlossen	0,6 W
MMD 531 341	Ø 4	230 l/min	3...8 bar	5/3-Wege \| Mittelstellung geschlossen	0,6 W
MMD 532 301	M 5	230 l/min	3...8 bar	5/3-Wege \| Mittelstellung entlüftet	0,6 W
MMD 532 341	Ø 4	230 l/min	3...8 bar	5/3-Wege \| Mittelstellung entlüftet	0,6 W
MMD 533 301	M 5	230 l/min	3...8 bar	5/3-Wege \| Mittelstellung belüftet	0,6 W
MMD 533 341	Ø 4	230 l/min	3...8 bar	5/3-Wege \| Mittelstellung geschlossen	0,6 W

MD16 | In-line valves

Solenoid valve | spring return to middle position | with manual override | centre closed

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 531 301	M 5	280 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA
MD 531 341	Ø 4	280 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA
MD 531 401	G 1/8"	450 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA
MD 531 461	Ø 6	450 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA

Solenoid valve | spring return to middle position | with manual override | centre exhausted

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 532 301	M 5	280 l/min	3...10 bar	5/3-way \| centre exhausted	1,8 W / 3 VA
MD 532 341	Ø 4	280 l/min	3...10 bar	5/3-way \| centre exhausted	1,8 W / 3 VA
MD 532 401	G 1/8"	450 l/min	3...10 bar	5/3-way \| centre exhausted	1,8 W / 3 VA
MD 532 461	Ø 6	450 l/min	3...10 bar	5/3-way \| centre exhausted	1,8 W / 3 VA

Solenoid valve | spring return to middle position | with manual override | centre pressurised

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 533 301	M 5	280 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA
MD 533 341	Ø 4	280 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA
MD 533 401	G 1/8"	450 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA
MD 533 461	Ø 6	450 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA

MH | In-line valves

Solenoid valve | spring return to middle position | with manual override | centre closed

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 531 501	G 1/8"	650 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 701	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 801	G 1/4"	1450 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 101	G 3/8"	2250 l/min	1,5...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 121	G 1/2"	3000 l/min	1...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 181	G 3/4"	6000 l/min	1...10 bar	5/3-way \| centre closed	3 W / 5 VA

Solenoid valve | spring return to middle position | with manual override | centre exhausted

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 532 501	G 1/8"	650 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 701	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 801	G 1/4"	1450 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 101	G 3/8"	2250 l/min	1,5...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 121	G 1/2"	3000 l/min	1...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 181	G 3/4"	6000 l/min	1...10 bar	5/3-way \| centre exhausted	3 W / 5 VA

Solenoid valve | spring return to middle position | with manual override | centre pressurised

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 533 501	G 1/8"	650 l/min	3...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 701	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 801	G 1/4"	1450 l/min	3...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 101	G 3/8"	2250 l/min	1,5...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 121	G 1/2"	3000 l/min	1...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 181	G 3/4"	6000 l/min	1...10 bar	5/3-way \| centre pressurized	3 W / 5 VA

Solenoid valve with external pilot feed | spring return to middle position | with manual override | centre closed

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Port size external pilot feed	Function	Power consumption
MEH 531 501	G 1/8"	650 l/min	1...10 bar	3...10 bar	M 5	5/3-way \| centre closed	3 W / 5 VA
MEH 531 701	G 1/4"	1250 l/min	1...10 bar	3...10 bar	M 5	5/3-way \| centre closed	3 W / 5 VA
MEH 531 801	G 1/4"	1450 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre closed	3 W / 5 VA
MEH 531 101	G 3/8"	2250 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre closed	3 W / 5 VA
MEH 531 121	G 1/2"	3000 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre closed	3 W / 5 VA
MEH 531 181	G 3/4"	6000 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre closed	3 W / 5 VA

Solenoid valve with external pilot feed | spring return to middle position | with manual override | centre exhausted

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Port size external pilot feed	Function	Power consumption
MEH 532 501	G 1/8"	650 l/min	1...10 bar	3...10 bar	M 5	5/3-way \| centre exhausted	3 W / 5 VA
MEH 532 701	G 1/4"	1250 l/min	1...10 bar	3...10 bar	M 5	5/3-way \| centre exhausted	3 W / 5 VA
MEH 532 801	G 1/4"	1450 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre exhausted	3 W / 5 VA
MEH 532 101	G 3/8"	2250 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre exhausted	3 W / 5 VA
MEH 532 121	G 1/2"	3000 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre exhausted	3 W / 5 VA
MEH 532 181	G 3/4"	6000 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre exhausted	3 W / 5 VA

Solenoid valve with external pilot feed | spring return to middle position | with manual override | centre pressurised

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Port size external pilot feed	Function	Power consumption
MEH 533 501	G 1/8"	650 l/min	1...10 bar	3...10 bar	M 5	5/3-way \| centre pressurized	3 W / 5 VA
MEH 533 701	G 1/4"	1250 l/min	1...10 bar	3...10 bar	M 5	5/3-way \| centre pressurized	3 W / 5 VA
MEH 533 801	G 1/4"	1450 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre pressurized	3 W / 5 VA
MEH 533 101	G 3/8"	2250 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre pressurized	3 W / 5 VA
MEH 533 121	G 1/2"	3000 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre pressurized	3 W / 5 VA
MEH 533 181	G 3/4"	6000 l/min	1...10 bar	3...10 bar	G 1/8"	5/3-way \| centre pressurized	3 W / 5 VA

Solenoid valve | spring return to middle position | with manual override | centre closed | G-series

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 531 501 G	G 1/8"	650 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 701 G	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 101 G	G 3/8"	2250 l/min	1,5...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 121 G	G 1/2"	3000 l/min	1...10 bar	5/3-way \| centre closed	3 W / 5 VA

Solenoid valve | spring return to middle position | with manual override | centre exhausted | G-series

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 532 501 G	G 1/8"	650 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 701 G	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 101 G	G 3/8"	2250 l/min	1,5...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 121 G	G 1/2"	3000 l/min	1...10 bar	5/3-way \| centre exhausted	3 W / 5 VA

Solenoid valve | spring return to middle position | with manual override | centre pressurised | G-series

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 533 501 G	G 1/8"	650 l/min	3...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 701 G	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 101 G	G 3/8"	2250 l/min	1,5...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 121 G	G 1/2"	3000 l/min	1...10 bar	5/3-way \| centre pressurized	3 W / 5 VA

MMD10 | Valves for manifolds

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MMD 531 304	Grundplatte \| DN 3	230 l/min	3...8 bar	5/3-Wege \| Mittelstellung geschlossen	0,6 W
MMD 532 304	Grundplatte \| DN 3	230 l/min	3...8 bar	5/3-Wege \| Mittelstellung entlüftet	0,6 W
MMD 533 304	Grundplatte \| DN 3	230 l/min	3...8 bar	5/3-Wege \| Mittelstellung belüftet	0,6 W

MD16 | valves for manifold plates

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 531 303	M 5	280 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA
MD 531 343	Ø 4	280 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA
MD 531 403	G 1/8"	450 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA
MD 531 463	Ø 6	450 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 532 303	M 5	280 l/min	3...10 bar	5/3-way \| centre exhausted	1,8 W / 3 VA
MD 532 343	Ø 4	280 l/min	3...10 bar	5/3-way \| centre exhausted	1,8 W / 3 VA
MD 532 403	G 1/8"	450 l/min	3...10 bar	5/3-way \| centre exhausted	1,8 W / 3 VA
MD 532 463	Ø 6	450 l/min	3...10 bar	5/3-way \| centre exhausted	1,8 W / 3 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 533 303	M 5	280 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA
MD 533 343	Ø 4	280 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA
MD 533 403	G 1/8"	450 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA
MD 533 463	Ø 6	450 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 531 304	Manifold plate \| orifice 3	280 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA
MD 531 404	Manifold plate \| orifice 4	450 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 532 304	Manifold plate \| orifice 3	280 l/min	3...10 bar	5/3-way \| centre exhausted	1,8 W / 3 VA
MD 532 404	Manifold plate \| orifice 4	450 l/min	3...10 bar	5/3-way \| centre exhausted	1,8 W / 3 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 533 304	Manifold plate \| orifice 3	280 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA
MD 533 404	Manifold plate \| orifice 4	450 l/min	3...10 bar	5/3-way \| centre pressurized	1,8 W / 3 VA

MH | valves for manifold plates

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 531 503	G 1/8"	650 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 703	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 803	G 1/4"	1450 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 532 503	G 1/8"	650 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 703	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 803	G 1/4"	1450 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 533 503	G 1/8"	650 l/min	3...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 703	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 803	G 1/4"	1450 l/min	3...10 bar	5/3-way \| centre pressurized	3 W / 5 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 531 304	Manifold plate \| orifice 3	220 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 504	Manifold plate \| orifice 5	650 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA
MH 531 704	Manifold plate \| orifice 7	1250 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 532 304	Manifold plate \| orifice 3	220 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 504	Manifold plate \| orifice 5	650 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA
MH 532 704	Manifold plate \| orifice 7	1250 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 533 304	Manifold plate \| orifice 3	220 l/min	3...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 504	Manifold plate \| orifice 5	650 l/min	3...10 bar	5/3-way \| centre pressurized	3 W / 5 VA
MH 533 704	Manifold plate \| orifice 7	1250 l/min	3...10 bar	5/3-way \| centre pressurized	3 W / 5 VA

Solenoid Valves - 5/3-way valves | Hafner

Experience Superior Control: Solenoid Valves - 5/3-way valves | Hafner

Features & Benefits of Solenoid Valves - 5/3-way valves | Hafner

Datasheet and documents

Description

Athens Department

Thessaloniki Department
