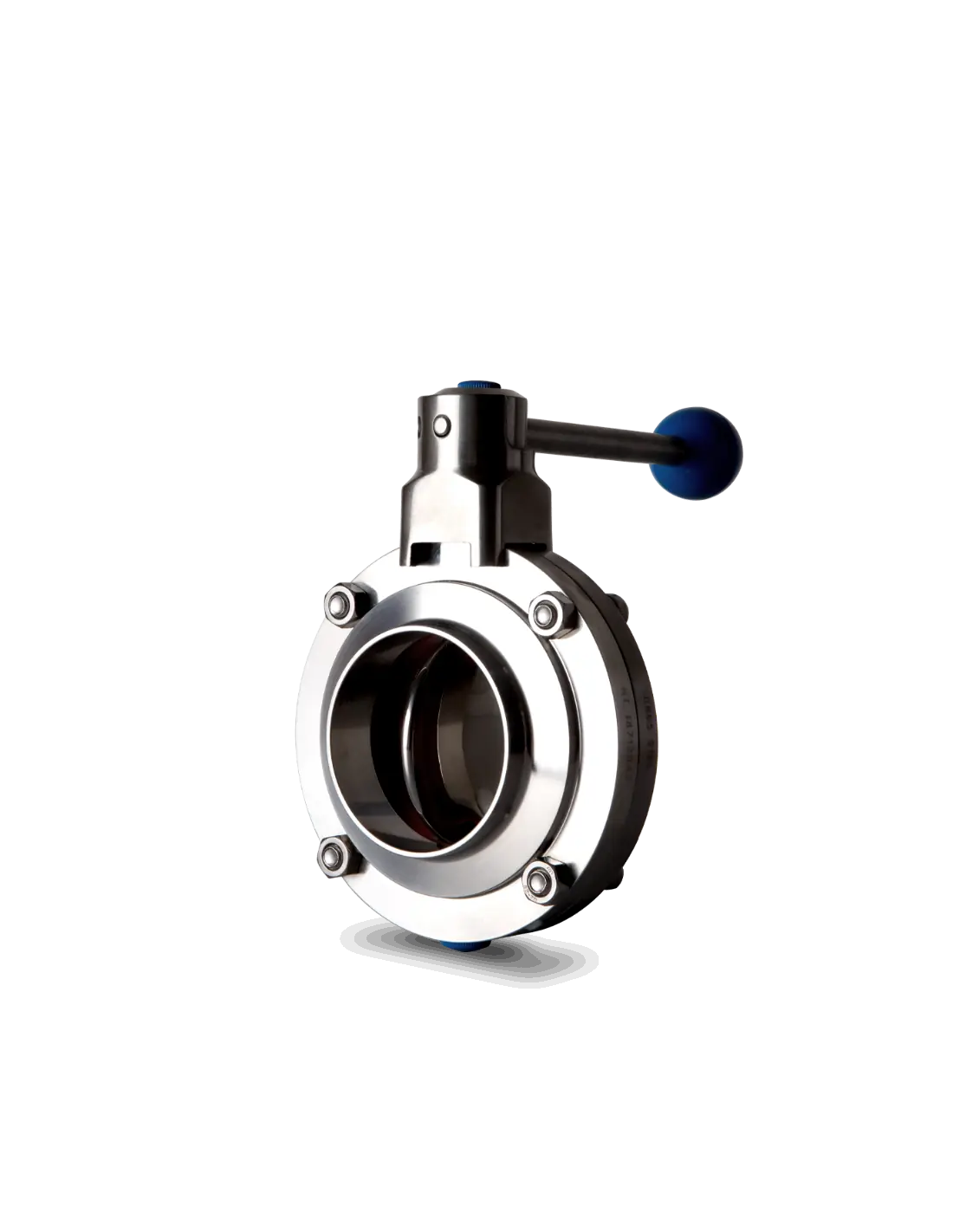

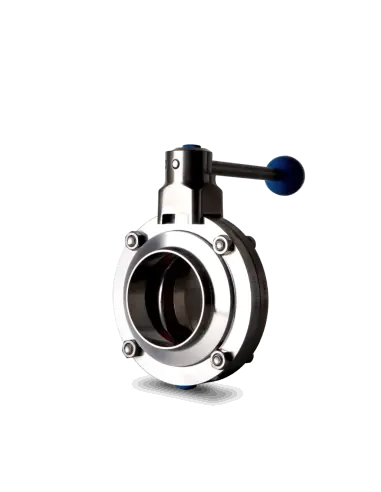

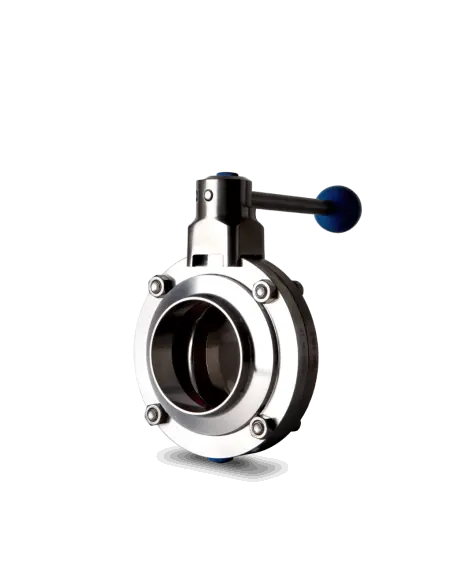

The MEI BVS is a sanitary butterfly valve designed for small diameter applications, providing flow isolation in clean lines for food, beverages, and auxiliary process fluids. The series covers DN25–DN80 with standard welding ends, while flanged ends or special connections are available upon request.
Silicone is suitable for sanitary lines requiring elastic sealing and frequent cleaning. PTFE is considered when product or CIP chemicals pose compatibility issues with elastomer seats.
The BVS is prepared for actuator and features a top flange ISO 5211 F05 across all DN25–DN80 sizes. Indicative operating torques are:
Actuator selection should include a safety margin above the torque table, considering line pressure, operation frequency, seat condition, and cleaning agents.
When to choose BVS over BV/BVT?
When smaller diameters DN25–DN80 and simple sanitary butterfly construction are required.
What should be confirmed in the order?
DN, end type, seat material, actuator or handle, product, CIP medium, operating temperature, and pressure.
Red edible silicone seal
Standard welded execution
Flanged, special attachments on request
Prepared for actuator
PTFE seal on request
| DN | D1 | D | L | L1 | H |
| 25 | 28 | 78 | 50 | 126 | 86 |
| 32 | 34 | 86 | 50 | 60126 | 90 |
| 40 | 40 | 90 | 210 | 126 | 92 |
| 50 | 52 | 106 | 52 | 133 | 104 |
| 65 | 70 | 124 | 56 | 144 | 113 |
| 80 | 85 | 139 | 60 | 160 | 123,5 |
