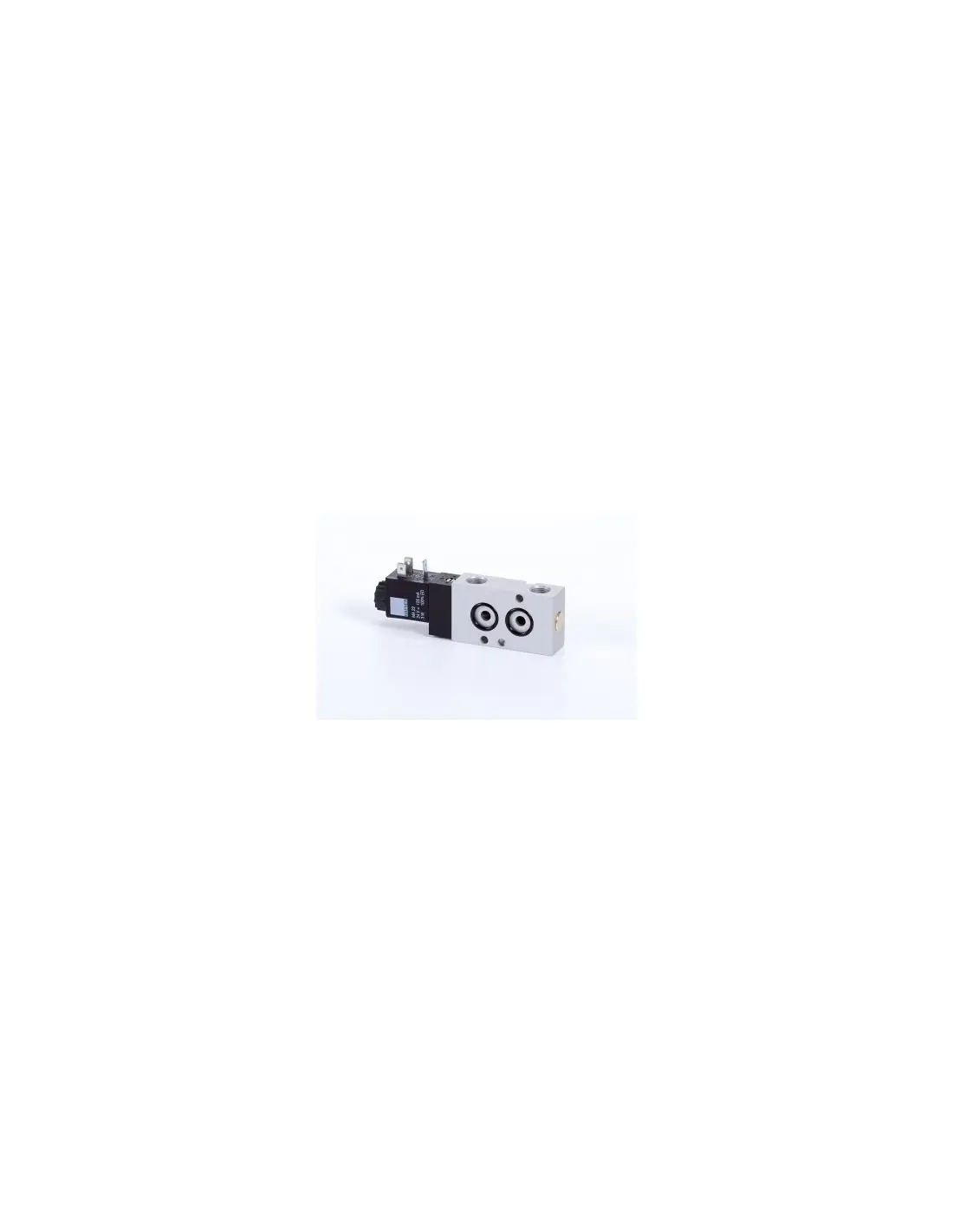

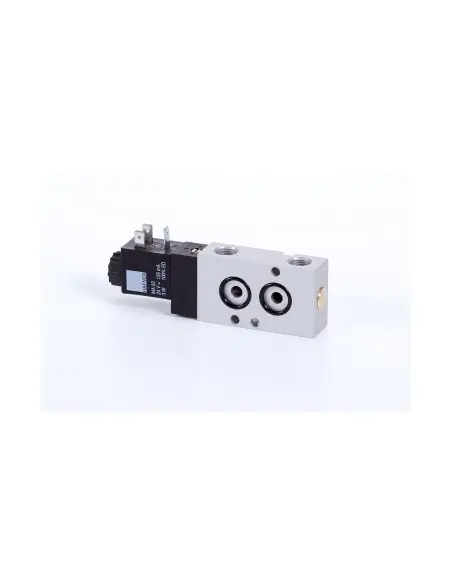

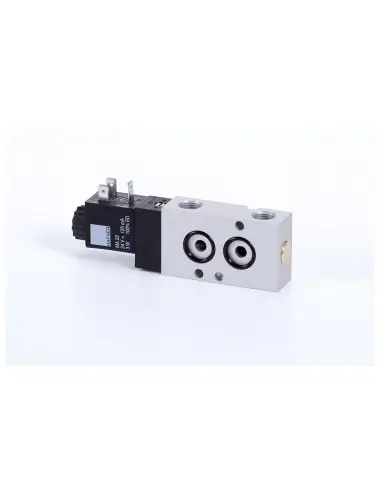

Valves with NAMUR-Interface - Solenoid valves | Hafner

Name: Valves with NAMUR-Interface - Solenoid valves | Hafner
Brand: Hafner
SKU: Valves with NAMUR-Interface - Solenoid valves | Hafner

Valves with NAMUR-Interface - Solenoid valves | Hafner: Precision Meets Practicality

Experience seamless performance and dependable control with the Valves with NAMUR-Interface - Solenoid valves | Hafner. Engineered for industrial use, these innovative valves deliver reliable functionality for your automation needs. Whether you’re looking to enhance operational efficiency or streamline control systems, this product stands out for its robust design and user-friendly features.

Features and Benefits of Valves with NAMUR-Interface - Solenoid valves | Hafner

Easy Installation: The NAMUR-Interface ensures quick and secure assembly. Simply attach the valve to your actuator with minimal tools and effort, saving valuable time during setup.
Reliable Performance: Designed to withstand demanding industrial environments, these solenoid valves maintain consistent operation, reducing downtime and maintenance needs.
Compact Design: Its space-saving build lets you fit the valve into tight installations, making it a versatile choice for various machinery or processes.
Enhanced Control: Benefit from precise control of air flow—allowing you to fine-tune your systems for optimal efficiency and safety.
Energy Efficiency: Hafner’s advanced engineering minimizes energy consumption, helping your facility lower operating costs while maintaining top performance.
Durable Construction: Built with high-quality materials, these valves resist corrosion and wear, ensuring they last even with continuous, heavy use.
Minimal Maintenance: Enjoy long service intervals thanks to the valve’s simple structure and reliable components, making upkeep straightforward.

With the Valves with NAMUR-Interface - Solenoid valves | Hafner, you gain more than just a component—you unlock efficiency, reliability, and control for your automation projects. Suitable for a wide range of industrial applications, this solution ensures your systems run smoothly day after day. Make the smart choice for your production line and experience the blend of practicality and innovation only Hafner provides.

Datasheet and documents

Description

Solenoid valve with NAMUR interface | monostable | air spring return | with manual override

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 310 701	G 1/4"	1250 l/min	2...10 bar	Single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]
MNH 310 101	G 3/8"	2250 l/min	1,5...10 bar	Single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]
MNH 310 121	G 1/2"	3000 l/min	1...10 bar	Single solenoid \| NC	3 W / 5 VA	NAMUR [1/2"]
MNOH 310 701	G 1/4"	1250 l/min	2...10 bar	Single solenoid \| NO	3 W / 5 VA	NAMUR [1/4"]
MNOH 310 121	G 1/2"	3000 l/min	1...10 bar	Single solenoid \| NO	3 W / 5 VA	NAMUR [1/2"]
MNH 310 701 NPT	NPT 1/4"	1250 l/min	2...10 bar	Single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]
MNH 310 121 NPT	NPT 1/2"	3000 l/min	1...10 bar	Single solenoid \| NC	3 W / 5 VA	NAMUR [1/2"]

Solenoid valve with NAMUR interface | monostable | air spring return | with manual override | low power consumption

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNK 310 701	G 1/4"	1250 l/min	2...10 bar	Single solenoid \| NC	1,8 W / 3 VA	NAMUR [1/4"]

Solenoid valve with NAMUR interface | monostable | NC | combined spring return | with manual override

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 311 701	G 1/4"	1250 l/min	2,5...10 bar	Single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]
MNH 311 101	G 3/8"	2250 l/min	2,5...10 bar	Single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]
MNH 311 121	G 1/2"	3000 l/min	2...10 bar	Single solenoid \| NC	3 W / 5 VA	NAMUR [1/2"]
MNH 311 701 NPT	NPT 1/4"	1250 l/min	2,5...10 bar	Single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]
MNH 311 121 NPT	NPT 1/2"	3000 l/min	2...10 bar	Single solenoid \| NC	3 W / 5 VA	NAMUR [1/2"]

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNK 311 701	G 1/4"	1250 l/min	2,5...10 bar	Single solenoid \| NC	1,8 W / 3 VA	NAMUR [1/4"]

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 310 711	G 1/4"	1250 l/min	2...10 bar	Single solenoid \| NC	3 W / 5 VA	NAMUR [1/4"]

Solenoid valve with NAMUR interface | monostable | air spring return | with manual override

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 510 701	G 1/4"	1250 l/min	2...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 510 101	G 3/8"	2250 l/min	1,5...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 510 121	G 1/2"	3000 l/min	1...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/2"]
MNH 510 701 NPT	NPT 1/4"	1250 l/min	2...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 510 121 NPT	NPT 1/2"	3000 l/min	1...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/2"]

Solenoid valve with NAMUR interface | monostable | air spring return | with manual override | low power consumption

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNK 510 701	G 1/4"	1250 l/min	2...10 bar	Single solenoid	1,8 W / 3 VA	NAMUR [1/4"]

Solenoid valve with NAMUR interface | monostable | combined spring return | with manual override

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 511 701	G 1/4"	1250 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 511 101	G 3/8"	2250 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 511 121	G 1/2"	3000 l/min	2...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/2"]
MNH 511 701 NPT	NPT 1/4"	1250 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 511 121 NPT	NPT 1/2"	3000 l/min	2...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/2"]

Solenoid valve with NAMUR interface | monostable | combined spring return | with manual override | low power consumption

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNK 511 701	G 1/4"	1250 l/min	2,5...10 bar	Single solenoid	1,8 W / 3 VA	NAMUR [1/4"]

Solenoid valve with NAMUR interface | monostable | air spring return | with manual override | ports 2 and 4 are swapped

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 510 711	G 1/4"	1250 l/min	2...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/4"]

Solenoid valve with NAMUR interface | monostable | combined spring return | with manual override | ports 2 and 4 are swapped

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 511 711	G 1/4"	1250 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA	NAMUR [1/4"]

Solenoid valve with NAMUR interface | bistable | with manual override

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 520 701	G 1/4"	1250 l/min	2...10 bar	Double solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 520 101	G 3/8"	2250 l/min	1,5...10 bar	Double solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 520 121	G 1/2"	3000 l/min	1...10 bar	Double solenoid	3 W / 5 VA	NAMUR [1/2"]
MNH 520 701 NPT	NPT 1/4"	1250 l/min	2...10 bar	Double solenoid	3 W / 5 VA	NAMUR [1/4"]
MNH 520 121 NPT	NPT 1/2"	3000 l/min	1...10 bar	Double solenoid	3 W / 5 VA	NAMUR [1/2"]

Solenoid valve with NAMUR interface | bistable | with manual override | low power consumption

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNK 520 701	G 1/4"	1250 l/min	2...10 bar	Double solenoid	1,8 W / 3 VA	NAMUR [1/4"]

Solenoid valve with NAMUR interface | monostable | air spring return | with manual override | 3/2 - 5/2 way NAMUR-flex

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 350 701	G 1/4"	1250 l/min	2...10 bar	Namur-Flex (3/2 - 5/2-way)	3 W / 5 VA	NAMUR [1/4"]

Solenoid valve with NAMUR interface | monostable | combined spring return | with manual override | 3/2 - 5/2 way NAMUR-flex

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 351 701	G 1/4"	1250 l/min	2,5...10 bar	Namur-Flex (3/2 - 5/2-way)	3 W / 5 VA	NAMUR [1/4"]

Flex-pack l converts the NAMUR-flex valve into a 3/2-way valve with exhaust-air recirculation

Type number	Interface	Material
FP 701 A	NAMUR [1/4"]	Aluminum
FP 701 KS	NAMUR [1/4"]	Polyamide

Flex-regulator l converts the NAMUR-flex valve into a 3/2-way valve and offers very precise flow regulation

Type number	Port size	Air flow	Operating pressure	Működtetés	Interface
DRF 3 601	NAMUR \| orifice 5	650 l/min	0,5...10 bar	manually	NAMUR [1/4"]

Solenoid valve with NAMUR interface | spring return to middle position | with manual override | centre closed

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 531 701	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA	NAMUR [1/4"]
MNH 531 101	G 3/8"	2250 l/min	1,5...10 bar	5/3-way \| centre closed	3 W / 5 VA	NAMUR [1/4"]
MNH 531 121	G 1/2"	3000 l/min	1...10 bar	5/3-way \| centre closed	3 W / 5 VA	NAMUR [1/2"]
MNH 531 701 NPT	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre closed	3 W / 5 VA	NAMUR [1/4"]
MNH 531 121 NPT	G 1/2"	3000 l/min	1...10 bar	5/3-way \| centre closed	3 W / 5 VA	NAMUR [1/2"]

Solenoid valve with NAMUR interface | spring return to middle position | with manual override | centre closed | low power consumption

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNK 531 701	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre closed	1,8 W / 3 VA	NAMUR [1/4"]

Solenoid valve with NAMUR interface | spring return to middle position | with manual override | centre exhausted

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption	Interface
MNH 532 701	G 1/4"	1250 l/min	3...10 bar	5/3-way \| centre exhausted	3 W / 5 VA	NAMUR [1/4"]
