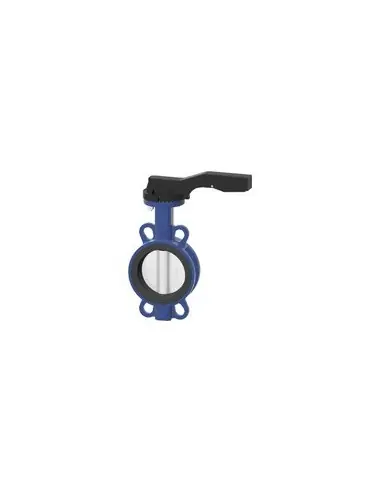

Butterfly Valve Wafer Comeval UNIWAT VF701

The UNIWAT VF701 is a concentric wafer-type butterfly valve with a soft seat dovetail/edge-boot design, offering bidirectional flow isolation. While limited throttling is possible, continuous regulation requires calculation of Kv, opening angle, and differential pressure.

Technical Specifications

  • Design: EN 593, EN 12516, DIN 3840.
  • Face-to-face: EN 558 Series 20 / DIN 3202 K1.
  • Connection: Between flanges EN 1092-1/2 PN10/PN16 and ASME B16.5 Class 150.
  • Pressure: PN16 up to DN300, PN10 for DN350–DN1200, with PN16 option where applicable.
  • Testing: EN 12266-1, seat leakage Rate A.
  • Top flange: ISO 5211 for actuator.

Materials and Seats

Body is ductile iron EN-JS1030. Disc options include EN-JS1030 nickel plated, stainless steel CF8/AISI 304 or CF8M/AISI 316. Seats available in NBR, EPDM, and Silicone; Hypalon also noted in general design. Stem is AISI 410, with NBR O-ring and PTFE bushings.

Applications

Suitable for water networks, HVAC, process water, compressed air, neutral gases, lubrication circuits, and auxiliary industrial lines. For Group 1 liquids, gases, low-pressure steam, or chemical media, check PED category, temperature, seat material, and disc compatibility.

Installation and Maintenance

Valve installs without additional sealing flanges, as the elastomer liner acts as a gasket. Proper centering, diagonal bolt tightening, and clean piping are required before startup. For control operation, a 20°–75° opening range is recommended.

FAQ

When to choose VF701?
When wafer installation, short length, ISO 5211 automation, and replaceable elastomer seat are required.

What actuators are compatible?
Hand lever, gearbox, pneumatic or electric actuator, selected based on torque and DN.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • EN-JS 1030 (GGG40) Ductile Iron
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

Concentric butterfly valves, soft seal, bidirectional, for isolation, with certain throttling capability. With ISO flange for easy automation. For use in applications of HVAC, water works, etc. Light and compact. With epoxy coat protection. Operated by hand lever, worm gear or actuator.

Specification of the range:

Diverse design combinations by end connections (wafer type, lug type or double flanged), materials of construction with elastomeric seats, nominal size range (DN25-DN1200), design pressure range (PN10-16), as well as operation style and accessories.

Other typical denominations: Wafer concentric butterfly valves

Applications: Water, HVAC, gases, lubrication, compressed air, process, etc.

Certifications: PED 2014/68/EU

Certificates

Declaration of Conformity

Declaration of Conformity ATEX

WRAS
