Butterfly valve high performance - FIRE SAFE COLOSSUS | TTV Valves

Unmatched Reliability and Safety: Butterfly valve high performance - FIRE SAFE COLOSSUS | TTV Valves

Discover a new level of protection and performance with the Butterfly valve high performance - FIRE SAFE COLOSSUS | TTV Valves. Specifically engineered for industrial use, this advanced butterfly valve delivers optimal flow control and steadfast operation, even in the harshest environments. Its robust design and fire-safe technology guarantee a safe, efficient, and reliable solution for your plant's critical processes.

Key Features & Benefits of Butterfly valve high performance - FIRE SAFE COLOSSUS | TTV Valves

  • Fire Safe Assurance: Built to withstand extreme temperatures, this valve ensures uninterrupted operation and safety during fire emergencies, protecting both your process and your facility.
  • Exceptional Durability: Manufactured with top-quality materials, it resists wear, corrosion, and harsh chemicals, promising a long service life even with continuous industrial use.
  • High Performance Flow Control: Its innovative design allows precise regulation of liquids and gases, minimizing leakage risk and maximizing efficiency in your operations.
  • Easy Installation & Maintenance: The compact construction and user-friendly layout mean less downtime and hassle during setup and servicing, keeping your operation running smoothly.
  • Tight Seal Technology: Equipped with advanced sealing solutions, the valve prevents product loss and contamination, ensuring consistent system performance.
  • Versatile Compatibility: Ideal for a wide range of industrial settings, from petrochemical to water treatment, it adapts effortlessly to your specific needs.

Say goodbye to worries about safety and interruptions. The Butterfly valve high performance - FIRE SAFE COLOSSUS | TTV Valves offers peace of mind, knowing your critical flow control system is protected by the best in fire-safe engineering. Its smart design ensures that even inexperienced personnel can operate and maintain it efficiently, while its proven reliability reduces the need for constant supervision.

Upgrade your facility today with a solution that stands up to extreme demands, delivers peak performance, and prioritizes safety above all. Depend on the Butterfly valve high performance - FIRE SAFE COLOSSUS | TTV Valves—the powerhouse for industrial applications seeking uncompromising safety and efficiency.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A216 WCB
  • ASTM A351 CF8M
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • 25% G.F. PTFE

Datasheet and documents

Description

Manufacturing range: DN32 - DN600

Distance between flanges: EN 558 Series 20, Serie 13 - ISO 5752 Series 20, Serie 13 - API 609, EN 593,  - BS 5155, MSS-SP-68

Installation between flanges: PN10/16/25/40 - ANSI150 Lbs./300 Lbs.

Flanges: ISO 7005, DIN 2501, BS-4504, ANSI Class 150: ANSI B16.5

Upper flange connection: ISO 5211

Tests: API 598, ANSI/ASME B16.34, BS1560, EN593

Coating: Stainless steel

Work Pressure: DN32 - DN600, Max. 25 bar.

Properties

  • Double axis displacement.
  • Longer useful life, minimal friction between the disc and the seat.
  • Complete tightness. Class VI - ISO 5208 (Rate A)
  • Self-sealing mechanism that guarantees a tight seal and low torque.
  • Offset axle allows for easy seat replacement.
  • Quick on-site maintenance.
  • High performance.
  • Low cost.
  • Light weight.
  • Same construction, three types of seat: 100% PTFE / R-PTFE, INCONEL, Fire Safe.
  • Stainless steel butterfly.
  • Stainless steel shaft.

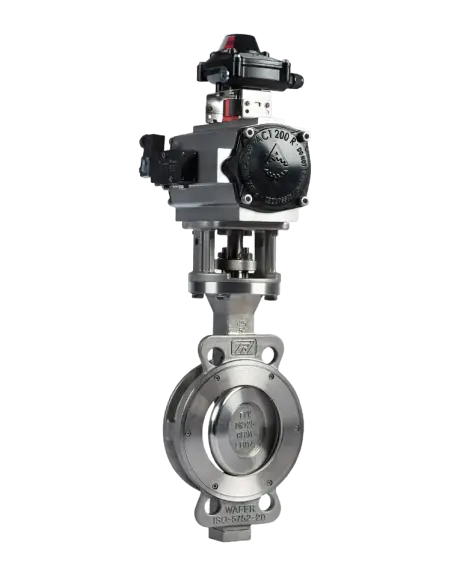

  • Possibility of operation with different controls (lever control, reducer, pneumatic, electric, hydraulic actuator...)
  • Standard and threaded retainer.
  • Valve construction with vacuum-safe R-PTFE seal.
  • TA-LUFT VD 2440 ISO 15848 design.
  • PED 2014/68.
  • ATEX 2014/34/EU - ATEX II 2GDc.
  • SIL IFC 61508.

General applications

  • Vacuum services
  • Chemicals
  • petroleum products
  • Ethylene
  • LPG/LNG
  • Hydrocarbon derivatives
  • Steam
  • Air
  • Seawater
  • saturated water
  • saturated steam
  • Heat-insulated gases
  • Bitumen / Asphalt
  • Corrosive liquids
  • thermal oil
  • Cogeneration
  • Fire installations
  • Abrasives
  • Sludge
