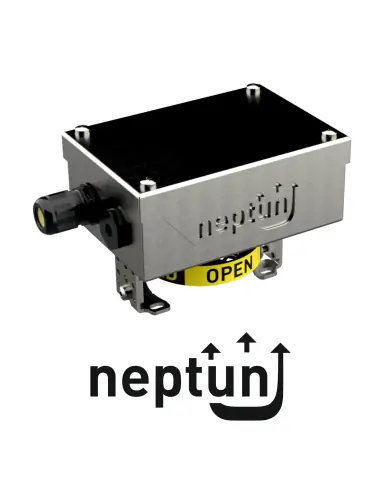

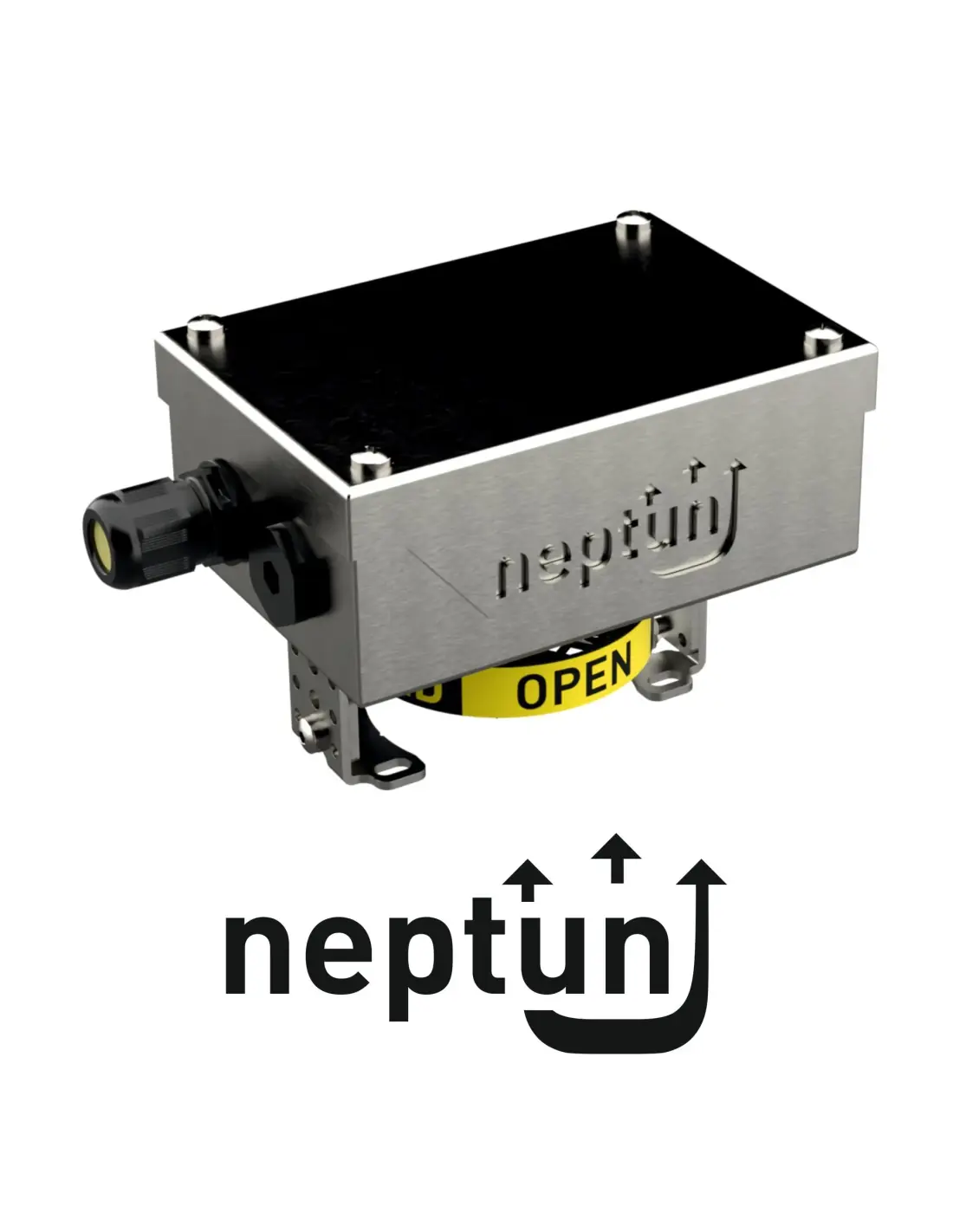

Neptun Box NEK is a stainless steel limit switch enclosure designed for valve position feedback in pneumatic rotary actuator assemblies. The shaft of the box follows actuator rotation, with cams actuating switches or sensors to provide open/closed signals to PLC or DCS systems. No process media contact occurs; selection is based on environment, sensor type, output signal, wiring, and actuator compatibility.
Enclosure and external components are stainless steel 1.4571 (AISI 316Ti), providing enhanced resistance to corrosion and pitting. Suitable for offshore installations, chemical plants, saline atmospheres, sulfurous gases, ammonium nitrate, and aggressive industrial environments.
Standard terminal accepts solid conductor 0.2–4.0 mm² or flexible/ferruled 0.2–2.5 mm², tightening torque 0.45–0.50 Nm, stripping length 7 mm. For outdoor use, a breather is required to limit condensation. Lid and shaft seals must be replaced when worn, or at least every 5 years.
Is selection based on PN or Class?
No. The unit does not contact process fluid. Selection is based on environment, sensor/output type, wiring, and actuator compatibility.
Is there an ATEX version?
The NEK standard range is for non-hazardous areas. For Ex zones, a certified Neptun version is required.
The neptun Box and all external parts are made of high-quality stainless steel (1.4571) and are therefore particularly resistant to corrosion and pitting. This makes it suitable for use in offshore applications and in the chemical industry, as well as in environments with a salty atmosphere, sulphur gases, ammonia nitrate and numerous other aggressive media.
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
EAC-TR (Russia)
Our limit switch boxes are also certified according to the Russian standard EAC TR CU 004 and TR CU 012. You can download the certificate for the explosion-proof area here:
EAC approval for limit switch boxes (Ex-protected)
CCC (China)
Our limit switch boxes are also certified according to the Chinese standard CCC, CNCA-C23-01:2019. You can download the certificates here:
UKCA (England)
Our products for explosion-proof areas are also certified according to the British standard UKCA, UKSI 2016:1107.
ROHS
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
REACH
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
Regulation EC 1907/2006 (REACH)
