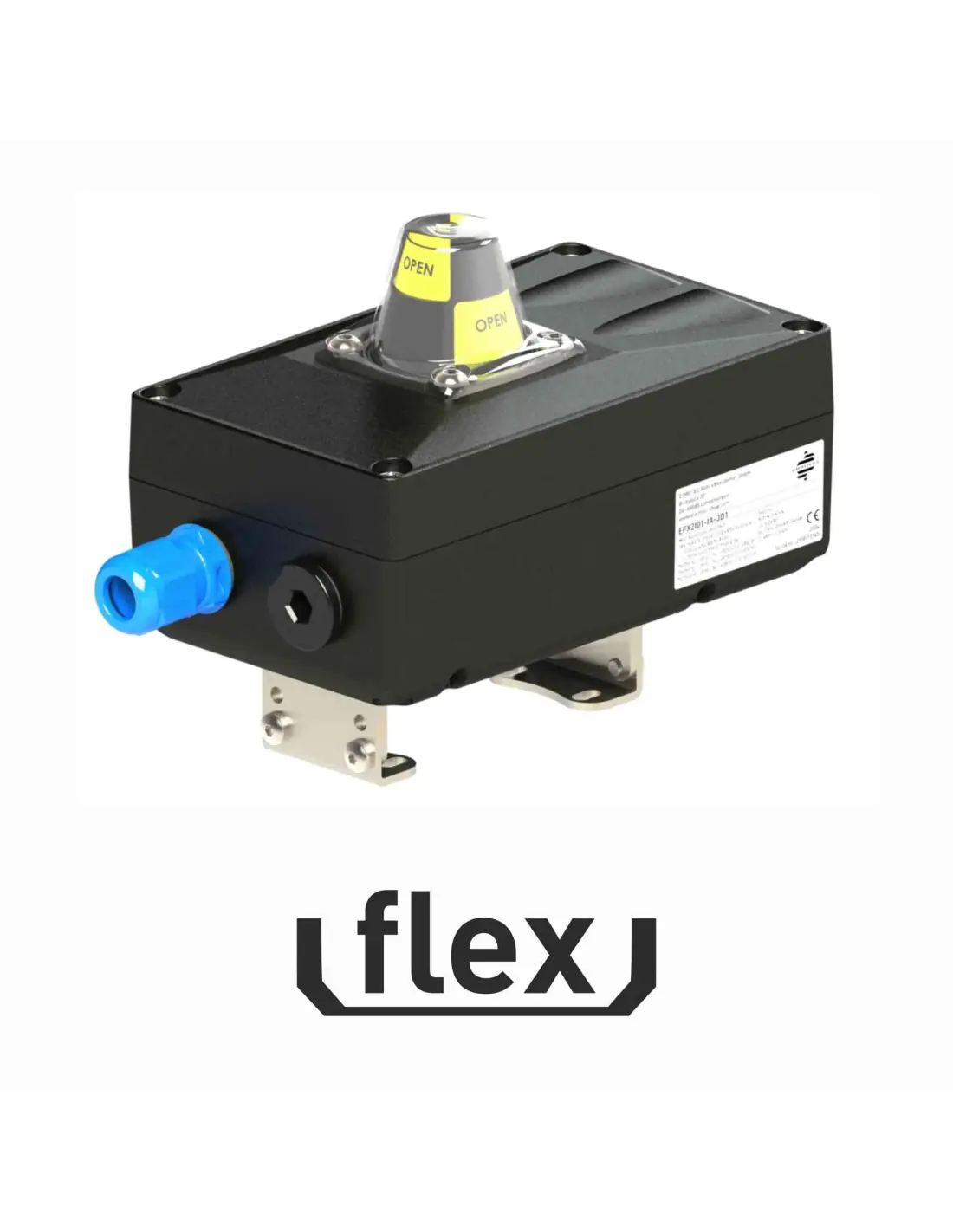

The Flex Box Ex ia is a position feedback enclosure for valves equipped with pneumatic rotary actuators. Its shaft couples directly to the actuator shaft, and internal cams actuate sensors to provide open/closed signals to PLC, DCS, or safety systems. The device does not contact the process media.
Suitable for Zone 1, Zone 2, Zone 21, and Zone 22, with marking:
ATEX certification: EPS 16 ATEX 1 012 X, compliant with Directive 2014/34/EU and EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-11, EN 60079-31.
Enclosure is copper-free aluminium (Cu <0.05%), suitable for saline atmospheres, sulphur gases, or ammonium nitrate environments. Enclosure protection: IP66/IP67.
Depending on version, accepts:
Gold contact mechanical switches: Ui 30 V, Ii 15 mA, Pi 35 mW. For Ex ia circuits: Ui 28 V / Ii 200 mA (IIC), Ui 32 V / Ii 450 mA (IIB).
Permitted temperature depends on temperature class and sensor type. For EFX…IA with gold contacts: T6/T80°C up to +70°C, T5/T95°C up to +80°C, T4/T135°C up to +100°C. Lower limit: -55°C or -25°C depending on build.
When is Ex ia selected?
When position signals must be intrinsically safe and wiring is routed via certified barriers or isolators.
Does valve PN or Class affect selection?
No. Selection is based on Ex zone, sensor type, ambient temperature, wiring, and VDI/VDE 3845 compatibility.
The name flex Box stands for particularly high flexibility. Thanks to the robust, copper-free aluminum ( 0.05% copper content), it is not only suitable for harsh environmental conditions with high demands on stability and resilience, but also for applications with salty atmospheres, sulfur gases and ammonia nitrate.
Suitable for: Zone 1, Zone 2, Zone 21, Zone 22 II 2G Ex ia IIC/IIB T4-T6 Gb II 2D Ex ia IIIC T80°C-T135°C Db
DIN EN ISO 9001:2015
EUROTEC Antriebszubehör GmbH is a company certified according to ISO 9001-2015. The certification body of TÜV SÜD Management Service GmbH certifies that our company is certified for system components for the automation of industrial valves in the areas of
- Development
- Production
- Distribution
has introduced and successfully applies a quality management system
ISO/IEC 80079-34 (ATEX-QM)
EUROTEC Antriebszubehör GmbH is a certified manufacturer of devices and protective systems for intended use in potentially explosive atmospheres in accordance with Directive 2014/34/EU and the quality management standard ISO IEC 80079-34. We are audited annually and attach great importance to safe processes for the manufacture of absolutely safe and reliable products.
You can download the following certificates here:
For further questions about explosion protection, ask our experts
EU declaration of conformity
With our products we meet the requirements of the Machinery Directive 2006/42/EC as well as the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU.
You can download the EU declarations of conformity for the standard range here:
The ATEX declarations of conformity for the explosion-proof products can be found on the product pages directly for the respective limit switch box series.
SIL
For use in safety-relevant systems and processes, we have carried out an FMEDA for our limit switch boxes and solenoid valves in collaboration with exida and classified our products into the corresponding SIL levels. Our products meet the criteria from SIL 1 to SIL 3.
You can download the SIL declarations of conformity here:
For more information, ask our experts.
EAC-TR (Russia)
Our limit switch boxes are also certified according to the Russian standard EAC TR CU 004 and TR CU 012. You can download the certificate for the explosion-proof area here:
EAC approval for limit switch boxes (Ex-protected)
CCC (China)
Our limit switch boxes are also certified according to the Chinese standard CCC, CNCA-C23-01:2019. You can download the certificates here:
UKCA (England)
Our products for explosion-proof areas are also certified according to the British standard UKCA, UKSI 2016:1107.
ROHS
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
REACH
EUROTEC Antriebszubehör GmbH is aware of its responsibility towards the environment and people.
We attach great importance to the greatest possible transparency in the supply chain and provide all information to the best of our knowledge and belief.
Regulation EC 1907/2006 (REACH)
