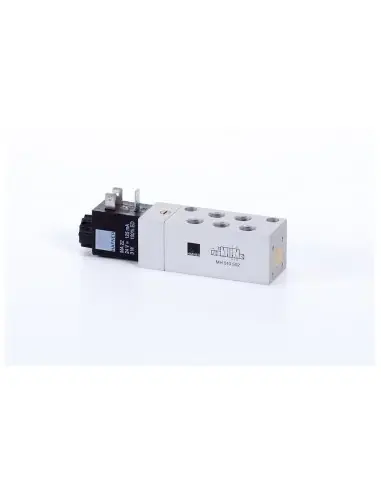

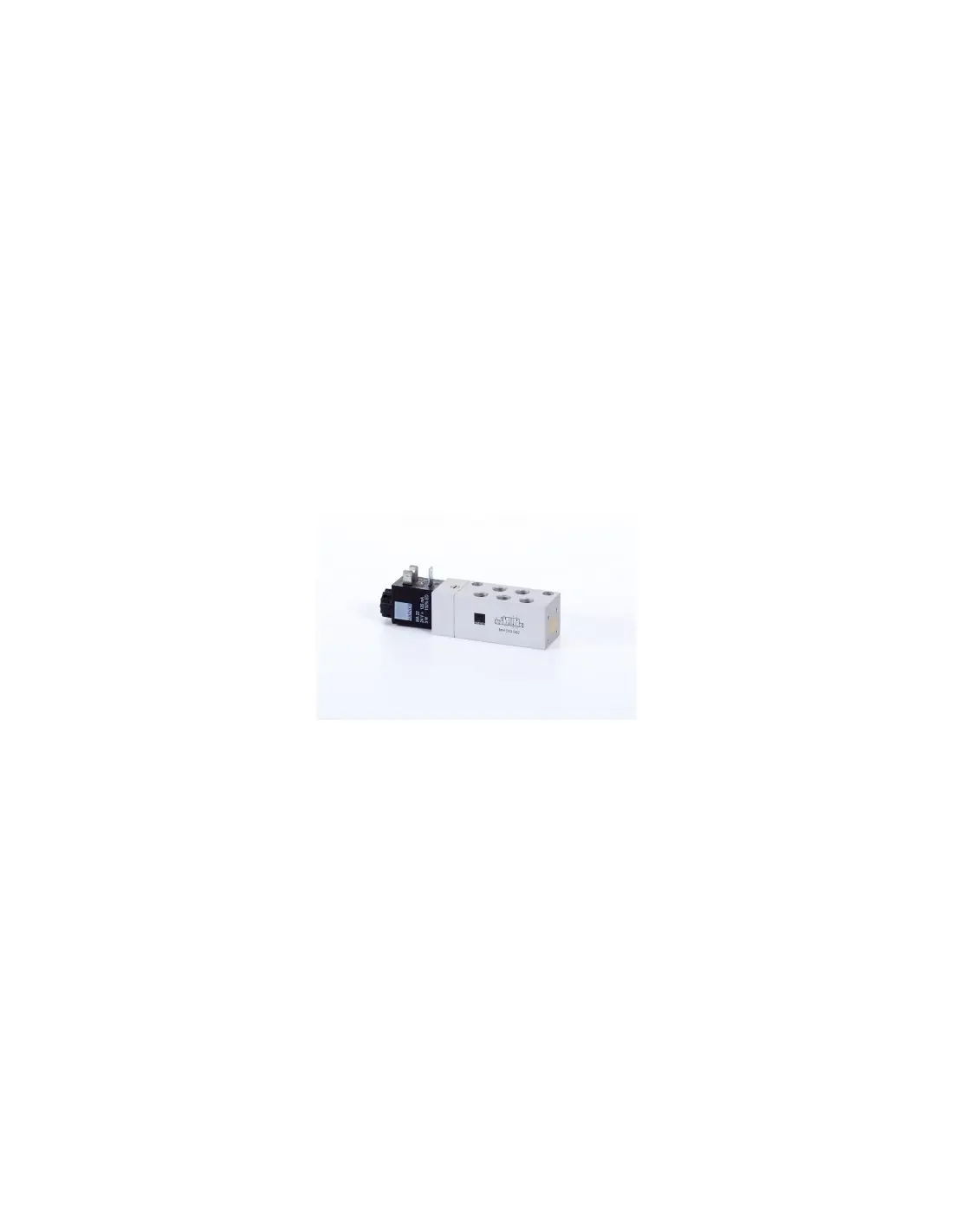

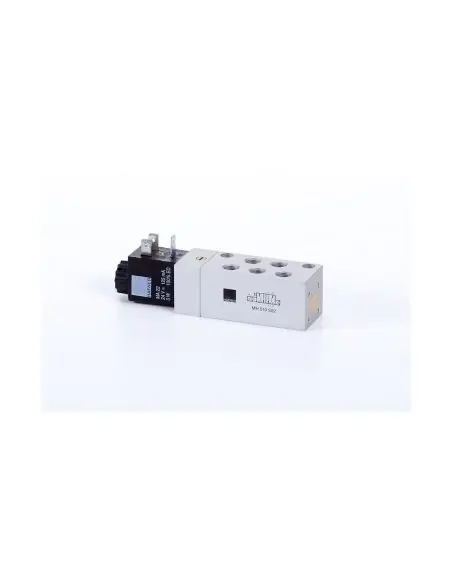

Solenoid Valves - 5/2-way valves | Hafner: Reliable Control, Superior Performance

Discover the precision and dependability of Solenoid Valves - 5/2-way valves | Hafner, designed for seamless industrial automation. Engineered for outstanding durability, these valves bring reliable technology to your pneumatic systems, making processes smoother and more energy-efficient.

Features & Benefits of Solenoid Valves - 5/2-way valves | Hafner

Maximized Efficiency: Rapid switching reduces downtime, accelerating your workflows and increasing productivity.
Exceptional Durability: Built with quality materials for prolonged use in demanding industrial environments.
Optimized Control: The 5/2-way design allows for simple management of double-acting cylinders, making them versatile for numerous tasks.
Easy Installation: Compact and lightweight, they fit perfectly into tight spaces, supporting easy upgrades and maintenance.
Low Maintenance: Thoughtful construction means less wear and fewer replacements, saving time and costs over the product’s life.

With Hafner's experience in valve technology, these solenoid valves guarantee consistent operation even under heavy workloads. The smart 5/2-way mechanism lets you control two different positions with a single valve, offering flexible solutions for motion, positioning, or actuation applications.

Every valve is precision-tested for airtight sealing and dependable actuation. This ensures you always have accurate control over your machinery. The integrated solenoid system promotes fast response times, so your automated processes can keep pace with high demand.

Safety is also a priority—Hafner’s solenoid valves are designed to minimize leakage and withstand tough conditions, keeping your equipment and workplace secure.

Choose Solenoid Valves - 5/2-way valves | Hafner for a smart investment in your industrial automation, ensuring smooth performance and peace of mind every day.

Datasheet and documents

Description

MMD10 | In-line valves

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MMD 510 301	M 5	230 l/min	3…8 bar	monostabil	0,6 W
MMD 510 341	Ø 4	230 l/min	3…8 bar	monostabil	0,6 W
MMD 520 301	M 5	230 l/min	3...8 bar	bistabil	0,6 W
MMD 520 341	M 5	230 l/min	3...8 bar	bistabil	0,6 W

MD16 | In-line valves

Solenoid valve | monostable | air spring return | with manual override

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 510 301	M 5	280 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA
MD 510 341	Ø 4	280 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA
MD 510 401	G 1/8"	450 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA
MD 510 461	Ø 6	450 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA

Solenoid valve | bistable | with manual override

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 520 301	M 5	280 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA
MD 520 341	Ø 4	280 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA
MD 520 401	G 1/8"	450 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA
MD 520 461	Ø 6	450 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA

MH | in-line valves

Solenoid valve | monostable | air spring return | with manual override | all ports on one side

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 510 302	M 5	180 l/min	2...10 bar	Single solenoid	3 W / 5 VA
MH 510 502	G 1/8"	650 l/min	2...10 bar	Single solenoid	3 W / 5 VA

Solenoid valve | monostable | combined spring return | with manual override | all ports on one side

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 511 302	M 5	180 l/min	3...10 bar	Single solenoid	3 W / 5 VA
MH 511 502	G 1/8"	650 l/min	3...10 bar	Single solenoid	3 W / 5 VA

Solenoid valve | monostable | air spring return | with manual override

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 510 501	G 1/8"	650 l/min	2...10 bar	Single solenoid	3 W / 5 VA
MH 510 701	G 1/4"	1250 l/min	2...10 bar	Single solenoid	3 W / 5 VA
MH 510 801	G 1/4"	1450 l/min	1,5...10 bar	Single solenoid	3 W / 5 VA
MH 510 101	G 3/8"	2250 l/min	1,5...10 bar	Single solenoid	3 W / 5 VA
MH 510 121	G 1/2"	3000 l/min	1...10 bar	Single solenoid	3 W / 5 VA
MH 510 181	G 3/4"	6000 l/min	1...10 bar	Single solenoid	3 W / 5 VA

Solenoid valve | monostable | combined spring return | with manual override

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 511 501	G 1/8"	650 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA
MH 511 701	G 1/4"	1250 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA
MH 511 801	G 1/4"	1450 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA
MH 511 101	G 3/8"	2250 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA
MH 511 121	G 1/2"	3000 l/min	2...10 bar	Single solenoid	3 W / 5 VA
MH 511 181	G 3/4"	6000 l/min	2...10 bar	Single solenoid	3 W / 5 VA

Solenoid valve with external pilot feed | monostable | mechanical spring return | with manual override

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Port size external pilot feed	Function	Power consumption
MEH 511 501	G 1/8"	650 l/min	1...10 bar	3...10 bar	M 5	Single solenoid	3 W / 5 VA
MEH 511 701	G 1/4"	1250 l/min	1...10 bar	3...10 bar	M 5	Single solenoid	3 W / 5 VA
MEH 511 801	G 1/4"	1450 l/min	1...10 bar	3...10 bar	G 1/8"	Single solenoid	3 W / 5 VA
MEH 511 101	G 3/8"	2250 l/min	1...10 bar	3...10 bar	G 1/8"	Single solenoid	3 W / 5 VA
MEH 511 121	G 1/2"	3000 l/min	1...10 bar	3...10 bar	G 1/8"	Single solenoid	3 W / 5 VA
MEH 511 181	G 3/4"	6000 l/min	1...10 bar	3...10 bar	G 1/8"	Single solenoid	3 W / 5 VA

Solenoid valve | bistable | with manual override | all ports on one side

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 520 302	M 5	180 l/min	2...10 bar	Double solenoid	3 W / 5 VA
MH 520 502	G 1/8"	650 l/min	2...10 bar	Double solenoid	3 W / 5 VA

Solenoid valve | bistable | with manual override

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 520 501	G 1/8"	650 l/min	2...10 bar	Double solenoid	3 W / 5 VA
MH 520 701	G 1/4"	1250 l/min	2...10 bar	Double solenoid	3 W / 5 VA
MH 520 801	G 1/4"	1450 l/min	1,5...10 bar	Double solenoid	3 W / 5 VA
MH 520 101	G 3/8"	2250 l/min	1,5...10 bar	Double solenoid	3 W / 5 VA
MH 520 121	G 1/2"	3000 l/min	1...10 bar	Double solenoid	3 W / 5 VA
MH 520 181	G 3/4"	6000 l/min	1...10 bar	Double solenoid	3 W / 5 VA

Solenoid valve with external pilot feed | bistable | with manual override

Type number	Port size	Air flow	Operating pressure	Actuating pressure	Port size external pilot feed	Function	Power consumption
MEH 520 501	G 1/8"	650 l/min	1...10 bar	2,5...10 bar	M 5	Double solenoid	3 W / 5 VA
MEH 520 701	G 1/4"	1250 l/min	1...10 bar	2,5...10 bar	M 5	Double solenoid	3 W / 5 VA
MEH 520 801	G 1/4"	1450 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double solenoid	3 W / 5 VA
MEH 520 101	G 3/8"	2250 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double solenoid	3 W / 5 VA
MEH 520 121	G 1/2"	3000 l/min	1...10 bar	2,5...10 bar	G 1/8"	Double solenoid	3 W / 5 VA
MEH 520 181	G 3/4"	6000 l/min	1...10 bar	2...10 bar	G 1/8"	Double solenoid	3 W / 5 VA

Tab Solenoid valve | monostable | air spring return | with manual override | G-series

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 510 501 G	G 1/8"	650 l/min	2...10 bar	Single solenoid	3 W / 5 VA
MH 510 701 G	G 1/4"	1250 l/min	2...10 bar	Single solenoid	3 W / 5 VA
MH 510 101 G	G 3/8"	2250 l/min	1,5...10 bar	Single solenoid	3 W / 5 VA
MH 510 121 G	G 1/2"	3000 l/min	1...10 bar	Single solenoid	3 W / 5 VA

Solenoid valve | bistable | with manual override | G-series

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 520 501 G	G 1/8"	650 l/min	2...10 bar	Double solenoid	3 W / 5 VA
MH 520 701 G	G 1/4"	1250 l/min	2...10 bar	Double solenoid	3 W / 5 VA
MH 520 101 G	G 3/8"	2250 l/min	1,5...10 bar	Double solenoid	3 W / 5 VA
MH 520 121 G	G 1/2"	3000 l/min	1...10 bar	Double solenoid	3 W / 5 VA

MMD10 | Valves for manifolds

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MMD 510 304	Grundplatte \| DN 3	230 l/min	3...8 bar	monostabil	0,6 W
MMD 520 304	Grundplatte \| DN 3	230 l/min	3...8 bar	bistabil	0,6 W

MD16 | valves for manifold plates

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 510 303	M 5	280 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA
MD 510 343	Ø 4	280 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA
MD 510 403	G 1/8"	450 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA
MD 510 463	Ø 6	450 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 510 304	Manifold plate \| orifice 3	280 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA
MD 510 404	Manifold plate \| orifice 4	450 l/min	3...10 bar	Single solenoid	1,8 W / 3 VA

Solenoid valve | bistable | with manual override | for manifold plate mounting | ports 2 and 4 in the valve

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 520 303	M 5	280 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA
MD 520 343	Ø 4	280 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA
MD 520 403	G 1/8"	450 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA
MD 520 463	Ø 6	450 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA

Solenoid valve | bistable | with manual override | for manifold plate mounting | all ports in the plate

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MD 520 304	Manifold plate \| orifice 3	280 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA
MD 520 404	Manifold plate \| orifice 4	450 l/min	3...10 bar	Double solenoid	1,8 W / 3 VA

MH | valves for manifold plates

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 510 503	G 1/8"	650 l/min	2...10 bar	Single solenoid	3 W / 5 VA
MH 510 703	G 1/4"	1250 l/min	2...10 bar	Single solenoid	3 W / 5 VA
MH 510 803	G 1/4"	1450 l/min	1,5...10 bar	Single solenoid	3 W / 5 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 511 503	G 1/8"	650 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA
MH 511 703	G 1/4"	1250 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA
MH 511 803	G 1/4"	1450 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 510 304	Manifold plate \| orifice 3	220 l/min	2...10 bar	Single solenoid	3 W / 5 VA
MH 510 504	Manifold plate \| orifice 5	650 l/min	2...10 bar	Single solenoid	3 W / 5 VA
MH 510 704	Manifold plate \| orifice 7	1250 l/min	2...10 bar	Single solenoid	3 W / 5 VA

Type number	Port size	Air flow	Operating pressure	Funktion	Power consumption
MH 511 304	Manifold plate \| orifice 3	220 l/min	3...10 bar	Single solenoid	3 W / 5 VA
MH 511 504	Manifold plate \| orifice 5	650 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA
MH 511 704	Manifold plate \| orifice 7	1250 l/min	2,5...10 bar	Single solenoid	3 W / 5 VA
