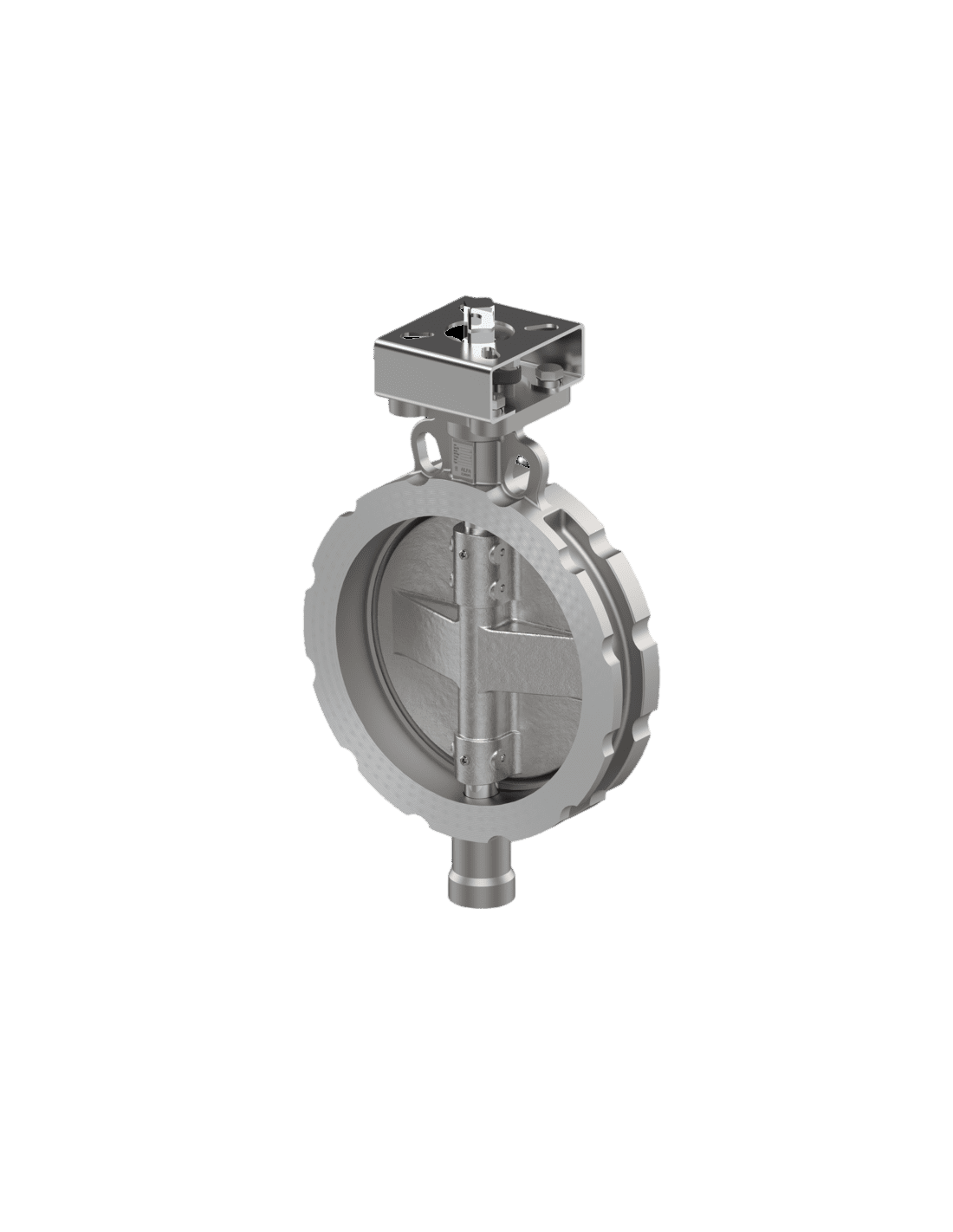

The S96 is a high-performance wafer-type butterfly valve designed for flow isolation in industrial lines requiring lower seat friction and greater durability than conventional concentric butterfly valves with elastomeric liners. The series covers DN50–DN400, with larger sizes available upon request.
Technical sheets specify a temperature range of -40 to +250 °C, while the product page mentions -50 to +450 °C. Selection requires confirmation of permissible temperature from actual seat and trim material.
Available seats/seals:
Body: EN-JS1030, ASTM A216 WCB, SS 1.4408, SD 2508.
Disc: SS 1.4408, 1.4470, aluminium bronze, SD 2507.
Shaft: 17-4PH, Duplex F51, Super Duplex F53, C6300.
The S96 is available as bare shaft for actuator or with gearbox. Actuator selection depends on DN, differential pressure, seat material, and required torque.
Suitable for process water, hot liquids, chemical lines compatible with PTFE/RPTFE, air, gases, and auxiliary industrial networks. For steam, high temperature, or frequent throttling, seat, leakage class, ΔP, and actuator torque must be checked.
When to choose S96 over a simple wafer?
When high-performance seat design, greater temperature resistance, or lower sealing wear is required.
Is it a control valve?
Not as a primary use. For regulation, check Kv/Cv, noise, cavitation, and operating angle.
Range: From DN 50 (2”) up to DN 400 (16”) - larger sized on request
End connection: Wafer
Flange connection: JIS B 2211-5K and BB 2212-10K - ANSI B 16.5 – Class 150 and 300 - DIN 2501 PN-10 and 16
Temperature range: -50° up to +450 °C
Face to face: acc. EN 558-1 - ISO 5752 - API 609 A - BS 5155
