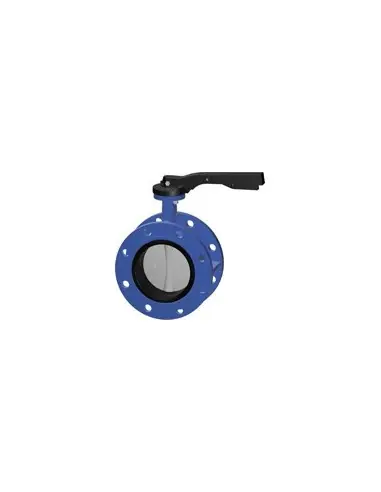

Double Flanged Butterfly Valve Comeval UNIWAT VF790

The UNIWAT VF790 is a concentric double flanged butterfly valve with a soft seat and bidirectional sealing. Primarily used for isolation in water networks, HVAC, process fluids, neutral gases, lubrication, and compressed air. It offers limited throttling capability but should not be selected as a control valve without verifying Kv, ΔP, and operating angle.

Technical Specifications

Design: EN 593, EN 12516, DIN 3840
Face-to-face: EN 558 Series 13 / DIN 3202 F16
Connection: flanges EN 1092-1/2 type 11/B
Pressure: PN16 DN50–DN300, PN10 DN350–DN1200
PTFE seat: PN10 DN40–DN600
Top flange: ISO 5211
Testing: EN 12266-1
Seat leakage: Rate A, bidirectional sealing
External coating: epoxy, approximately 250 μm

Construction Materials

Body available in EN-JS1030 ductile iron, WCB steel, or CF8M stainless steel. Discs can be ductile iron nickel plated, CF8M, or aluminium bronze. Available seats: EPDM, NBR, Viton, Hypalon, PTFE. Stem is AISI 420 up to DN300 and AISI 431 for larger diameters.

Application Limits

For PN10, recommended velocity is up to 3 m/s, and for PN16 up to 4 m/s. In potable water, TSmax 80 °C is noted. Final seat selection should consider temperature, pressure, chemical compatibility, and potential elastomer swelling.

Operation

Accepts hand lever, gearbox, bare shaft, pneumatic or electric actuator via ISO 5211. For DN >200 or PTFE seat, gearbox/actuator is typically considered due to increased torque.

FAQ

When to choose VF790 over VF700/VF750?
When a flanged body with face-to-face Series 13 and full mechanical connection to the piping is required.

Is it suitable for chemicals?
Only after checking liner, disc, temperature, concentration, and PED fluid category.

Standard (Options)

Connection (Options)

Double Flanged

Material (Options)

EN-JS 1030 (GGG40) Ductile Iron
Steel
Stainless Steel

Pressure Rating (Options)

PN 10
PN 16

Datasheet and documents

Description

Concentric butterfly valves, soft seal, bidirectional, for isolaton, with certain throttling capability. With ISO flange for easy automation. For use in applications of HVAC, water works, etc. Light and compact. With epoxy coat protection. Operated by hand lever, worm gear or actuator.

Specification of the range:

Diverse design combinations by end connections (wafer type, lug type or double flanged), materials of construction with elastomeric or fluoropolymer seats, nominal size range (DN25-DN1200), design pressure range (PN10-16), as well as operation style and accessories.

Other typical denominations: Double flanged concentric butterfly valves

Applications: Water, HVAC, gases, lubrication, compressed air, process, etc.

Certifications: Concentric butterfly valves declaration of conformity, Concentric butterfly valves declaration of conformity atex, Double flanged butterfly valves wras certification, Double flanged butterfly valves
