Fire Protection Wafer type butterfly valve with gear-box and limit switch. PN 10/16. ANSI 150 lbs - 2113 | Genebre

Name: Fire Protection Wafer type butterfly valve with gear-box and limit switch. PN 10/16. ANSI 150 lbs - 2113 | Genebre
Brand: Genebre
SKU: Fire Protection Wafer type butterfly valve with gear-box and limit switch. PN 10/16. ANSI 150 lbs - 2113 | Genebre

Advanced Safety Unleashed: Fire Protection Wafer Type Butterfly Valve with Gear-Box and Limit Switch. PN 10/16. ANSI 150 lbs - 2113 | Genebre

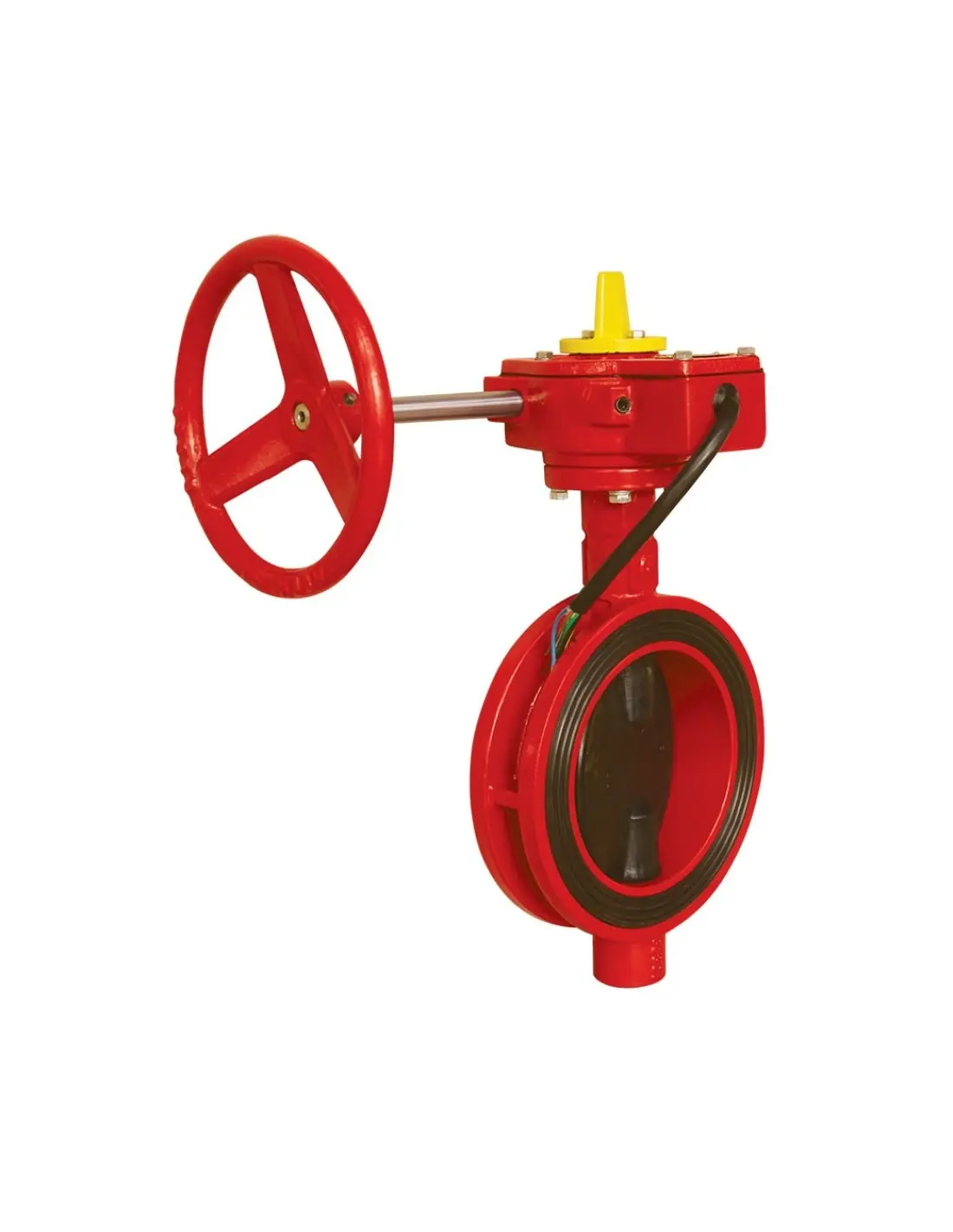

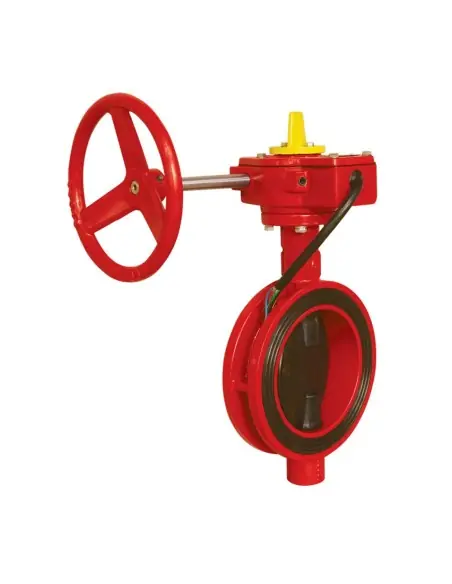

The Fire Protection Wafer Type Butterfly Valve with Gear-Box and Limit Switch. PN 10/16. ANSI 150 lbs - 2113 | Genebre is your go-to solution for reliable fire protection. Designed for superior performance and lasting strength, this valve ensures fast and effective control of water flow in critical fire safety systems.

Key Features & Advantages

Precision Flow Control: The gear-box allows for smooth and accurate operation, giving precise control over opening and closing the valve—crucial in emergency fire protection situations.
Limit Switch Integration: Integrated limit switches provide real-time feedback on the valve’s position, enhancing safety and system automation by letting you know instantly whether the valve is open or closed.
Universal Compatibility: Engineered for both PN 10/16 and ANSI 150 lbs standards, the valve is ideal for a wide variety of fire protection systems and piping networks.
Space-Saving Wafer Design: The compact, lightweight wafer type body makes installation simple, fitting easily between flanges and saving valuable space in mechanical rooms.
Rugged, Reliable Construction: Built with high-quality materials, this valve withstands demanding fire protection environments and provides long-lasting service life with minimal maintenance.
Clear Open/Close Visibility: Thanks to the limit switch feature, checking valve status is quick and easy—perfect for regular inspections and emergency readiness.

Why Choose This Valve for Fire Protection?

Fast Response Time: The gear-box enables easy, quick operation so water flow can be managed instantly during fire emergencies.
Effortless Maintenance: Minimal moving parts and robust components result in fewer breakdowns, reducing downtime and maintenance costs.
Flexible Installation: Compatible with diverse fire protection systems, it adapts seamlessly to your existing setup.
Enhanced Safety: Knowing the exact position of your valve at all times means greater peace of mind and compliance with strict fire safety regulations.

Choose the Fire Protection Wafer Type Butterfly Valve with Gear-Box and Limit Switch. PN 10/16. ANSI 150 lbs - 2113 | Genebre to boost your fire protection system with advanced control, reliability, and safety—just what you need when it matters most.

Datasheet and documents

Description

Body made of ductile iron GGG.40. Disc: D.I + EPDM.

Design according to API 609.

Face to face according to ASME B16.10.

Working pressure 300 PSI. Working temperature: 0ºC +80ºC.

UL/FM certification.

Reference: 2113

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2113 10	BUTTERFLY VALVE WAFER TYPE 2 1/2" UL/FM	1	8.5	1/1
2113 11	BUTTERFLY VALVE WAFER TYPE 3" UL/FM	1	8.967	1/1
2113 12	BUTTERFLY VALVE WAFER TYPE 4" UL/FM	1	10.607	1/1
2113 13	BUTTERFLY VALVE WAFER TYPE 5" UL/FM	1	11.8	1/1
2113 14	BUTTERFLY VALVE WAFER TYPE 6" UL/FM	1	14.384	1/1
2113 16	BUTTERFLY VALVE WAFER TYPE 8" UL/FM	1	26.533	1/1
