Triple Offset
DESCRIPTION

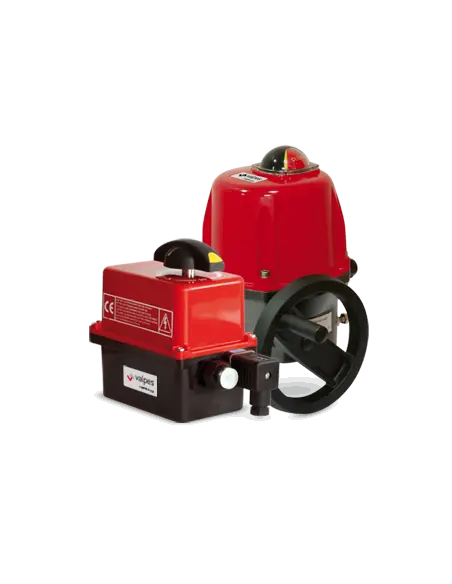

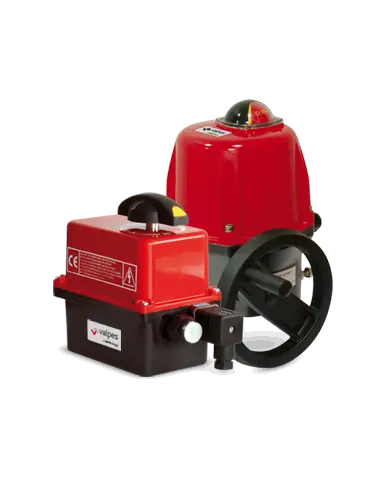

Actuators from 10 to 2400 Nm with emergency function which ensures a return to initial position in case of power failure. This function includes AXMART® Bluetooth®functionality on GS6 models.
COMPATIBLE SERIES
- ER PLUS
- VR/VS
- VRX/VSX - ATEX
- DV/DVX – DNV-GL and ATEX
- VT PLUS
- MT - multiturn
FEATURES
- Duty rating S4 50% (IEC34 standard)
- Temperature: -10°C to +40°C
- On-off control
- Integrated anticondensation heater
- Torque limiter monitored by software
- Failure feedback relay (normal duty, failure)
- Manual override by hand wheel or outgoing shaft
- 4 adjustable limit switches 5A
- Multivoltage actuators
- Enclosure from IP66 up to IP68 10 meters during 72 hours
CUSTOMER BENEFITS
- All in one: no additional wiring required
- "Fail to close" or "Fail to open" easy switch with AXMART v3 application
- Real-time battery charge and system status information
- Power shut off after 2mn to avoid battery discharging
- Quick and easy replacement of the battery
- Bluetooth® connection for monitoring, programming, control and setup the actuator with AXMART interface.
