DESCRIPTION

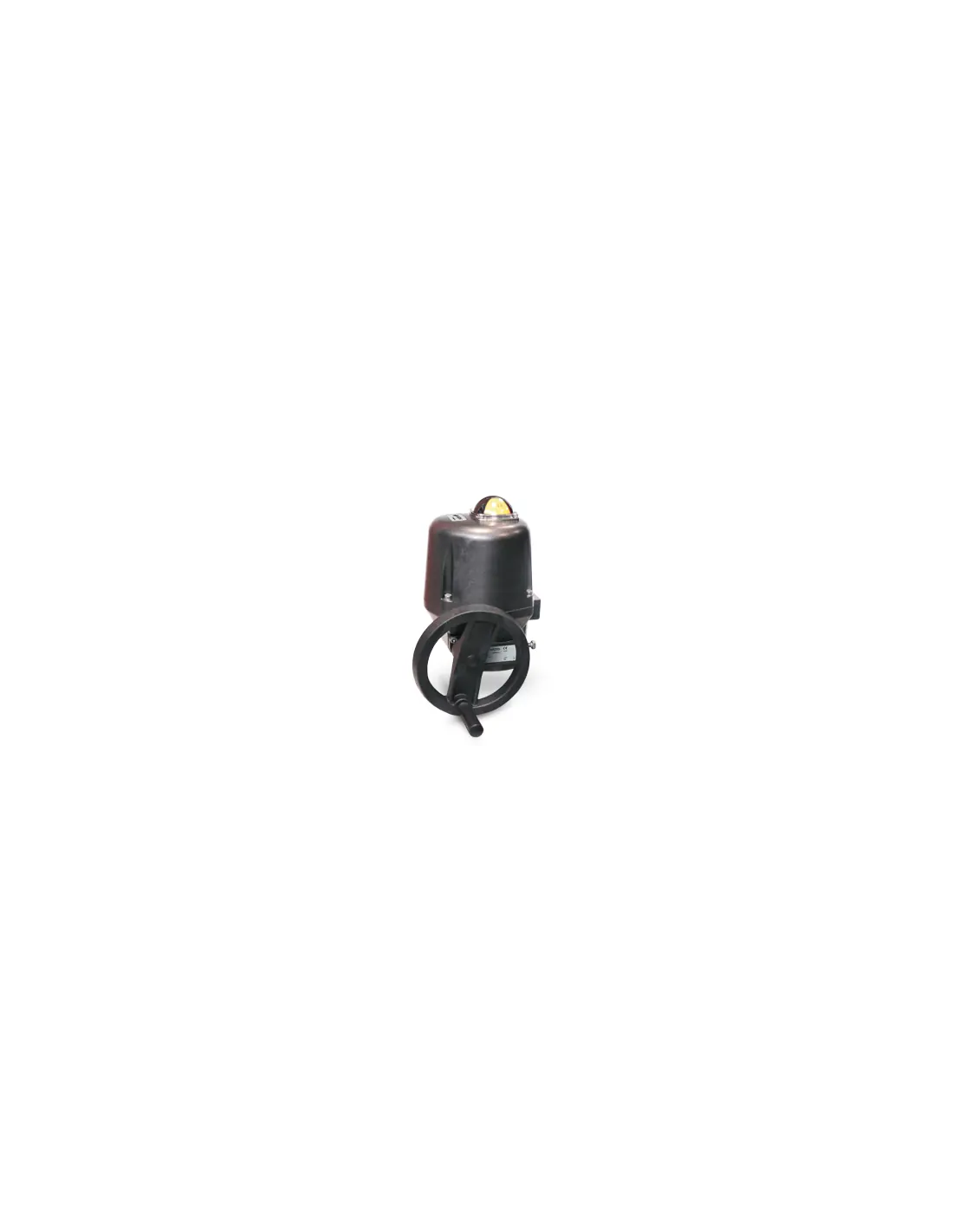

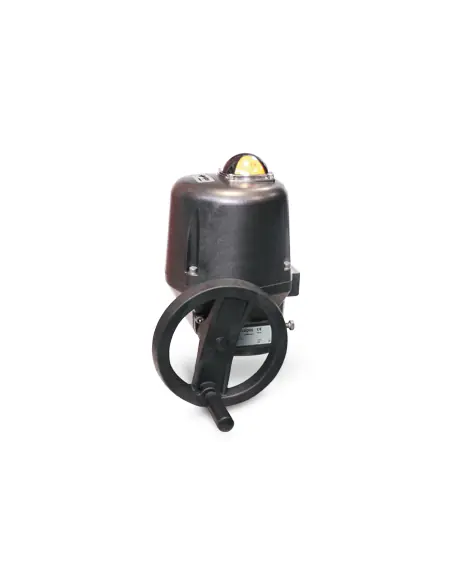

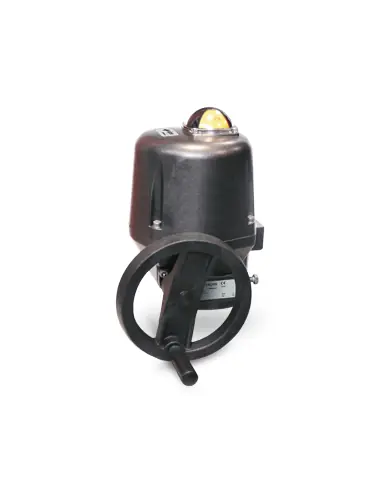

Electric actuator with aluminium housing designed for low temperature environment (-50 °C), with manual override by hand wheel and for torques from 25 to 300Nm. Accordance with CE-ROHS-REACH Directives.
VERSIONS
- 90° standard version and 180° or 270° version (on request)
- Version for marine applications. High durability coating, 15-year warranty
- Available with:
POSI - proportional control
3 POSITIONS
BLUETOOTH®
Modbus-RTU
TECHNICAL DATA
- Multivoltage actuator:
100V to 240V 50/60Hz (100V to 350V DC)
15V to 30V 50/60Hz (12V to 48V DC)
- Enclosure IP68 5 m / 72 h
- Duty rating: S4 50% (CEI34)
- Working temperature: -50°C to +70°C
- 3 modulating points control or on-off
- 4 adjustable limit switches 5A

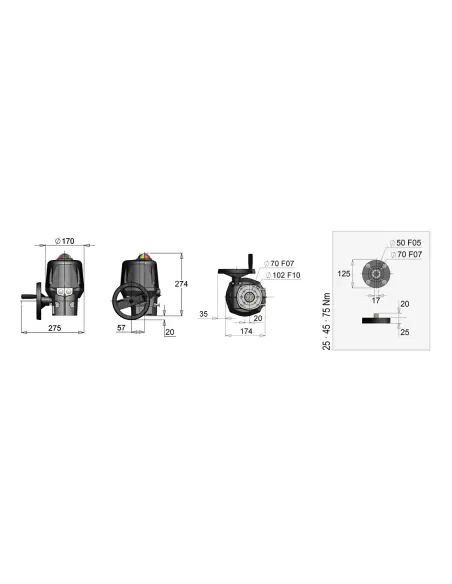

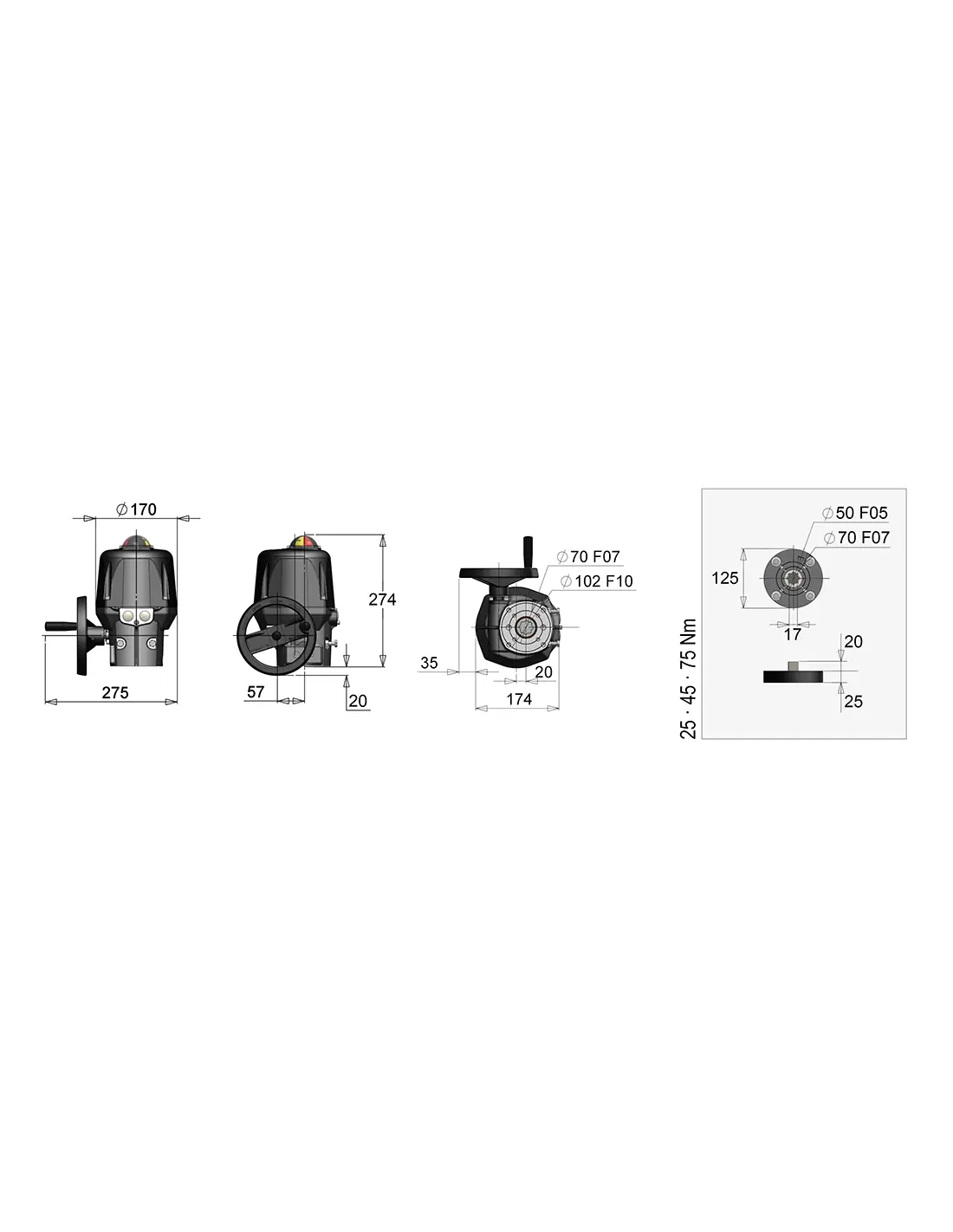

- Connection according to ISO5211
F05/F07 star 17 (25-75 Nm)
F07/F10 star 22 (100-300 Nm)
- Visual position indicator
- Integrated 30 W heating unit
- Torque limiter monitored by software
- Failure feedback relay (normal duty, failure)
- RS485 connection
- Mechanical limit stops
- 2 ISO M20 (1/2" NPT adapters available as option)
- Weight: 6.4 Kg
