Rotary

Rotary electric actuators are used for automated operation of quarter-turn valves, including butterfly valves, ball valves, and plug valves, in industrial services such as water, air, low-pressure steam, HVAC, water treatment, and process fluid handling. Actuator selection should be based on valve operating torque under differential pressure, 90° travel time, supply voltage, duty cycle, enclosure protection, control signal, and integration with PLC, DCS, or local control panels.

This category includes Bernard Controls and Valpes actuators for on-off, positioning, and modulating duty. Bernard AQ units cover torque ranges from 50 to 10,000 Nm, with electromechanical SWITCH or smart LOGIC control options, IP68 enclosure, C4 corrosion category, operating temperature from -20 to +70 °C, and low-temperature execution down to -40 °C. They support Class A on-off duty, Class B inching/positioning duty, and Class III modulating duty, with Modbus RTU and Profibus DPV1 communication available on LOGIC versions.

Valpes ER PLUS actuators cover 10 to 100 Nm, with PA6 housing rated UL 94 V-0, IP66 protection, S4 50% duty rating, and operating temperature from -10 to +55 °C. Available control modes include on-off and 3-point modulating control, with adjustable limit switches, RS485 communication, mechanical 90° travel stops, and optional emergency backup, proportional control, 3-position configuration, Bluetooth, and Modbus RTU.

For hazardous or corrosive areas, ATEX and marine/heavy-duty executions are available, including Valpes DV/DVX models with aluminium housing, DNV-GL and ATEX approval, IP68 immersion rating to 10 m for 72 h, torque output from 25 to 300 Nm, ISO 5211 mounting interface, and configurable 90°, 180°, or 270° rotation.

During installation, verification should include torque margin, ISO 5211 flange compatibility, stem drive adaptation, limit switch setting, manual override function, anti-condensation heater, cable entries, condensation risk, and actual valve torque after seat ageing, deposit buildup, or extended service exposure.

Electric Actuator - AT Range | Bernard Controls | Philippopoulos s.a.

Electric Actuator - AT Range | Bernard Controls

Electric Actuator - AT Range | Bernard Controls
Bernard Controls
Bernard Controls AT Electric Actuator Bernard Controls AT series are multi-turn electric actuators designed for industrial isolation and control valves. For quarter-turn applications, they are paired with appropriate gearboxes for butterfly, ball, or plug valves. Direct output torque covers 12–500 Nm; higher torques are achievable with gear reducers as...
View
Electric Actuator - AQ Range | Bernard Controls | Philippopoulos s.a.

Electric Actuator - AQ Range | Bernard Controls

Electric Actuator - AQ Range | Bernard Controls
Bernard Controls
Bernard Controls AQ Electric Quarter-Turn Actuator The AQ series comprises electric quarter-turn actuators for ball valves, butterfly valves, and plug valves. Direct output torque ranges from 50–1,000 Nm; with gearboxes, applications up to 10,000 Nm are supported. Higher torques are available for special projects upon request. Control Versions AQ SWITCH:...
View
Electric Actuator - AQL1 | Bernard Controls | Philippopoulos s.a.

Electric Actuator - AQL1 | Bernard Controls

Electric Actuator - AQL1 | Bernard Controls
Bernard Controls
Bernard Controls AQL1 Electric Quarter-Turn Actuator The Bernard Controls AQL1 is part of the AQL series for quarter-turn valves, including ball, butterfly, and plug valves. This series covers direct output torques from 15–70 Nm, targeting small industrial isolation or open/close valves. Technical Specifications Operating classes: On-Off Class A and...
View

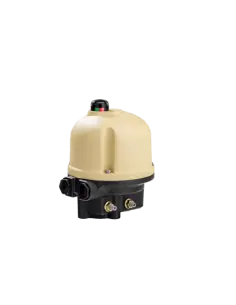

Electric Actuator - AQL7 | Bernard Controls | Philippopoulos s.a.

Electric Actuator - AQL7 | Bernard Controls

Electric Actuator - AQL7 | Bernard Controls
Bernard Controls
Bernard Controls AQL7 Electric Quarter-Turn Actuator The AQL7 is an electric quarter-turn actuator designed for small isolation or basic modulating valves. In the AQL series technical documentation, it is referenced as AQ7L, alongside AQ1L and AQ3L, with a direct-mount torque range of 15–70 Nm. Technical Specifications Compatible with ball, butterfly,...
View
Electric Actuator - AQXL Range | Bernard Controls | Philippopoulos s.a.

Electric Actuator - AQXL Range | Bernard Controls

Electric Actuator - AQXL Range | Bernard Controls
Bernard Controls
Bernard Controls AQXL Electric Explosion-Proof Actuator The AQXL series comprises electric actuators for quarter-turn operation, designed for small ball valves, butterfly valves, and plug valves in hazardous areas. Main models are AQX4L and AQX7L, providing 40 Nm and 70 Nm torque for quarter-turn applications. Operation and Control Duty classification:...
View
Electric Actuator - BT Range | Bernard Controls | Philippopoulos s.a.

Electric Actuator - BT Range | Bernard Controls

Electric Actuator - BT Range | Bernard Controls
Bernard Controls
Bernard Controls BT Multi-Turn Electric Actuator The BT series comprises multi-turn electric actuators designed for valves with rising or rotating stems, such as gate valves, globe valves, and penstocks. For quarter-turn applications, the actuator is paired with a suitable gearbox. Direct torque range is 30–500 Nm, extendable up to 32,000 Nm with gear...
View

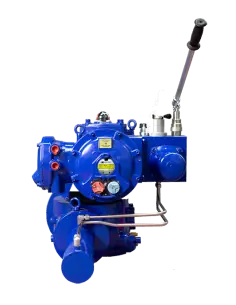

Electric Actuator - FSE Range | Bernard Controls | Philippopoulos s.a.

Electric Actuator - FSE Range | Bernard Controls

Electric Actuator - FSE Range | Bernard Controls
Bernard Controls
Bernard Controls FSE Electric Fail-Safe Actuator The FSE series is an electric actuator with integrated hydraulic circuit and mechanical spring return, designed for process safety valves. It is specified where the valve must move to a defined safe position in the event of power loss, e.g. ESD valves, high-pressure ball valves, and triple-offset butterfly...
View
Electric Actuator - FQ Range | Bernard Controls | Philippopoulos s.a.

Electric Actuator - FQ Range | Bernard Controls

Electric Actuator - FQ Range | Bernard Controls
Bernard Controls
Bernard Controls FQ Electric Fail-Safe Actuator The FQ series is a quarter-turn electric actuator with mechanical spring return, designed for ball, butterfly, and plug valves. It is specified where the valve must automatically move to a defined safe position upon loss of power or emergency shutdown signal. Direct mounting torque range: 40–500 Nm....
View
Electric Actuator - ST Range | Bernard Controls | Philippopoulos s.a.

Electric Actuator - ST Range | Bernard Controls

Electric Actuator - ST Range | Bernard Controls
Bernard Controls
Bernard Controls ST Multi-Turn Electric Actuator The ST series comprises multi-turn electric actuators with weatherproof enclosures, designed for gate, globe, and other multi-turn valve applications. For quarter-turn valves, the actuator is paired with a suitable gearbox. Direct output torque covers 60–2,200 Nm, with engineered solutions available up to...
View
Electric Actuator - STX Range | Bernard Controls | Philippopoulos s.a.

Electric Actuator - STX Range | Bernard Controls

Electric Actuator - STX Range | Bernard Controls
Bernard Controls
Bernard Controls STX Electric Explosion-Proof Actuator The STX series comprises multi-turn electric actuators certified for Ex d / NEMA 7 hazardous areas, suitable for gate, globe, and multi-turn valve applications. For quarter-turn service (ball, butterfly, or plug valves), the actuator is paired with a gearbox. Direct mount torque range is 25–2,200 Nm;...
View

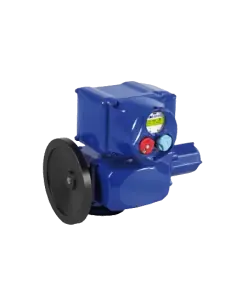

Electric Actuator - SQ Range | Bernard Controls | Philippopoulos s.a.

Electric Actuator - SQ Range | Bernard Controls

Electric Actuator - SQ Range | Bernard Controls
Bernard Controls
Bernard Controls SQ Electric Quarter-Turn Actuator The SQ series comprises electric actuators for quarter-turn (1/4 turn) operation, suitable for ball valves, butterfly valves, plug valves, dampers, and louvers. Direct output torque ranges from 40–800 Nm; with gearboxes, up to 10,000 Nm. Higher torques are available upon application review for special...
View

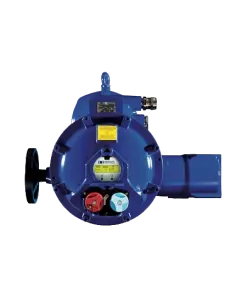

Electric Actuator - SQX Range | Bernard Controls | Philippopoulos s.a.

Electric Actuator - SQX Range | Bernard Controls

Electric Actuator - SQX Range | Bernard Controls
Bernard Controls
Bernard Controls SQX Electric Explosion-Proof Actuator The SQX series comprises electric quarter-turn actuators for ball valves, butterfly valves, plug valves, and dampers in hazardous areas requiring explosion-proof protection. Direct torque output ranges from 80–800 Nm, with engineered solutions up to 1,000,000 Nm using appropriate gearboxes. Standards...
View
Electric Actuator - Modulating Range | Bernard Controls | Philippopoulos s.a.

Electric Actuator - Modulating Range | Bernard Controls

Electric Actuator - Modulating Range | Bernard Controls
Bernard Controls
Bernard Controls Modulating Electric Actuator The Modulating series is designed for continuous position control of valves, including quarter-turn, multi-turn, and linear types. These actuators are specified when the valve requires frequent incremental adjustments from a process controller, rather than simple open/close operation. Duty Classification...
View
Electric Actuator - NUCLEAR QUALIFIED | Bernard Controls | Philippopoulos s.a.

Electric Actuator - NUCLEAR QUALIFIED | Bernard Controls

Electric Actuator - NUCLEAR QUALIFIED | Bernard Controls
Bernard Controls
Bernard Controls Nuclear Qualified Electric Actuators The Nuclear Qualified series includes electric actuators for nuclear facilities, divided into NC, Nuc OC, and Nuc IC applications. Nuc IC variants are specified for operation inside containment, requiring functionality under ionizing radiation, seismic events, and LOCA (Loss of Coolant Accident)...
View
Electric Actuator - DV / DVX (ATEX) | Valpes | Philippopoulos s.a.

Electric Actuator - DV / DVX (ATEX) | Valpes

Electric Actuator - DV / DVX (ATEX) | Valpes
Valpes
VALPES DV / DVX ATEX Electric Quarter-Turn Actuator VALPES DV / DVX actuators are electric quarter-turn units for ball valves, butterfly valves, and plug valves. The DVX series is specified for applications requiring DNV-GL and ATEX compliance, typically in shipbuilding, marine, and industrial installations with hazardous (explosive) atmospheres. DVX...
View
Electric Actuator - ER PLUS | Valpes | Philippopoulos s.a.

Electric Actuator - ER PLUS | Valpes

Electric Actuator - ER PLUS | Valpes
Valpes
VALPES ER PLUS Electric Quarter-Turn Actuator The VALPES ER PLUS is an electric actuator designed for quarter-turn (1/4 turn) operation of ball valves, butterfly valves, and plug valves. It covers nominal torque ratings of 10, 20, 35, 60, and 100 Nm and is suitable for on-off or 3-point control where 90° electric rotation is required without instrument...
View
Electric Actuator - ER PREMIER | Valpes | Philippopoulos s.a.

Electric Actuator - ER PREMIER | Valpes

Electric Actuator - ER PREMIER | Valpes
Valpes
VALPES ER PREMIER Electric Quarter-Turn Actuator The VALPES ER PREMIER is an electric quarter-turn actuator designed for automation of ball valves, butterfly valves, and plug valves. The ER PREMIER series covers torque ranges from 20–100 Nm, with a rotation angle of 90° and mechanical stops at 0° and 90° positions. Technical Specifications Control:...
View
Electric Actuator - Marine Version | Valpes | Philippopoulos s.a.

Electric Actuator - Marine Version | Valpes

Electric Actuator - Marine Version | Valpes
Valpes
VALPES Electric Actuator – Marine Version The VALPES Marine version is an anti-corrosive coated configuration for electric actuators of the V range with aluminum housing. Designed for marine, offshore, and corrosive environments, selection is based not only on torque but also on surface protection, humidity resistance, and enclosure sealing. Technical...
View
Electric Actuator - MT | Valpes | Philippopoulos s.a.

Electric Actuator - MT | Valpes

Electric Actuator - MT | Valpes
Valpes
VALPES MT Multi-Turn Electric Actuator The VALPES MT is a multi-turn electric actuator designed for linear valves (e.g., gate, globe) or for driving gearboxes. Selection is based on torque, number of spindle turns, travel time, and connection interface, not as a simple quarter-turn actuator. Technical Specifications Torque range: 25, 50, 75 Nm Speed: 22...
View
Electric Actuator - VR | Valpes | Philippopoulos s.a.

Electric Actuator - VR | Valpes

Electric Actuator - VR | Valpes
Valpes
VALPES VR Electric Quarter-Turn Actuator VALPES VR is an electric quarter-turn actuator designed for ball valves, butterfly valves, plug valves, and 3-way valves. Models VR25, VR45, VR75 correspond to maximum torques of 25, 45, and 75 Nm, with nominal torques of 20, 35, and 60 Nm respectively. Technical Specifications Rotation: 90° standard, 180° or 270°...
View
Electric Actuator - VRX (ATEX) | Valpes | Philippopoulos s.a.

Electric Actuator - VRX (ATEX) | Valpes

Electric Actuator - VRX (ATEX) | Valpes
Valpes
VALPES VRX ATEX Electric Quarter-Turn Actuator VALPES VRX ATEX is an electric quarter-turn actuator designed for ball valves, butterfly valves, and plug valves in hazardous (explosive atmosphere) areas. VRX models provide 25, 45, and 75 Nm torque, with ISO 5211 F05/F07 mounting and 17 mm star drive. Operation and Electrical Data Standard rotation 90°;...
View
Electric Actuator - VS | Valpes | Philippopoulos s.a.

Electric Actuator - VS | Valpes

Electric Actuator - VS | Valpes
Valpes
VALPES VS Electric Quarter-Turn Actuator The VALPES VS is an electric actuator designed for quarter-turn (1/4 turn) operation of ball valves, butterfly valves, and plug valves. Torque range covers 40–300 Nm. Standard rotation is 90°, with optional 180° or 270° travel. The housing is aluminum with C4-class coating; cover options include PA6 UL94 V-0 or...
View
Electric Actuator - VT | Valpes | Philippopoulos s.a.

Electric Actuator - VT | Valpes

Electric Actuator - VT | Valpes
Valpes
VALPES VT Electric Quarter-Turn Actuator The VALPES VT is an electric quarter-turn actuator designed for butterfly valves, ball valves, and plug valves where higher torque is required. Torque range covers 600–2400 Nm. Standard rotation is 90°, with optional 180° or 270° versions available. Technical Specifications Power supply: 400 V three-phase, 50 Hz...
View
Electric Actuator - VT PLUS | Valpes | Philippopoulos s.a.

Electric Actuator - VT PLUS | Valpes

Electric Actuator - VT PLUS | Valpes
Valpes
VALPES VT PLUS Electric Quarter-Turn Actuator The VALPES VT PLUS is an electric quarter-turn actuator designed for high-torque butterfly valves, ball valves, and plug valves. The series covers a torque range of 400–2400 Nm, with standard rotation of 90° and optional 180° or 270° for 400, 600, and 1000 Nm models. Technical Specifications Power supply:...
View
