DESCRIPTION

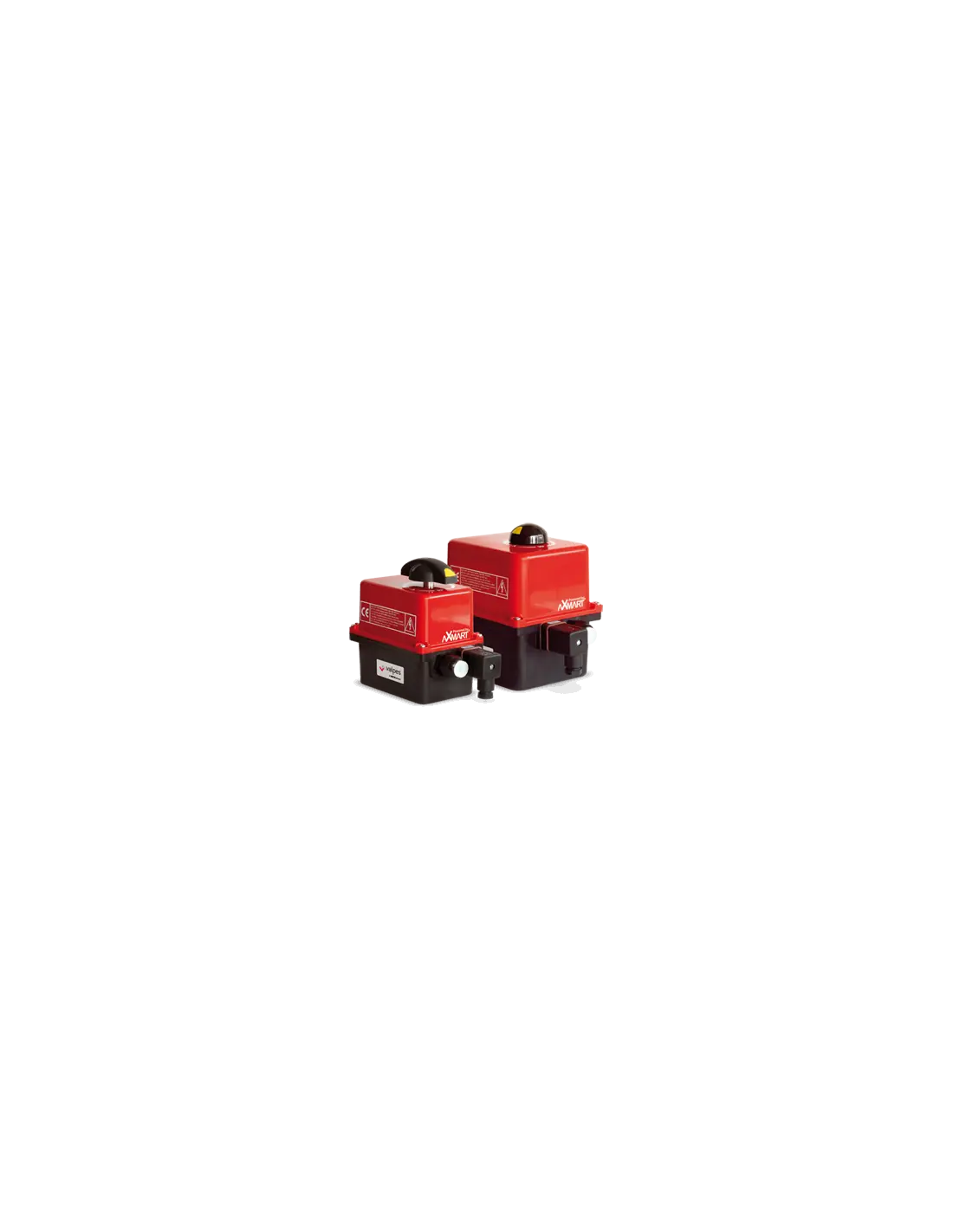

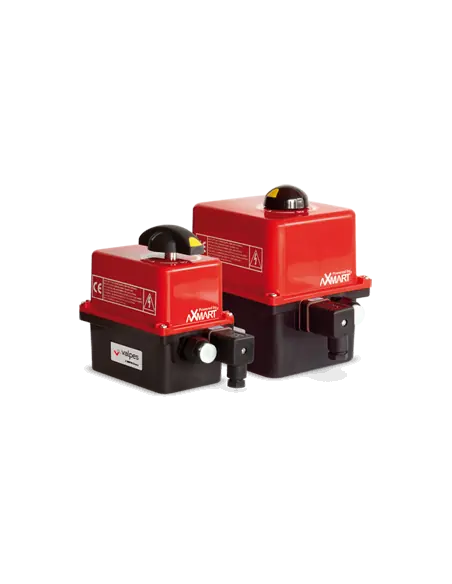

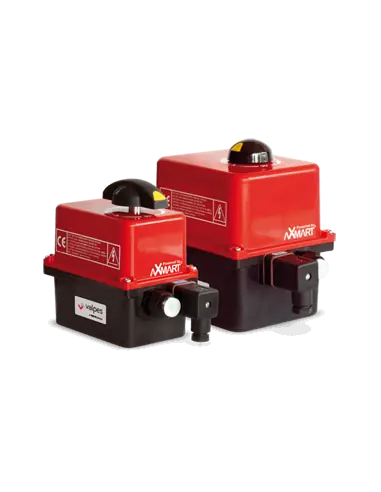

90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm and in accordance with CE-ROHS-REACH Directives.
VERSIONS
- Standard version: 90° - MULTIVOLT: operating time from 6s to 22s (without load)
- FASTSTOP 10-20Nm version 12/24V AC/DC): operating time from 1.5s to 6s
TECHNICAL DATA
- Duty rating S4 30% (IEC34)
- Temperature: -10°C to +55°C
- Enclosure: IP65
- Weight: 1Kg - 2.1Kg
- Multivoltage actuator:
100V to 240V 50/60Hz (100V to 350V DC)
24V 50/60Hz (24V DC)
- On-off or 3 modulating points control
- 4 adjustable limit switches 5A
- Removable adaptation plates:

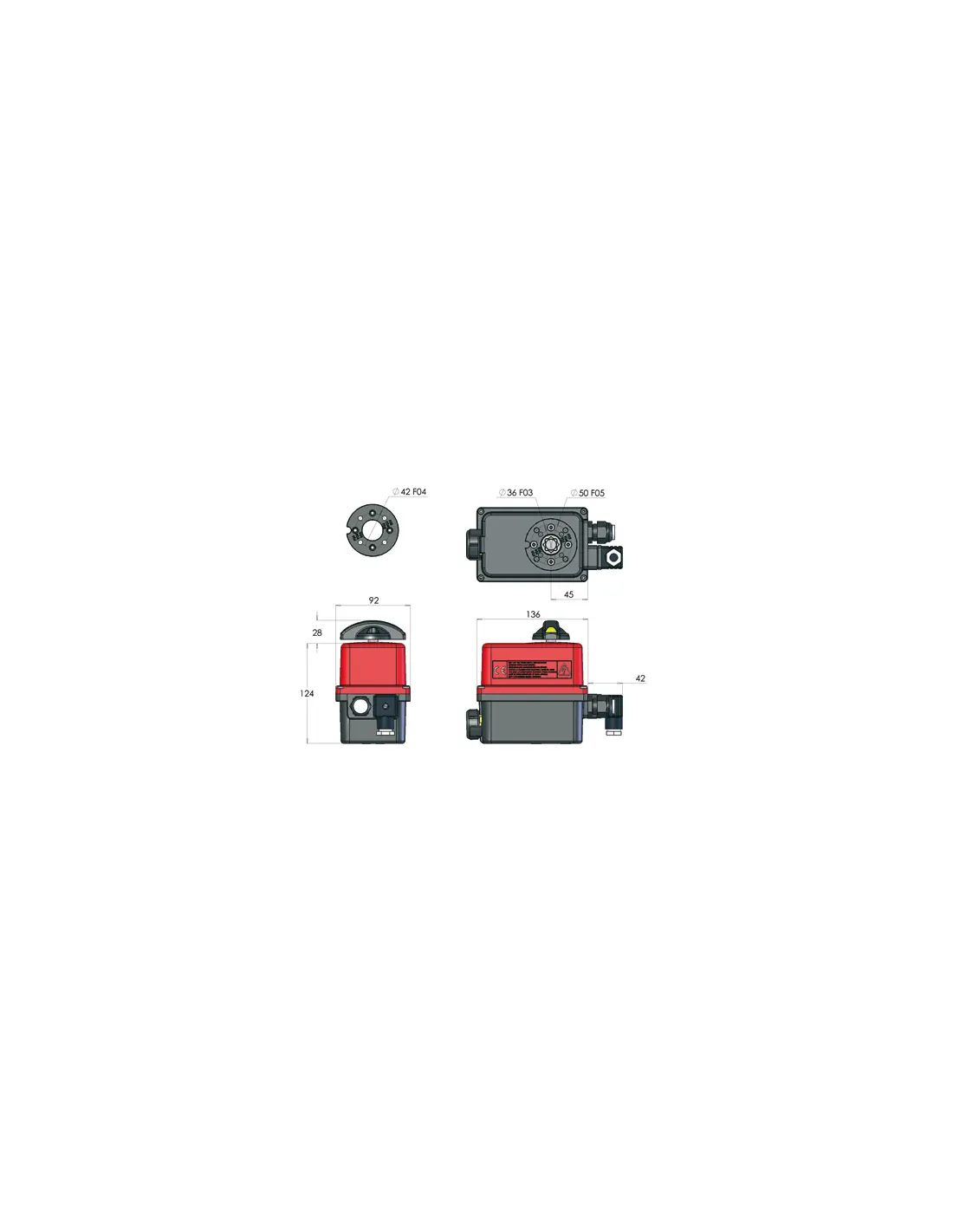

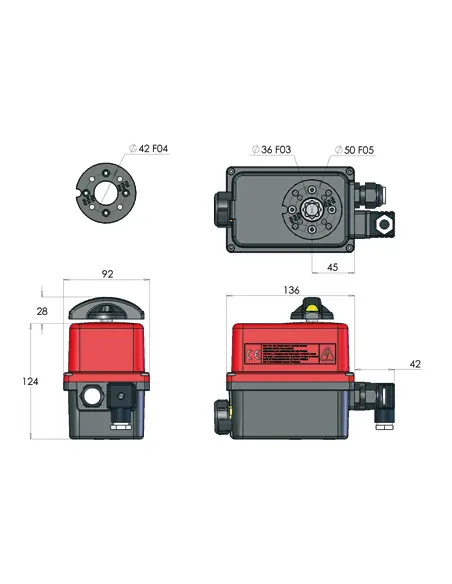

ER 20Nm: F03-F04-F05

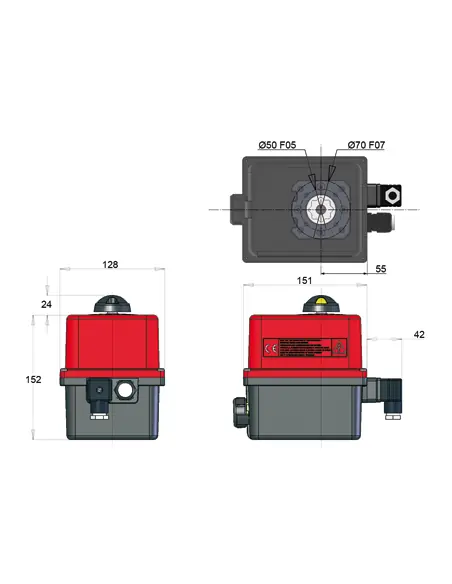

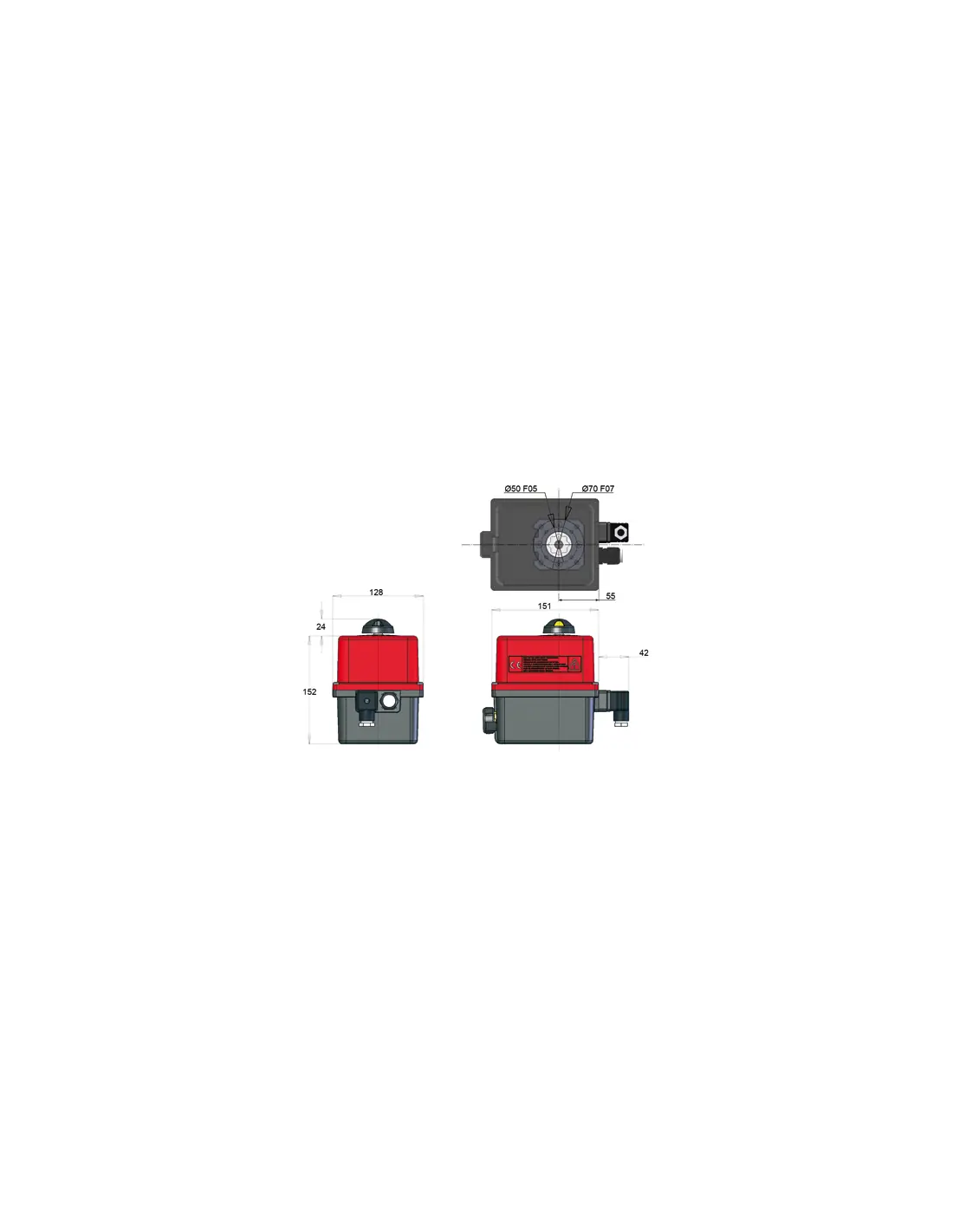

ER 35-100Nm: F05-F07
- Star drive nut
- Secured manual override
- Modular position indicator
- Torque limiter monitored by polyswitch
- Mechanical travel stops at 90°
- 1x 3P+T DIN43650 connector + 1x ISO M20
