DESCRIPTION

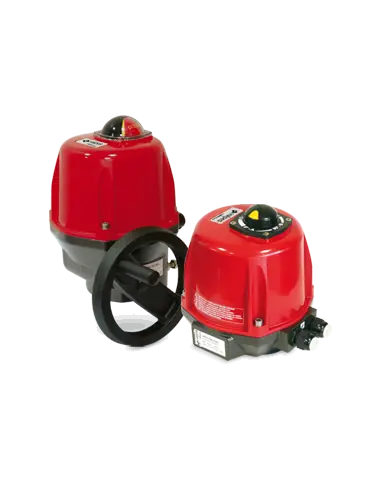

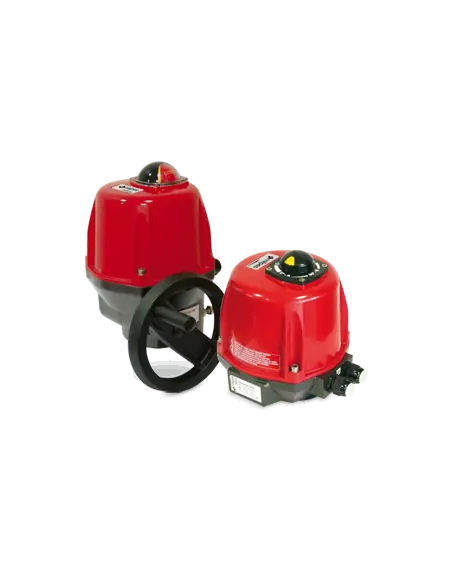

Actuators from 25 to 2400 Nm with combination of BBPR emergency function and 4-20 mA or 0-10 V analogic positioning. This version includes AXMART® Bluetooth®option.
COMPATIBLE SERIES
- VR/VS
- VRX/VSX - ATEX
- DV/DVX – DNV-GL and ATEX
- VT PLUS
- MT - multiturn
FEATURES
- Duty rating S4 50% (IEC34 standard)
- Temperature: -10°C to +40°C
- Proportional control (4-20 mA or 0-10 V range)
- Manual override by hand wheel or outgoing shaft
- 4 adjustable limit switches 5A
- Multivoltage actuator:
- Enclosure IP68 up to 10 meters during 72 hours
CUSTOMER BENEFITS
- All in one: no additional wiring required
- Real-time battery charge and system status information
- Power shut off after 2mn to avoid battery discharging
- Quick and easy replacement of the battery
- Bluetooth® connection for monitoring, programming, control and setup the actuator with AXMART interface.
- 2 initial position settings: »normally open» or »normally closed»
- Setpoint and feedback signal 4-20 mA or 0-10 V
- Reversible signals (example: 20-4 mA)
- Anticondensation heater
- Electronic torque limiter
- Failure feedback relay
- Rotation up to 180° or 270° (on request)
- Preset in factory
