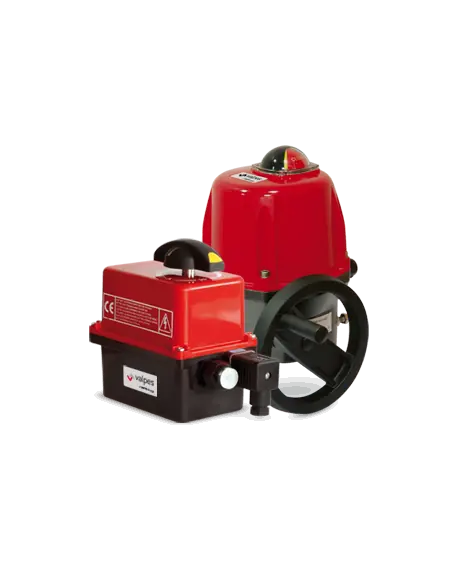

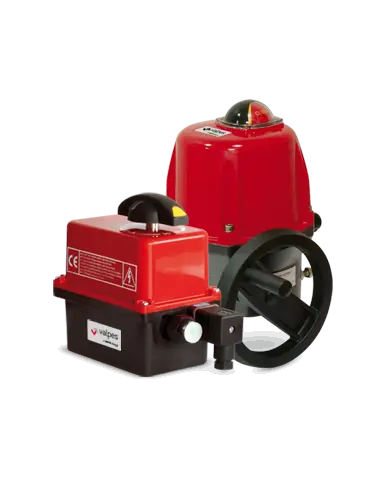

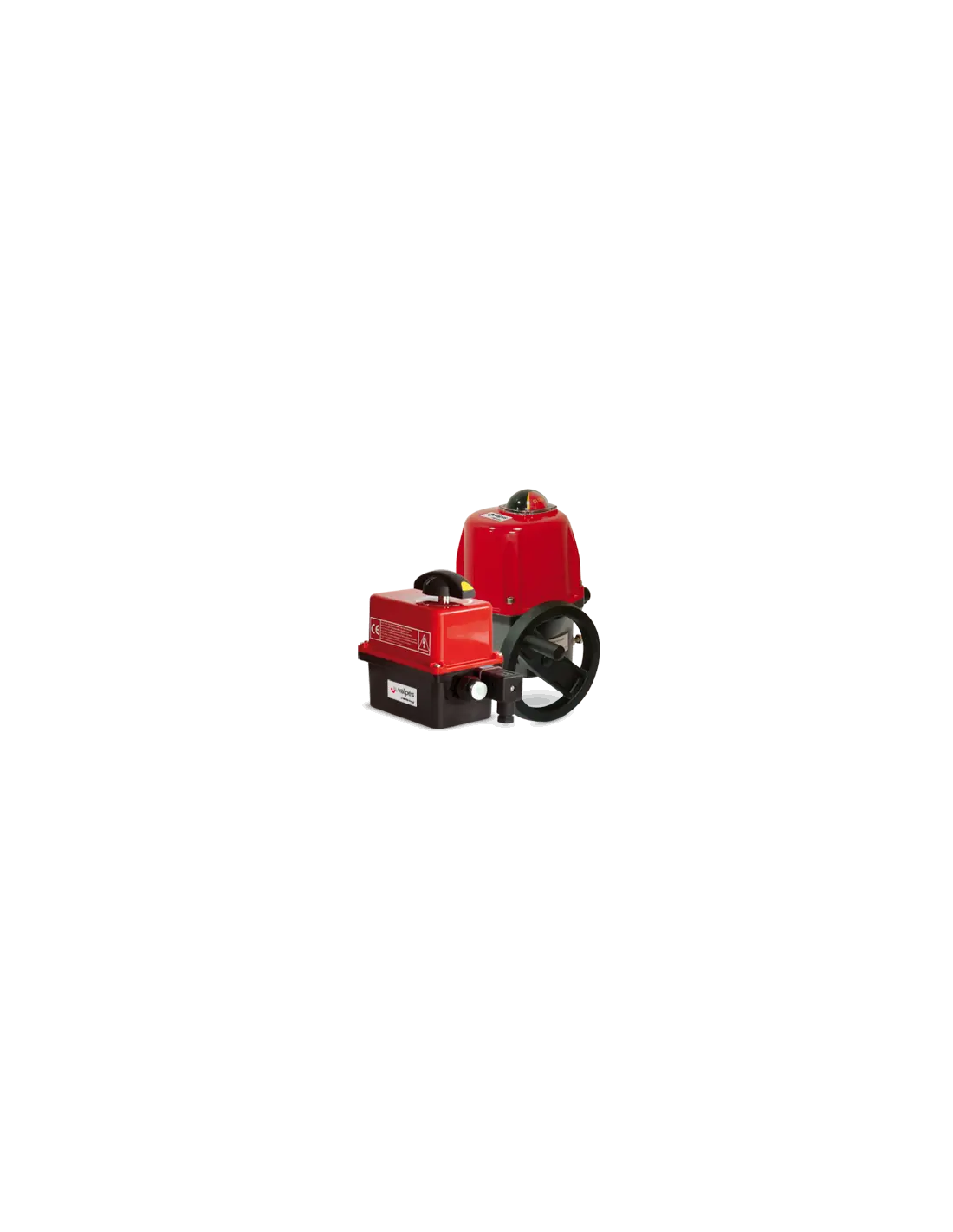

VALPES Electric Actuator with 3 Positions

The 3 positions / GF3 function is implemented in VALPES electric actuators for valves requiring three discrete positions, rather than continuous analog modulation. This is relevant for 3-way valves or applications where an intermediate position is required before reaching fully open or closed states. Torque range covers 10 to 2400 Nm, depending on actuator series.

Operation

The GF3 option enables three-position control. Standard factory setting is 0° / 90° / 180°, suitable for most 3-way valves. Custom angles can be specified at order; available rotation can reach up to 270° depending on series.

Compatible Series

  • ER PLUS
  • VR / VS
  • VRX / VSX ATEX
  • LT low temperature
  • DV / DVX DNV-GL and ATEX
  • VT PLUS

Signals and Feedback

Three positions are controlled via 4 limit switches: FCO, FCF, FCIO, and FCIF. Feedback is provided by 3 auxiliary contacts (FC1, FC2, FC3). FC1/FC2 correspond to end positions; FC3 indicates the intermediate position.

Technical Specifications

  • Duty rating: S4 50% (IEC34)
  • Operating temperature: -20 to +70 °C
  • Integrated anti-condensation heater
  • Manual override via handwheel or output shaft
  • Multivoltage supply
  • Enclosure: IP66 to IP68, 10 m / 72 h (series dependent)
  • Electronic torque limiter and fault feedback

Applications

Used with 3-way valves, bypass lines, filling/draining, mixing, flow direction change, and processes requiring a mechanically defined intermediate position. Media compatibility is determined by the valve; actuator selection is based on torque, rotation angle, enclosure rating, supply voltage, and feedback logic.

FAQ

When is 3 positions selected over POSI?
When three fixed positions are required, not continuous 0–10 V or 4–20 mA control.

What is checked during maintenance?
Limit switches, intermediate position, cable glands, enclosure sealing, manual override, torque limiter, and fault feedback signal.

Datasheet and documents

Description

DESCRIPTION

Actuators from 10 to 2400 Nm with an intermediate position between 0° and 90°, 180° or 270°. Can be used 3-way valve or for any application which requires a partial opening/closing before final position.

COMPATIBLE SERIES

  • ER PLUS
  • VR/VS
  • VRX/VSX - ATEX
  • LT- low temperatures
  • DV/DVX – DNV-GL and ATEX
  • VT PLUS

FEATURES

  • Duty rating S4 50% (IEC34 standard)
  • Temperature: -20°C to +70°C
  • Integrated anticondensation heater
  • Manual override by hand wheel or outgoing shaft
  • Multivoltage actuators
  • Enclosure from IP66 up to IP68 10 meters during 72 hours

CUSTOMER BENEFITS

  • 7 limit switches
  • Electronic torque limiter
  • Failure report
  • Rotation up to 270°
  • Preset in factory

couple-10-2400.png    IP68.png    fdm 50%    resiste.png    3-positions.png

ce certification    sa certification    eac certification     ukca certification
