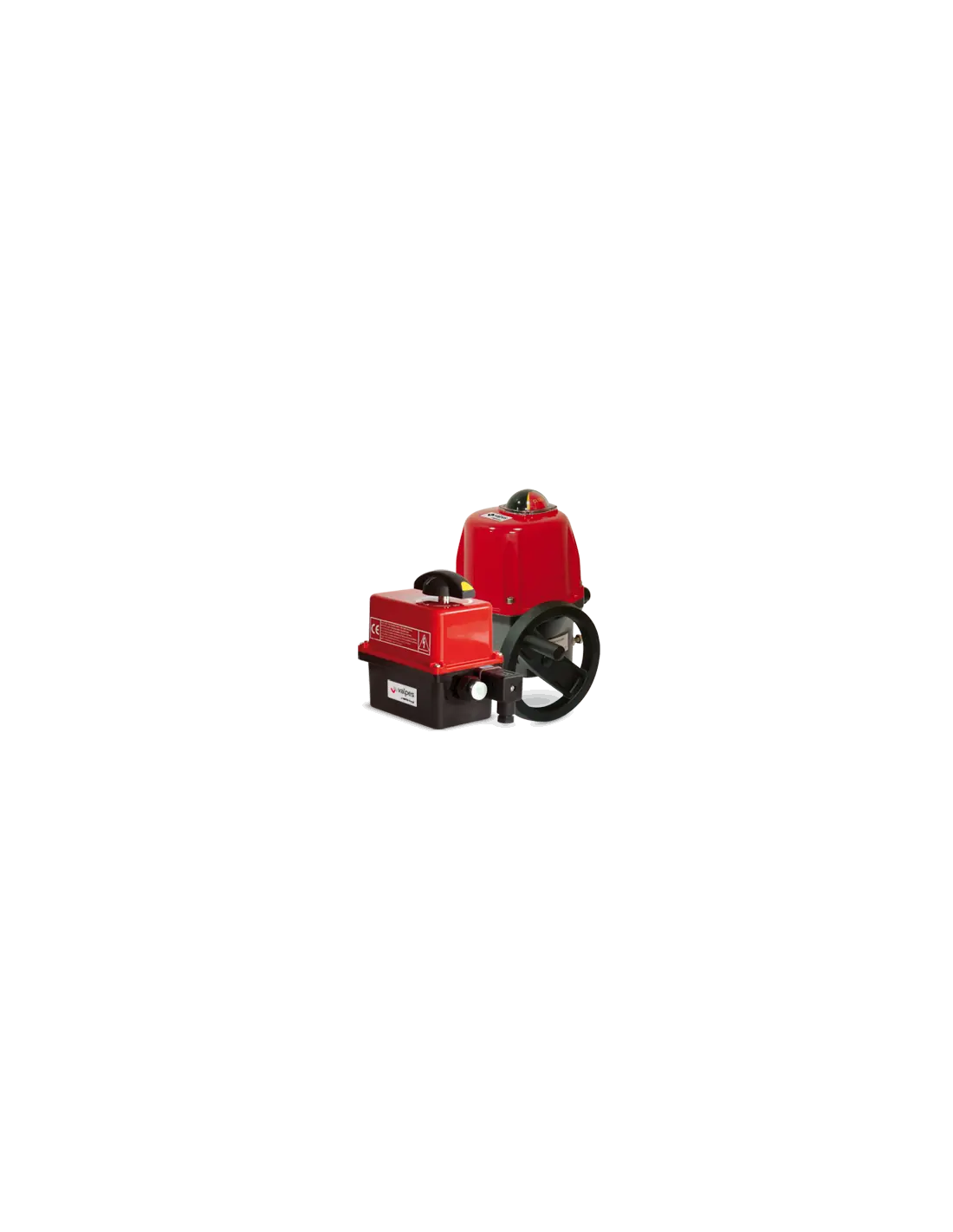

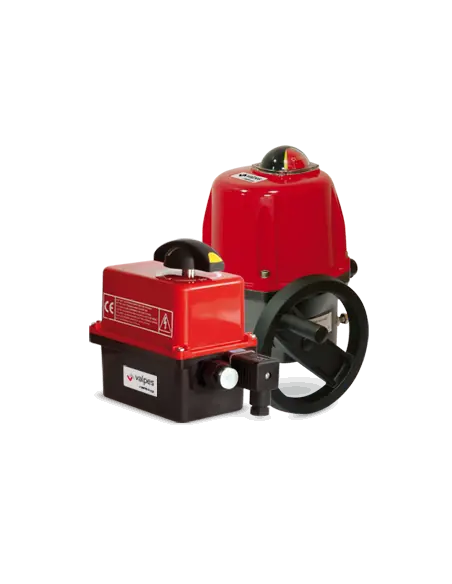

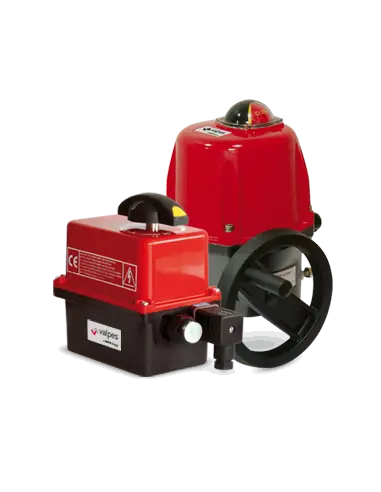

VALPES Electric Actuator with Bluetooth / AXMART

The VALPES Bluetooth module enables local parameterization, status monitoring, and functional testing of electric actuators via the AXMART v3 app (Android/iOS). Applicable for actuators rated from 10 to 2400 Nm, depending on series and control configuration.

Compatible Series

Bluetooth functionality is available for:

ER PLUS
VR / VS
LT (Low Temperature)

Standard on VT PLUS, MT (Multiturn), and actuators GS6 BBPR, POSI-BBPR, 3-position-BBPR.

Parameterization Functions

AXMART allows real-time adjustment of actuator parameters, execution of functional tests, and access to operation logs. For BBPR GS6 variants, safety position is configurable. POSI versions support setpoint, feedback, and electrical logic configuration.

Installation Context

Wireless access is practical for actuators installed in pits, above ceilings, at height, or in locations with restricted physical access. Bluetooth does not replace requirements for correct wiring, torque selection, IP rating, or mechanical interface per ISO 5211 or ISO 5210, as applicable.

Operation Scheduling

The integrated timer supports up to 20 operations per week without PLC commands, suitable for simple periodic movements where autonomous local sequencing is permitted and continuous central supervision is not required.

Applications

Typical uses: water and air valves, HVAC, marine piping, auxiliary industrial circuits, and scenarios requiring expedited commissioning or maintenance. Media compatibility is determined by the valve; Bluetooth is limited to actuator function access.

FAQ

When is Bluetooth selection justified?
When local configuration is needed without panel access or where actuator access is physically constrained.

What is checked during maintenance?
Operation logs, setpoint/feedback signals, BBPR safety position, limit switches, cable glands, IP sealing, and torque matching to valve specification.

Datasheet and documents

Description

DESCRIPTION

Actuators from 10 to 2400 Nm with Bluetooth® unit and manage by. AXMART v3, the latest evolution of our actuator management application. AXMART is available on Android and IOS.

COMPATIBLE SERIES

ER PLUS
VR/VS
LT – low temperatures

AS A STANDARD ON

VT PLUS

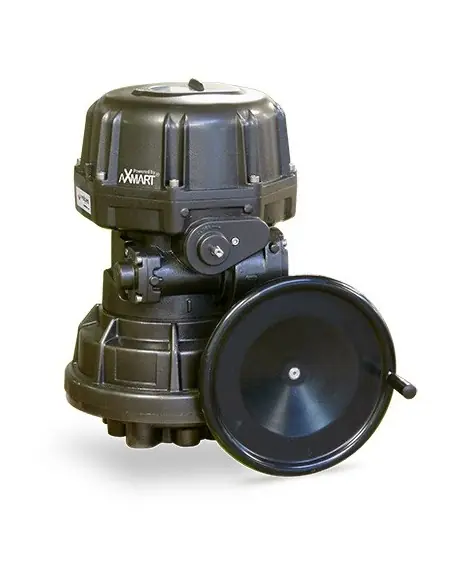

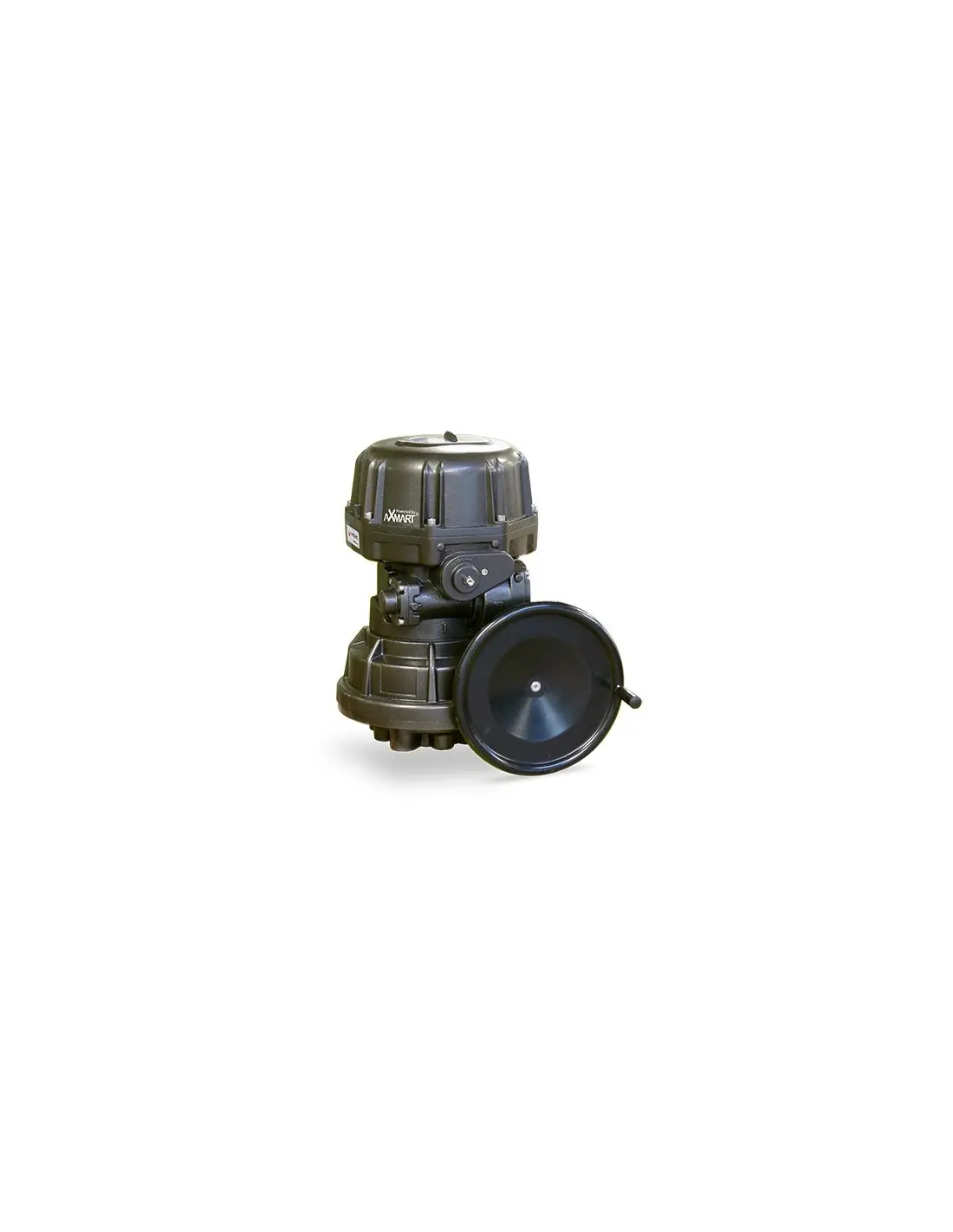

MT - multiturn
All GS6 BBPR actuators
All POSI-BBPR actuators
All 3-POSITION-BBPR actuators

MONITORING & STATUS

AXMART provides a real time actuator parameters check.

Servicing an installation with actuators equipped with the Bluetooth® communication module becomes an easy task. It only requires a few seconds to achieve and validate function tests using your tablet or smartphone once the Valpes Application AXMART® has been downloaded. Maintenance operations will be much easier as you can read operation records from actuators. This is a good way to save time while minimizing risks.

CONNECT & CONTROL

The Valpes Bluetooth® communication module offers a secured connection. It enables the communication with any actuator, whether visible or not and even when concealed (actuators located under floor, in a pit, above ceiling, at height). In all situations, this interface is perfect as a local control device.

WEEKLY PROGRAMMING

The actuator becomes autonomous with the integrated timer, which allows a scheduling of twenty operations a week. Simple and cost effective! Neither programmable logic controller (PLC) - electric cabinet nor control operator is required.
