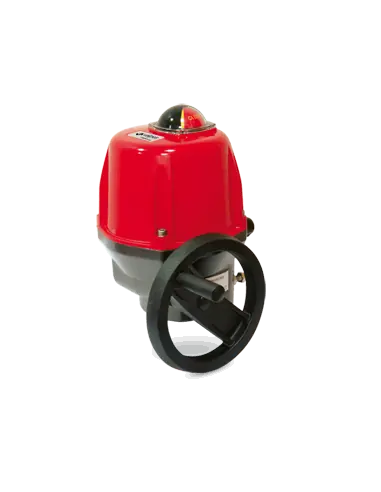

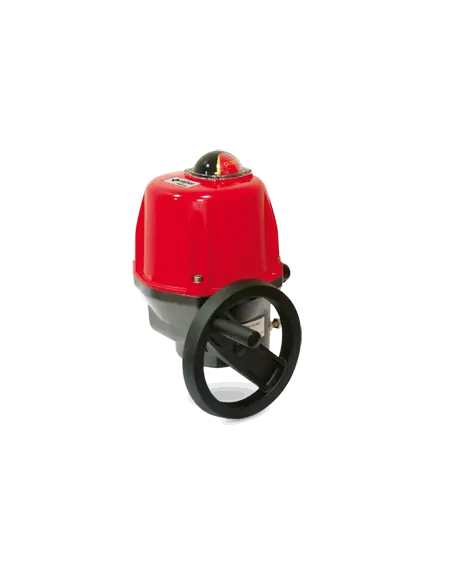

VALPES VS Electric Quarter-Turn Actuator

The VALPES VS is an electric actuator designed for quarter-turn (1/4 turn) operation of ball valves, butterfly valves, and plug valves. Torque range covers 40–300 Nm. Standard rotation is 90°, with optional 180° or 270° travel. The housing is aluminum with C4-class coating; cover options include PA6 UL94 V-0 or aluminum.

Technical Specifications

  • Power supply: 100–240 V AC / 100–350 V DC, 15–30 V AC / 12–48 V DC, or 400 V 3-phase.
  • Control: on-off or 3-point modulating. 400 V version is 3-point only.
  • Duty cycle: S4 50% (IEC34).
  • Valve interface: ISO 5211 F07/F10.
  • Ambient temperature: -20 to +70 °C, or -10 to +40 °C for BBPR.
  • Ingress protection: IP68 2 m / 72 h (plastic cover), IP68 5 m / 72 h (aluminum), optional 10 m / 72 h.

Control and Feedback

VS includes 2 adjustable position switches, manual override, visual indicator, anti-condensation heater, mechanical stops at 0°/90°, electronic torque limiter, fault relay, and RS485 (except 400 V version).

Variants: BBPR (battery spring return), POSI (analog control 4–20 mA or 0–10 V), 3 positions, POSI-BBPR, 3-position-BBPR, Modbus-RTU, Bluetooth / AXMART.

Selection Logic

Select actuator torque to exceed maximum valve torque. Use sizing factor 1.5× (standard) or 2× (POSI/analog) to account for differential pressure, seat type, deposits, and static periods.

Applications

Suitable for industrial water, air, HVAC, water treatment, auxiliary gases, marine systems, and process lines with medium torque requirements.

FAQ

When to select VS over VR?
For valves requiring torque above VR range and F07/F10 interface.

What is checked during maintenance?
Cable glands, IP sealing, limit switches, mechanical stops, manual override, torque limiter, and feedback to PLC/BMS.

Protection (Options)
  • IP 68
Voltage (Options)
  • 24V to 30V AC 50/60Hz
  • 100V to 240V AC 50/60Hz
  • 400V 50/60Hz
  • 24V to 48V DC
  • 100V to 350V DC

Datasheet and documents

Description

DESCRIPTION

Electric actuator, aluminium housing and polyamide PA6 UL 94 V-0 or aluminium (option) cover with manual override by hand wheel, for torques from 100 to 300Nm and in accordance with CE-ROHS-REACH Directives.

VERSIONS

  • 90° standard version and 180° or 270° version (on request)
  • Version for marine applications. High durability coating, 15-year warranty
  • Available with:

        BBPR - emergency backup

        POSI - proportional control

        3 POSITIONS

        POSI-BBPR

        3-POSITION-BBPR

        BLUETOOTH®

        Modbus-RTU

TECHNICAL DATA

  • Multivoltage actuator:

          100V to 240V 50/60Hz (100V to 350V DC)

          15V to 30V 50/60Hz (12V to 48V DC)

          3-phase 50/60Hz 400V (not CSA)

  • 3 modulating points control or on-off (400V: 3 modulating points control)
  • 4 adjustable limit switches 5A

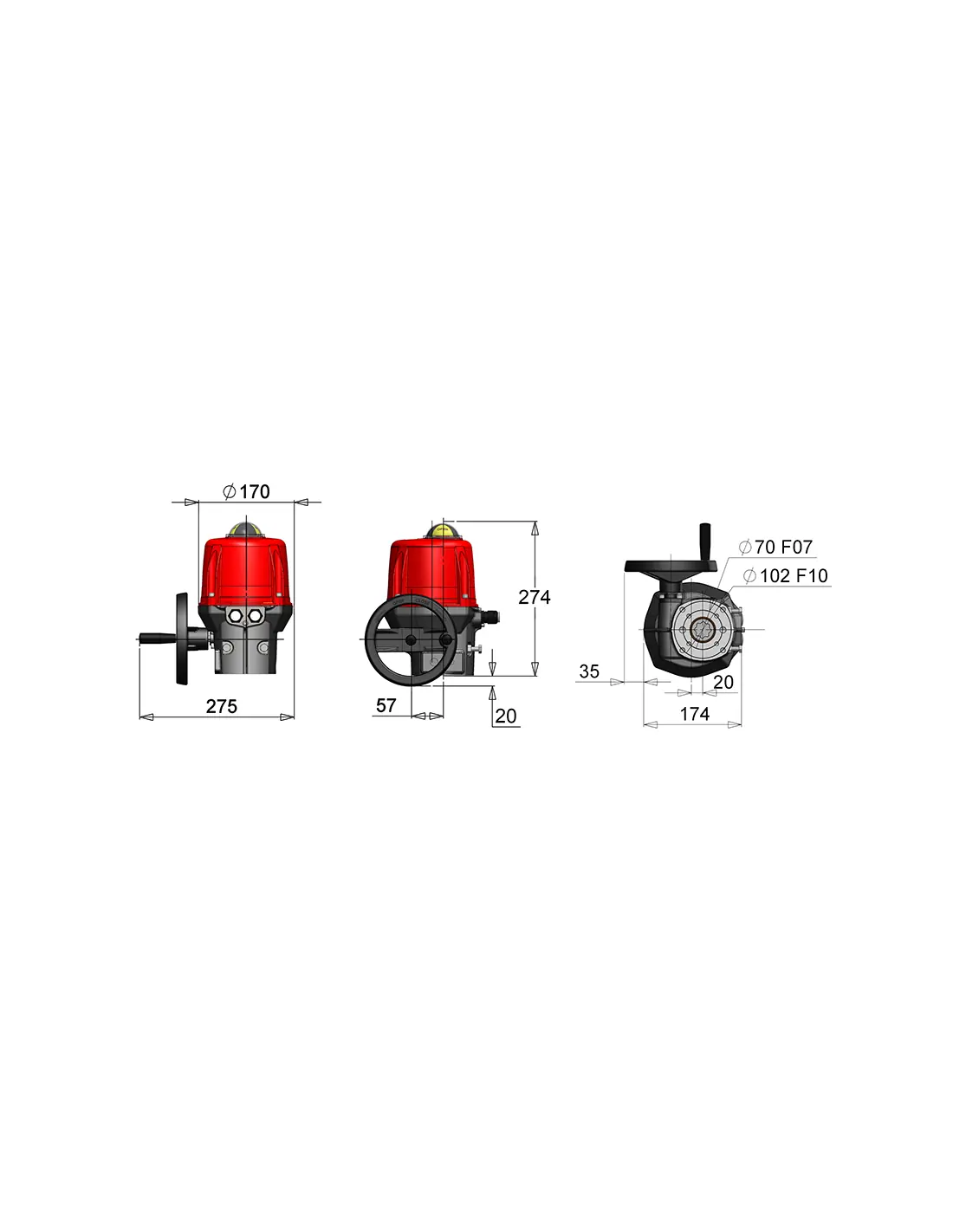

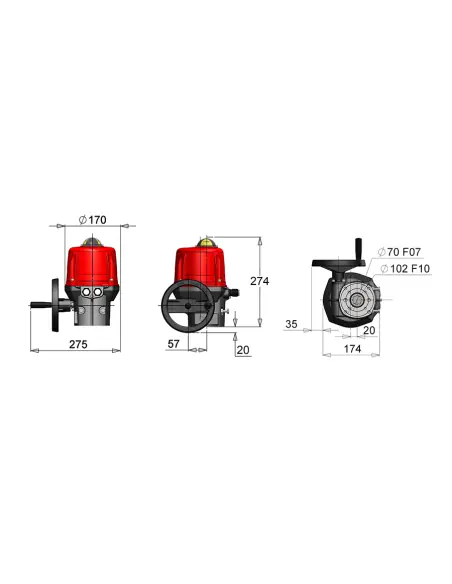

  • Connection F07/F10 according to ISO5211 standard
  • Removable star drive
  • Manual override
  • Visual position indicator
  • Regulated anticondensation heater
  • Torque limiter monitored by software (except 400V)
  • Failure feedback relay (normal duty, failure) (except 400V)
  • RS485 connection (except 400V)
  • Mechanical limit stops
  • Duty rating: S4 50% (CEI34)
  • Working temperature: -20°C to +70°C
  • Enclosure:

           IP68 2m / 72h (with plastic cover)

           IP68 5m / 72h (with aluminium cover)

  • Weight: 5.1Kg - 6.4Kg
  • 2x ISO M20 (ISO - NPT adapters available as option)

couple-100-300.png    IP68.png    fdm-50.png    resiste.png
