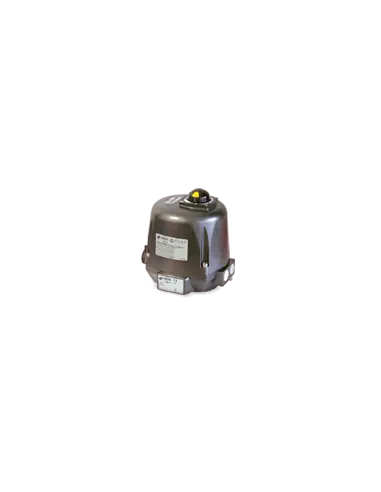

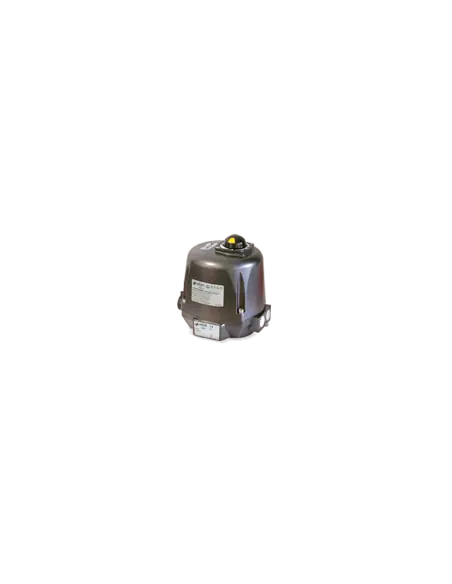

VALPES VRX ATEX Electric Quarter-Turn Actuator

VALPES VRX ATEX is an electric quarter-turn actuator designed for ball valves, butterfly valves, and plug valves in hazardous (explosive atmosphere) areas. VRX models provide 25, 45, and 75 Nm torque, with ISO 5211 F05/F07 mounting and 17 mm star drive.

Operation and Electrical Data

  • Standard rotation 90°; 180° or 270° available on request.
  • Supply options: 100–240 V AC / 100–350 V DC, 15–30 V AC / 12–48 V DC, or 400 V 3-phase.
  • 90° operating time: 7 s (VRX25), 15 s (VRX45), 20 s (VRX75) for multivoltage versions.
  • Duty cycle: S4 50% per CEI34.
  • Control: on-off or 3-point; 400 V models support 3-point only.

ATEX and Environmental Ratings

Standard marking: II 2 G D Ex db IIB T6 Gb / Ex tb IIIC T80°C Db for gas zones 1/2 and dust zones 21/22, LCIE 06 ATEX 6006 X. Battery backup versions: temperature range -10 to +40 °C. Standard multivoltage: -20 to +70 °C. 400 V version: T5 marking, max +54 °C.

Construction and Feedback

Aluminum enclosure, ingress protection IP68 5 m / 72 h. Features: manual override, visual position indicator, anti-condensation heater, mechanical end stops, software torque limiter (except 400 V), fault relay, RS485 (except 400 V).

Options

Available: BBPR (battery return), POSI (analog control), 3 positions, POSI-BBPR, Modbus-RTU, potentiometer feedback, and transmitter 0–20 mA / 4–20 mA / 0–10 V.

Applications

Used in chemical plants, petrochemicals, storage tanks, fuel gases, industrial gases, and auxiliary networks requiring Ex protection. Media compatibility is determined by the valve; actuator selection is based on torque, ATEX zone, voltage, 90° time, duty cycle, and required feedback.

FAQ

When to select VRX over VR?
When installation requires ATEX / IECEx protection.

What is checked during maintenance?
Ex cable glands, grounding, IP68 sealing, limit switches, end stops, fault relay, manual override, and correct torque matching to the valve.

Protection (Options)
  • IP 68
Voltage (Options)
  • 15V to 30V AC 50/60Hz
  • 100V to 240V AC 50/60Hz
  • 12V to 48V DC
  • 100V to 350V DC

Datasheet and documents

Description

DESCRIPTION

ATEX electric actuator, aluminium housing with manual override by external shaft or hand wheel for torques of 25 to 1000Nm and in accordance with CE-ROHS-REACH directives.

VERSIONS

  • 90° standard version and 180° or 270° version (on request)
  • Version for marine applications. High durability coating, 15-year warranty
  • Available with:

          BBPR - emergency backup

          POSI - proportional control

          3 POSITIONS

          POSI-BBPR

          3-POSITION-BBPR

          Modbus-RTU

TECHNICAL DATA

  • VRX, VSX: multivoltage actuator

          100V to 240V 50/60Hz (100V to 300V DC)

          24V to 48V 50/60Hz (24V to 72V DC)

          3-phase 400V 50/60Hz

  • VTX: 230V 50/60Hz and 3-phase 400V 50Hz
  • 3 modulating points control or on-off (400V and VTX: 3 modulating points control only)
  • Duty rating S4 50% (CEI34)
  • Working temperature:

          VRX/VSX multivolt: -20 °C to +70 °C

          VRX/VSX 3-phase 400 V: -20 °C to +54 °C

          Battery models (GS6,GPS,GFS): -10 °C to +40 °C

          VTX: -20 °C to +63 °C

  • Enclosure IP68 5 m / 72 h
  • 4 adjustable limit switches 5A
  • connection according ISO5211:

          VRX: F05/F07 star drive 17 mm

          VSX: F07/F10 star drive 22 mm

          VTX: F10/F12 star drive 36 mm

  • Manual override
  • Torque limiter monitored by software (except 400V) or mecanical (VTX)
  • Failure report relay (except 400V)
  • RS485 connection (except 400V and VTX)
  • Mechanical limit stops (adjustable for VSX and VTX)
  • Visual position indicator
  • Regulated anticondensation heater
  • Weight: 4.4 kg (VRX) • 6.4 Kg (VSX) • 25 kg (VTX)

couple-25-1000.png    IP68.png    FDM 50%    resiste.png
