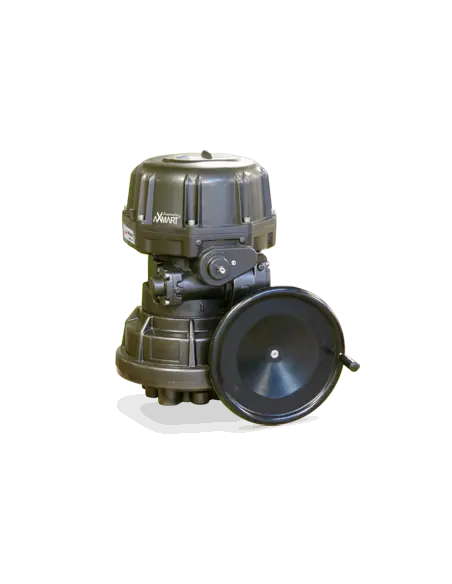

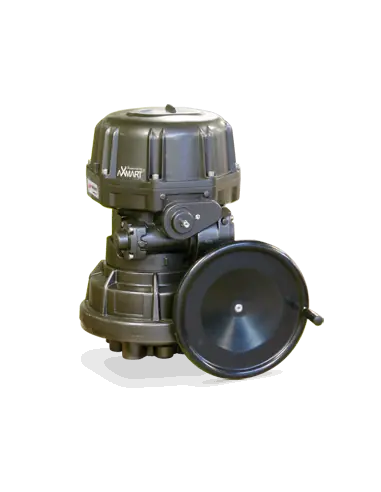

VALPES VT PLUS Electric Quarter-Turn Actuator

The VALPES VT PLUS is an electric quarter-turn actuator designed for high-torque butterfly valves, ball valves, and plug valves. The series covers a torque range of 400–2400 Nm, with standard rotation of 90° and optional 180° or 270° for 400, 600, and 1000 Nm models.

Technical Specifications

  • Power supply: 100–240 V AC 50/60 Hz / 100–300 V DC or 24–48 V AC / 24–72 V DC
  • Control: on-off, pulse, or 3-point
  • Motor power: 300 W
  • 90° operating time: 35 s (400 Nm), 45 s (600 Nm), 72 s (1000 Nm), 182 s (1500 Nm), 291 s (2400 Nm)
  • Duty cycle: S4 50% (IEC34)
  • Ambient temperature: -20 to +70 °C, or -10 to +40 °C with BBPR
  • Enclosure: IP68, 5 m / 72 h

Mechanical Interface & Protection

Valve mounting per ISO 5211: F10/F12 for 400–1000 Nm, F12/F14/F16 for 1500–2400 Nm. Features include manual override, visual position indicator, anti-condensation heater, electronic torque limiter, RS485, two adjustable position switches, and fault relay.

Control Options

Available options: BBPR (spring return on power loss), POSI (analog control 4–20 mA or 0–10 V), 3 positions, POSI-BBPR, 3-position-BBPR, Modbus-RTU, integrated AXMART Bluetooth.

Applications

Suitable for large water valves, seawater, HVAC, cooling water, air, auxiliary gases, and industrial isolation networks. Media compatibility is determined by the valve; actuator selection is based on torque, 90° time, duty cycle, voltage, IP rating, and feedback requirements.

FAQ

When to select VT PLUS over VT?
When multivoltage supply, integrated AXMART, RS485, or extended control options are required.

What is checked during maintenance?
Cable glands, IP sealing, limit switches, manual override, torque limiter, fault relay, feedback, and torque matching with the valve.

Protection (Options)
  • IP 68
Voltage (Options)
  • 24V to 48V AC 50/60Hz
  • 100V to 240V AC 50/60Hz
  • 24V to 72V DC

Datasheet and documents

Description

DESCRIPTION

Electric actuator, aluminium housing with manual override by hand wheel, for torques from 400 to 2400Nm and in accordance with CE-ROHS-REACH Directives. VT PLUS models include AXMART® Bluetooth®functionality.

VERSIONS

  • 90° standard version
  • 180° or 270° version on request for the 400Nm and 1000Nm models
  • Version for marine applications. High durability coating, 15-year warranty
  • Available with:

          BBPR - emergency backup

          POSI - proportional control

          3 POSITIONS

          POSI-BBPR

          3-POSITION-BBPR

          BLUETOOTH®

          Modbus-RTU®

TECHNICAL DATA

  • Multivoltage actuator:

          100V to 240V 50/60Hz (100V to 300V DC)

          24V to 48V 50/60Hz (24V to 72V DC)

  • On-off, pulse and 3 modulating points control
  • Integrated 4-20mA or 0-10V positioning solution with feedback signal
  • Integrated Bluetooth® control (AXMART®)
  • RS485 connection
  • 4 adjustable limit switches 5A

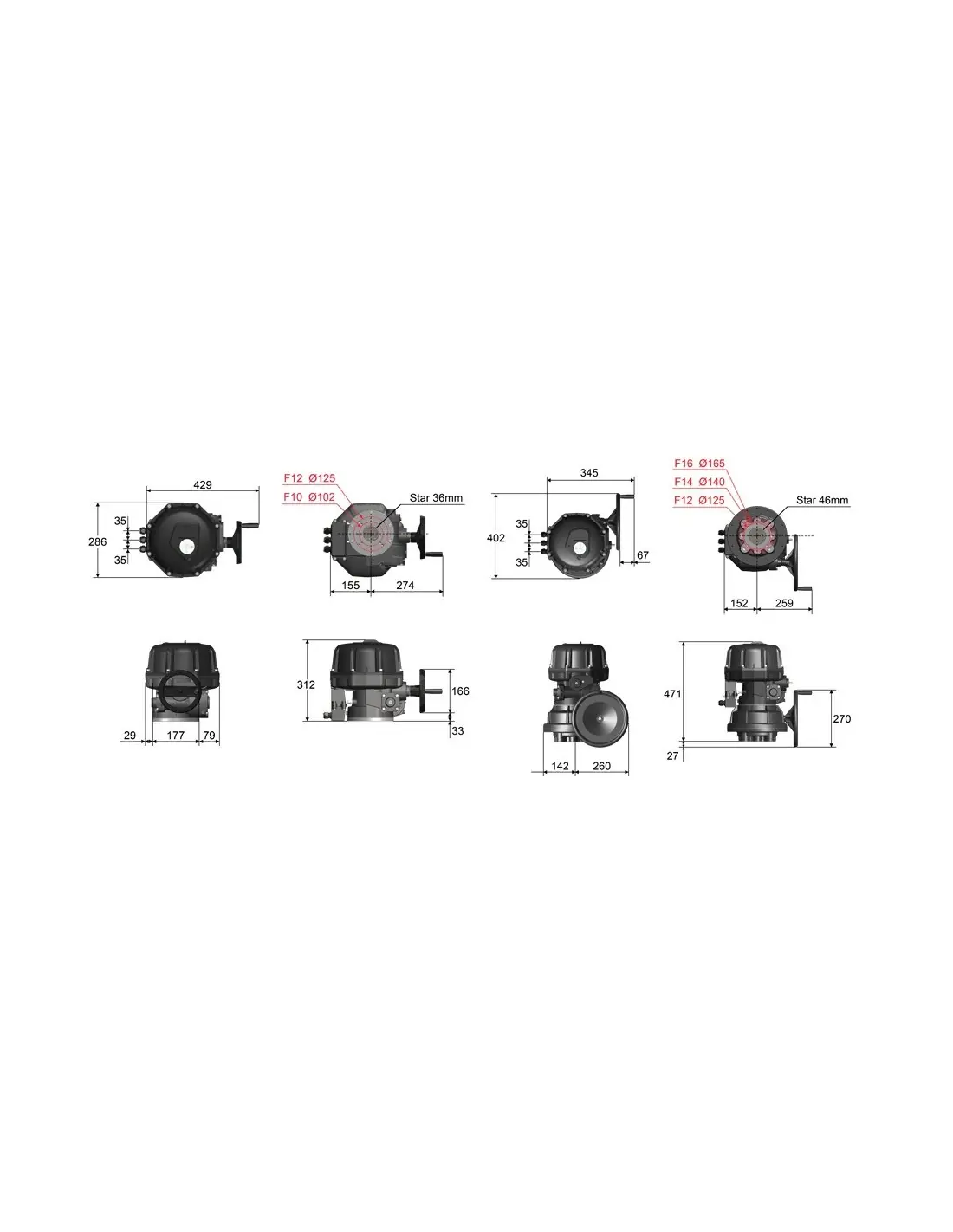

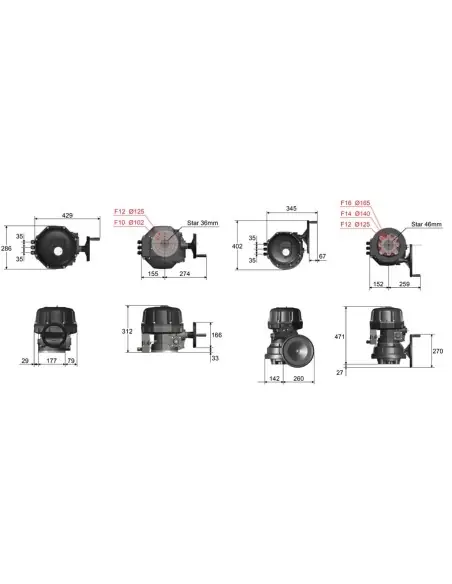

  • Connection according to ISO5211 standard

          VT+ 400-1000Nm : F10/F12

          VT+ 1500-2400Nm : F12/F14/F16

  • Removable star drive
  • Manual override
  • Electronic torque limiter
  • Failure feedback relay (normal duty, failure)
  • Visual position indicator
  • Regulated anticondensation heater
  • Duty rating: S4 50% (IEC34)
  • Working temperature: -20°C to +70°C
  • Enclosure IP68 5m / 72h
  • Weight: 25Kg (400-1000Nm) and 54Kg (1500-2400Nm)
  • Single multipin connector
