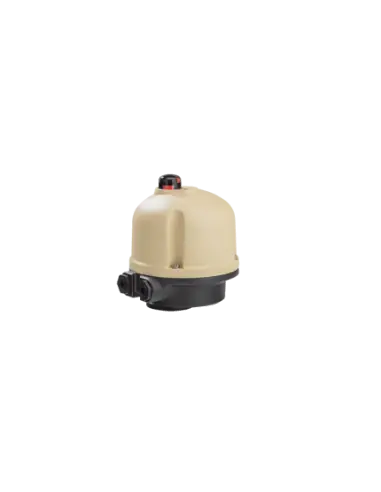

PRODUCT SPECIFICATIONS
ADAPTATION TO ALL QUARTER-TURN VALVES:
- Torque range from 15 to 70 Nm (direct mount)
TYPE OF CONTROLS
- Electromechanical, SWITCH
- Positioner, 4-20mA
BC DUTY & MODULATING CLASSIFICATION
- On-Off: Class A
- Inching/Positioning: Class B
IP68 / CORROSIVE ENVIRONMENT: C4 / OPERATING TEMP.: -20…+60°C
PRODUCT BENEFITS
COMPACT & OPTIMIZED DESIGN
- Super compact design
- Product architecture & torque range adapted to customers’ requirements: 3 models from 15 to 70 Nm
- Multi-voltage (AC/DC) & multi-frequency products : suitable whatever your location on the globe
- 24VDC or 12VDC, both 2 or 3 wires available as an option
- Short delivery time, even for voluminous project, thanks to large production capacity
RELIABLE DESIGN
- BERNARD CONTROLS design methodology built-up on the nuclear market highly demanding requirements
- 80+ years of continuous experience and BC inventor of the compact quarter-turn electric actuator
- Extended lifetime: more than 200000 cycles attained during endurance tests in laboratory
- Heavy duty design: full aluminum enclosure protected by durable powder coating, C4, IP68, large temperature scale
- Self-locking at all speeds without any additional component
- S4 Motor Service Duty. Up to 120 starts per hour at peak of operation
- Electronic torque limiter for reinforced valve security
- 100% of delivered products are tested with automatic process before delivery
- Semi automated assembly line: enables complete electronics traceability
EASY TO USE
- Easy commissioning for quick installation on site: pre-wired version, wiring diagram inside the cover, Quick connector (IP68) option
- User-friendly set up of travel limitation system with a standard screwdriver. Cameblock directly
- accessible at the front.
- Positionner option (4-20mA)
- Manual operation via manual hexagonal output: essential for emergency intervention
- BC APP: Bernard Controls new mobile application to get access to full documentation and Assistance.
