PRODUCT SPECIFICATIONS
TORQUE RANGE:
- 30 to 500 Nm (direct)
- Up to 32,000 Nm on request
10 TO 180 RPM (DIRECT MOUNT)
TYPE OF CONTROLS:
- Electromechanical SWITCH
- Smart LOGIC (v2)
BC DUTY & MODULATING CLASSIFICATION:
- On-Off: Class A
- Inching / Positioning : Class B
- Modulating : Class III
ENVIRONMENT: IP 68 / C4 (C5 OPTION) / T: -20°C ...+70°C (LOW T° OPTION -40°C)
PRODUCT BENEFITS
INNOVATIVE, RELIABLE & OPTIMIZED DESIGN
- Product architecture & torque range adapted to customers’ requirements: 6 models from 30 to 500 Nm
- Selection of the essential features to ensure a competitive but performing solution: actuator duty from On-Off to Modulating, heavy duty enclosure protection, IP68, integrated control, wide range of output speeds…
- New reliable camblock system unaffected by vibrations. Fully new & unique design with internal modularity for compact solution, e.g. modular position sensor enables up to 1700 turns with the same product
PERFORMANCE FOR MULTI-TURN ACTUATION
- From 30Nm (adjustable to 12Nm) to 500Nm (direct) and more with gearboxes
- Wide range of speeds to address all types of applications
- Wide stem acceptance
- Self-locking at all speeds without any additional component*
- S4 Motor Service Duty on all models
- Suitable for modulating applications (BC Class III complying with EN15714-2 Class C)
EASY TO INSTALL
- Easy commissioning: set up of travel limitation system (new camblock) with a standard screwdriver, only two standard tools required to install and set up the actuator on valve, wiring reduced to the minimum for fast assembly

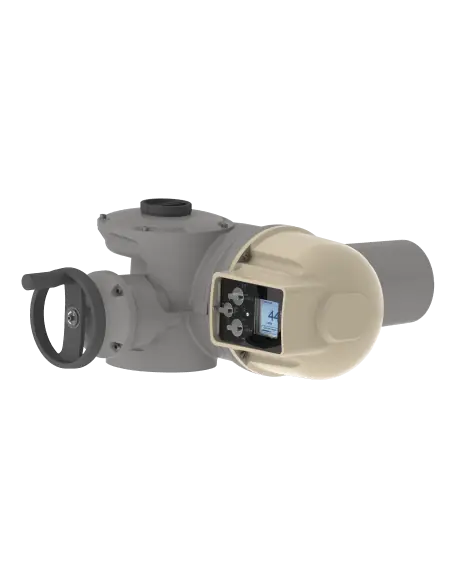

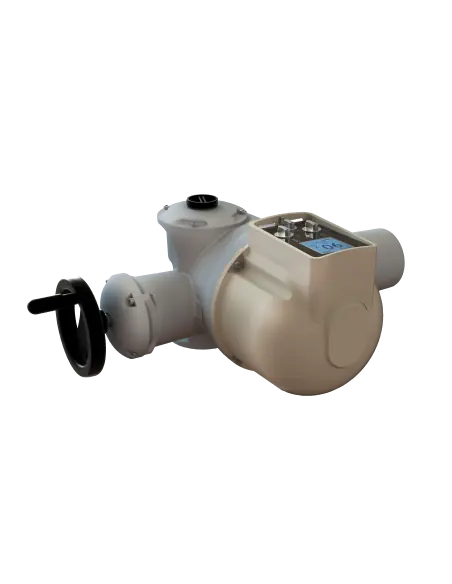

- Large LCD display on LOGIC version for user-friendly commissioning and local command. Easily orientable (4-way direction) in few clicks
- Product suitable for rising stem thanks to adjustable torque sensor from 40 to 100%
EASY TO MAINTAIN
- Declutch-free manual override for quick intervention on site

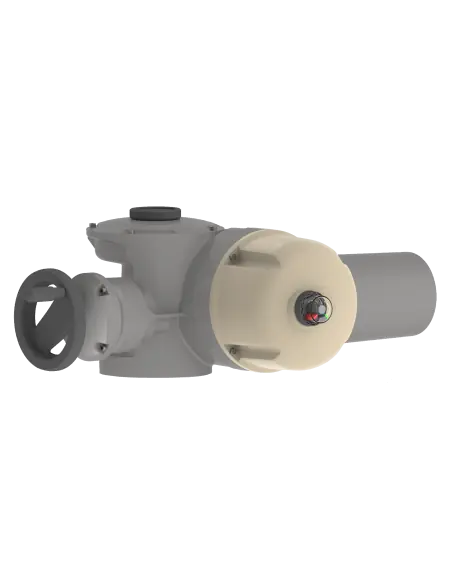

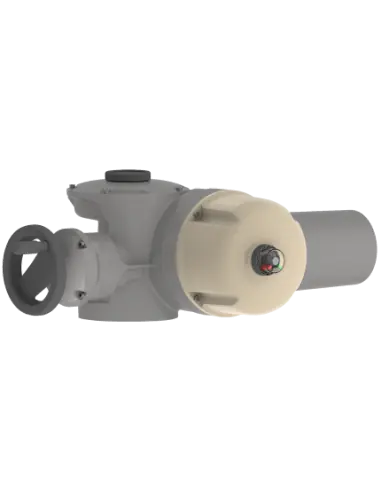

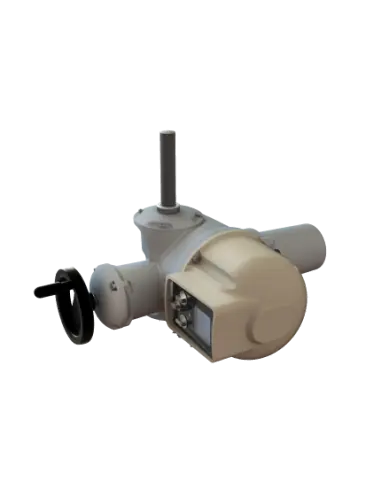

- Mechanical position indicator on SWITCH versions: check the position of your valve at a glance
- BC APP: Bernard Controls new mobile application for setting, operating, troubleshooting and easy access to documentation

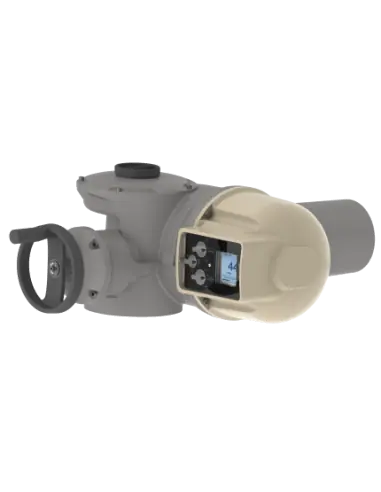

THE MAIN FUNCTIONS OF INTEGRATED CONTROL WITH THE NEW LOGIC (V2)
- Turn-key, time & cost-saving solution
- User-friendly & intuitive
- Non-intrusive setting for enhanced safety and reliability
- Compatible with common fieldbus protocols: Modbus RTU, Profibus DPV1.
- Bluetooth communication (as standard) to communicate with Bernard Controls’ BC App
