Comeval Valve Systems – Technical profile of a valve and flow control equipment manufacturer

Comeval Valve Systems is a Spanish valve manufacturer founded in 1975. It became part of the ARI Group in 2011 and offers products for control, isolation, safety and steam trapping of liquid and gaseous media.

The official Comeval product categories include safety valves, control valves, air valves and anti-surge tanks, steam trapping and specialities, piping accessories, systems and energy-saving equipment.

Main technical areas include:

  • industrial isolation valves,
  • control valves,
  • safety valves,
  • air valves,
  • steam traps,
  • pipeline accessories,
  • energy-saving systems,
  • water and process technology components.

Control valves are used for modulating flow, pressure or temperature. Selection requires Kv calculation, pressure drop, fluid, temperature, leakage class, actuator type and fail position.

Safety valves are used for overpressure protection and must be sized according to the relief case, not line size. Required data include set pressure, required relieving capacity, medium, temperature and back pressure.

Air valves and anti-surge equipment are used in water networks to manage entrapped air, vacuum and transient conditions. Their selection depends on pipeline profile, filling / emptying rates, surge analysis and installation point.

Steam trapping and specialities are selected according to condensate load, differential pressure, back pressure, start-up conditions and steam quality.

Comeval products are relevant for industrial engineers, water network engineers, steam specialists and building-services engineers requiring valve packages across control, safety, steam and utility systems.

Comeval’s products are distinguished by their reliability, durability, and high performance, meeting the needs of diverse industrial sectors.

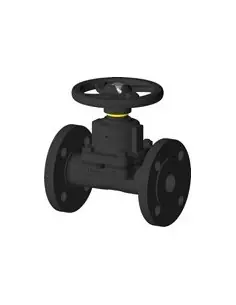

Diaphragm valve straight through - DIAVAL Fig. S | Comeval | Philippopoulos s.a.

Diaphragm valve straight through - DIAVAL Fig. S | Comeval

Diaphragm valve straight through - DIAVAL Fig. S | Comeval
Comeval
Diaphragm Valve DIAVAL Fig. S Straight-Through The Comeval DIAVAL Fig. S is a straight-through diaphragm valve designed for flow isolation in water networks, liquid processing, and abrasive media. Its seatless, bidirectional construction with a bolted bonnet and diaphragm sealing ensures the medium does not contact the operating mechanism. It is intended...
View
Diaphragm valve weir - DIAVAL Fig. W | Comeval | Philippopoulos s.a.

Diaphragm valve weir - DIAVAL Fig. W | Comeval

Diaphragm valve weir - DIAVAL Fig. W | Comeval
Comeval
Diaphragm Valve DIAVAL Fig. W Weir Type The DIAVAL Fig. W from Comeval is a linear motion, bidirectional diaphragm valve with a bolted bonnet and seatless body. The diaphragm acts as an isolation and sealing element, separating the medium from the operating mechanism. The weir type is used for flow isolation and can also function in throttling...
View
Strainers Y UNIFLOW - Fig. F0 | Comeval | Philippopoulos s.a.

Strainers Y UNIFLOW - Fig. F0 | Comeval

Strainers Y UNIFLOW - Fig. F0 | Comeval
Comeval
Y-Type Strainers Comeval UNIFLOW Fig. F0 UNIFLOW Fig. F0 are cast Y-type strainers designed for mechanical retention of solids in process lines. They utilize a removable stainless steel mesh or perforated basket, accessible via the cover, with a drain plug for blowdown prior to cleaning. These strainers protect pumps, control valves, steam traps, heat...
View

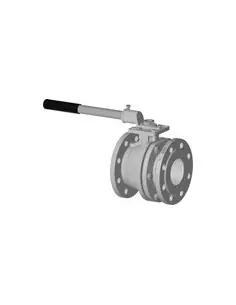

Ball Valve - UNIFLOW Fig. BV4M | Comeval | Philippopoulos s.a.

Ball Valve - UNIFLOW Fig. BV4M | Comeval

Ball Valve - UNIFLOW Fig. BV4M | Comeval
Comeval
Comeval UNIFLOW Fig. BV4M Flanged Floating Ball Valve The Comeval UNIFLOW Fig. BV4M is a split-body floating ball valve for manual or automated isolation service. It is supplied with flanged ends and a direct mounting arrangement for actuator installation without additional brackets where the selected configuration permits. Construction Valve type:...
View

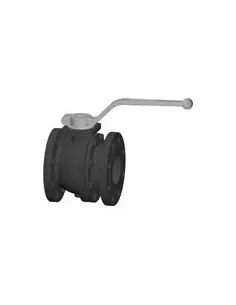

Ball Valve - UNIFLOW Fig. BV422 | Comeval | Philippopoulos s.a.

Ball Valve - UNIFLOW Fig. BV422 | Comeval

Ball Valve - UNIFLOW Fig. BV422 | Comeval
Comeval
Comeval UNIFLOW Fig. BV422 Ball Valve Two-way, two-piece floating ball valve in stainless steel ASTM A351 CF8M, used for on/off isolation in industrial utility and process lines. The BV422 series is supplied with female threaded ends and a full-bore flow path to reduce pressure drop across the valve. Construction Body: ASTM A351 CF8M stainless steel...
View

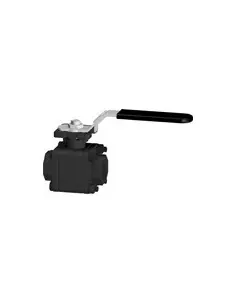

Ball Valve - UNIFLOW Fig. B8 | Comeval | Philippopoulos s.a.

Ball Valve - UNIFLOW Fig. B8 | Comeval

Ball Valve - UNIFLOW Fig. B8 | Comeval
Comeval
Comeval UNIFLOW Fig. B8 Floating Ball Valve Two-way floating ball valve, split-body construction, bidirectional service, used for flow isolation in industrial utilities and process piping. The valve is supplied with ANSI flanged ends in pressure classes 150, 300 or 600 lb. Materials and Available Variants Carbon steel: ASTM A105, ASTM A216 WCB Stainless...
View

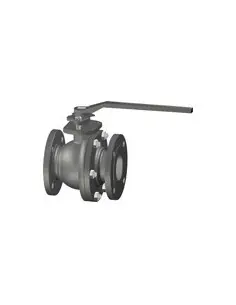

Ball Valve - UNIFLOW Fig. BF | Comeval | Philippopoulos s.a.

Ball Valve - UNIFLOW Fig. BF | Comeval

Ball Valve - UNIFLOW Fig. BF | Comeval
Comeval
Comeval UNIFLOW Fig. BF Floating Ball Valve Floating ball valve with split body construction, bidirectional shut-off and flanged ANSI ends. Used for isolation duties in process piping, industrial utilities and auxiliary plant systems. Available in Class 150, Class 300 and Class 600 versions, subject to size and material configuration. Body and Trim...
View
Ball Valve Trunnion Mounted - UNIFLOW Fig. BT | Comeval | Philippopoulos s.a.

Ball Valve Trunnion Mounted - UNIFLOW Fig. BT | Comeval

Ball Valve Trunnion Mounted - UNIFLOW Fig. BT | Comeval
Comeval
Comeval UNIFLOW Fig. BT Trunnion Ball Valve The UNIFLOW Fig. BT series is a trunnion-mounted ball valve designed for flow isolation in industrial process systems. Available in sizes DN50–DN900 / 2"–36" and pressure ratings PN16–PN420 / ANSI Class 150–2500, with two- or three-piece body construction and flanged or butt-welded (BW) ends. Technical...
View

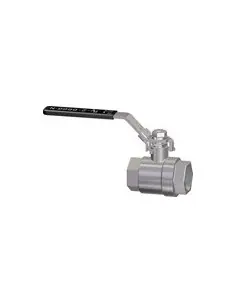

Ball Valve 2 Pieces - UNIFLOW Fig. BV2 | Comeval | Philippopoulos s.a.

Ball Valve 2 Pieces - UNIFLOW Fig. BV2 | Comeval

Ball Valve 2 Pieces - UNIFLOW Fig. BV2 | Comeval
Comeval
Comeval UNIFLOW Fig. BV2 Ball Valve The Comeval UNIFLOW Fig. BV2 is a two-piece, split-body, floating ball valve manufactured in ASTM A351 CF8M stainless steel. It is used for on/off isolation in process lines, utility services and auxiliary industrial networks. The valve is supplied in PN 63 pressure class and is normally operated by a manual lever....
View

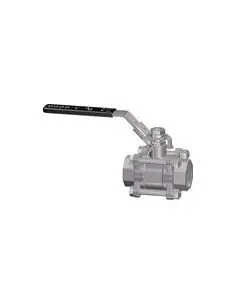

Ball Valve 3 Pieces - UNIFLOW Fig. BV3 | Comeval | Philippopoulos s.a.

Ball Valve 3 Pieces - UNIFLOW Fig. BV3 | Comeval

Ball Valve 3 Pieces - UNIFLOW Fig. BV3 | Comeval
Comeval
Comeval UNIFLOW Fig. BV3 Ball Valve Three-piece floating ball valve with split body construction, manufactured in ASTM A351 CF8M stainless steel. The valve is intended for on/off isolation in process lines and auxiliary utility systems. Standard configuration is PN 63, PTFE seated, bidirectional, and manually operated by lever. Construction Body...
View

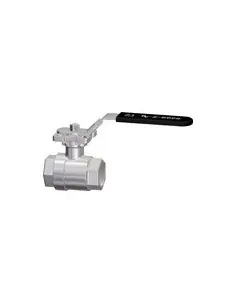

Ball Valve 2 Pieces - UNIFLOW Fig. BV2MD | Comeval | Philippopoulos s.a.

Ball Valve 2 Pieces - UNIFLOW Fig. BV2MD | Comeval

Ball Valve 2 Pieces - UNIFLOW Fig. BV2MD | Comeval
Comeval
Comeval UNIFLOW Fig. BV2MD Ball Valve The Comeval UNIFLOW Fig. BV2MD is a 2-piece split-body floating ball valve in ASTM A351 CF8M stainless steel. It is used for on/off isolation in process lines where threaded end connections and compact valve installation are required. Construction and Ratings Body material: ASTM A351 CF8M stainless steel Design:...
View

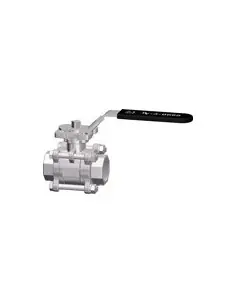

Ball Valve 3 Pieces - UNIFLOW Fig. BV3MD | Comeval | Philippopoulos s.a.

Ball Valve 3 Pieces - UNIFLOW Fig. BV3MD | Comeval

Ball Valve 3 Pieces - UNIFLOW Fig. BV3MD | Comeval
Comeval
Comeval UNIFLOW Fig. BV3MD Three-Piece Ball Valve The Comeval UNIFLOW Fig. BV3MD is a three-piece, split-body, floating-ball valve manufactured in ASTM A351 CF8M stainless steel. The BV3MD version uses a direct-mounting top arrangement for installation with a manual lever, gearbox, pneumatic actuator, or electric actuator. Construction Body material:...
View
Ball valve 3 way direct mounting UNIFLOW Fig. BV23MD | Comeval | Philippopoulos s.a.

Ball valve 3 way direct mounting UNIFLOW Fig. BV23MD | Comeval

Ball valve 3 way direct mounting UNIFLOW Fig. BV23MD | Comeval
Comeval
Comeval UNIFLOW BV23MD 3-Way Ball Valve The BV23MD is a three-way floating ball valve with threaded ends and direct actuator mounting pad. Designed for rapid 90° flow diversion in liquid or gas networks, it is not intended for throttling or continuous intermediate position operation. Construction and Materials Body, end caps, and ball: stainless steel...
View
Globe Valve Bellow Seal - Fig. 84 | Comeval | Philippopoulos s.a.

Globe Valve Bellow Seal - Fig. 84 | Comeval

Globe Valve Bellow Seal - Fig. 84 | Comeval
Comeval
Comeval Fig. 84 — ANSI Globe Valve with Bellows The Comeval Fig. 84 / Series UNIFLOW 84 is a cast globe valve designed for unidirectional flow, suitable for isolating lines in steam, gases, HVAC, lubrication, power, chemical, and oil & gas applications. Flow passes beneath the seat; the weir-type body results in higher pressure drop compared to gate...
View
Globe valve - UNIFLOW 80-89 | Comeval | Philippopoulos s.a.

Globe valve - UNIFLOW 80-89 | Comeval

Globe valve - UNIFLOW 80-89 | Comeval
Comeval
Steam Valve Comeval UNIFLOW 80/89 The Comeval UNIFLOW 80/89 is a metal-sealed globe valve designed for unidirectional flow isolation in process, power, HVAC, steam, gas, and industrial liquid applications compatible with construction materials. The globe geometry results in higher pressure drop compared to gate or ball valves but allows faster operation...
View
Globe valve - UNIFLOW Fig. 89 | Comeval | Philippopoulos s.a.

Globe valve - UNIFLOW Fig. 89 | Comeval

Globe valve - UNIFLOW Fig. 89 | Comeval
Comeval
Steam Valve Comeval UNIFLOW FIG. 89 The Comeval UNIFLOW FIG. 89 is a forged globe valve designed for unidirectional flow isolation in steam, air, gas, oil, water, and industrial fluid lines compatible with its construction materials. Flow enters below the seat, and installation must follow the arrow on the body. Construction Designed per API 602. Forged...
View
Gate valve - Fig. 90 | Comeval | Philippopoulos s.a.

Gate valve - Fig. 90 | Comeval

Gate valve - Fig. 90 | Comeval
Comeval
Comeval Fig. 90 Gate Valve The Comeval Fig. 90 is a metal-seated full bore gate valve designed for flow isolation in process lines, steam, gases, petrochemicals, HTF, compressed air, and industrial water. It is intended for on/off use; throttling is not recommended as intermediate positions increase seat wear, vibration, and leakage risk. Construction and...
View
Gate valve - Fig. 99 | Comeval | Philippopoulos s.a.

Gate valve - Fig. 99 | Comeval

Gate valve - Fig. 99 | Comeval
Comeval
Comeval Gate Valve Fig. 99 The Comeval Fig. 99 is a forged steel gate valve with metal seat designed for flow isolation in small diameters DN10–DN50 / 3/8"–2". It is a linear motion valve, bidirectional, featuring a solid wedge, bolted bonnet, outside screw & yoke, and rising stem. Its operation is on/off; it should not be used for flow regulation....
View
Gate valve - Fig. 97 | Comeval | Philippopoulos s.a.

Gate valve - Fig. 97 | Comeval

Gate valve - Fig. 97 | Comeval
Comeval
Comeval Gate Valve Fig. 97 The Comeval Fig. 97 is a forged steel gate valve with metal seats designed for flow isolation in small diameters, high pressure, and industrial process networks. It features linear motion, bidirectional flow, OS&Y rising stem, solid wedge, and bolted bonnet. It is intended for on/off service and is not recommended for...
View
Gate valve - Fig. 96 | Comeval | Philippopoulos s.a.

Gate valve - Fig. 96 | Comeval

Gate valve - Fig. 96 | Comeval
Comeval
Gate Valve Comeval Fig. 96 The Fig. 96 is a forged steel gate valve with metal seats designed for flow isolation in small diameters and high-pressure applications. It functions as an on/off valve and is not suitable for throttling, as intermediate positions increase wear on seats and gate. Key Technical Specifications Design: API 602 Pressure Rating:...
View
Gate valve - Fig. 91 | Comeval | Philippopoulos s.a.

Gate valve - Fig. 91 | Comeval

Gate valve - Fig. 91 | Comeval
Comeval
Gate Valve Comeval Fig. 91 The Comeval Fig. 91 is a metal-seated gate valve designed for flow isolation in high-pressure applications, primarily in steam, oil & gas, power, HTF, process fluids, gases, compressed air, and lubrication circuits. It is an on/off valve and should not be used for flow regulation or throttling. Technical Configuration...
View
Cast swing check valves - UNIFLOW Fig. 3S | Comeval | Philippopoulos s.a.

Cast swing check valves - UNIFLOW Fig. 3S | Comeval

Cast swing check valves - UNIFLOW Fig. 3S | Comeval
Comeval
Comeval UNIFLOW Fig. 3S – Cast Swing Check Valve The Comeval UNIFLOW Fig. 3S is a swing check valve with a hinged disc and metal seat, designed to prevent reverse flow in process piping. Operation is automatic, actuated by the process medium without external actuator. The 3S construction is cast, with a bolted cover and internal access for seat/disc...
View
Ansi forged swing check valves extract catalog api din - Fig. 39 | Comeval | Philippopoulos s.a.

Ansi forged swing check valves extract catalog api din - Fig. 39 | Comeval

Ansi forged swing check valves extract catalog api din - Fig. 39 | Comeval
Comeval
Comeval UNIFLOW Fig. 39 – Forged Swing Check Valve The Comeval Fig. 39 is a forged swing check valve with a hinged disc and metal seat, designed to prevent reverse flow in small-bore pipelines. Operation is automatic, actuated by process flow without external actuators. The range covers DN10–DN50 / 3/8"–2", with pressure ratings PN16–PN420 / ANSI Class...
View
Swing check valve with pressure seal - UNIFLOW Fig. 31 | Comeval | Philippopoulos s.a.

Swing check valve with pressure seal - UNIFLOW Fig. 31 | Comeval

Swing check valve with pressure seal - UNIFLOW Fig. 31 | Comeval
Comeval
Comeval UNIFLOW Fig. 31 – Swing Check Valve, Pressure Seal The Comeval UNIFLOW Fig. 31 is a pressure seal swing check valve designed for high-pressure pipelines. The disc opens with flow and closes automatically when the differential pressure drops or reverses. No actuator is required. Metal-to-metal sealing is standard, with a pivoted disc construction...
