✅ Reversible pneumatic actuator with rolling diaphragm (max. air supply pressure: 6 bar)
✅ Electric actuators with manual override and overheat protection
✅ Interchangeable seat rings for easy maintenance
✅ Multiple plug designs, including perforated plugs for noise reduction
✅ Various sealing options, including PTFE, EPDM, and stainless steel bellows
✅ Available in nominal pressure ratings PN16, PN25, and PN40
✅ Leakage class IV – VI compliance (DIN EN 60534-4)
✅ Explosion-proof electric actuator versions available (ATEX-certified)
Technical Specifications
Valve Types & Configurations

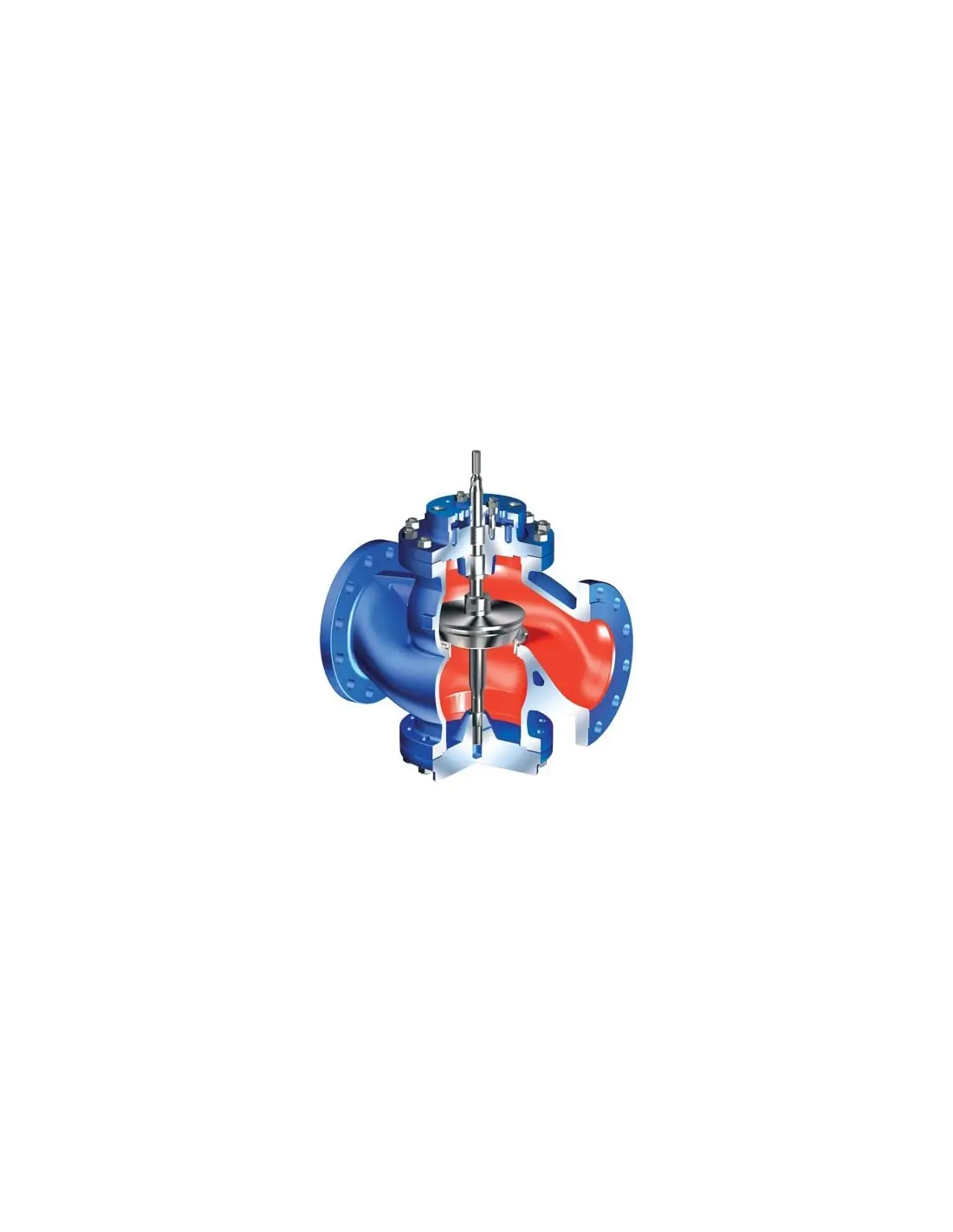

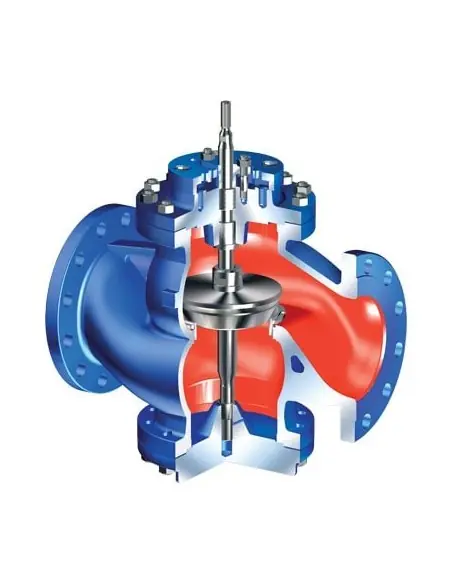

- ARI-STEVI® 422 – Straight-through control valve with standard sealing options

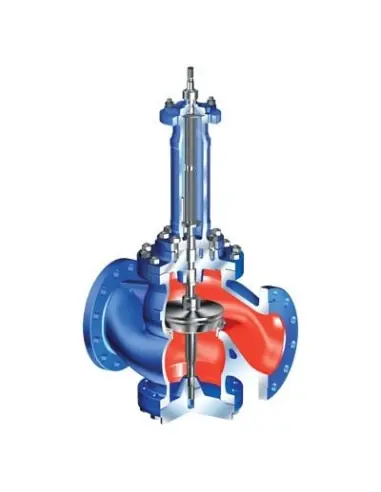

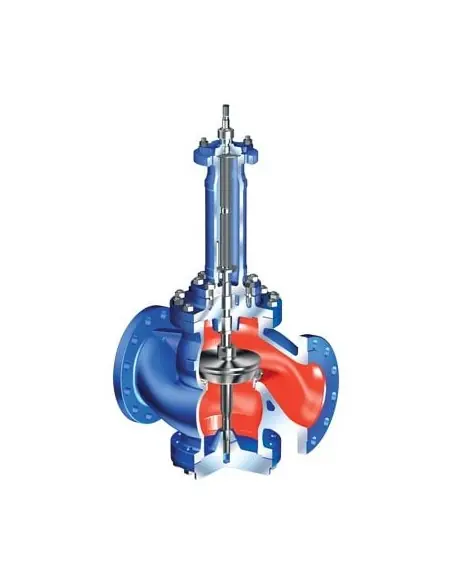

- ARI-STEVI® 462 – Straight-through control valve with stainless steel bellows for high-temperature applications
Material Options
| Model | Nominal Pressure | Material | Nominal Diameter (DN) |
|---|---|---|---|
| 12.422 / 12.462 | PN16 | EN-JL1040 | DN200-250 |
| 22.422 / 22.462 | PN16 | EN-JS1049 | DN200-250 |
| 34.422 / 34.462 | PN25 | 1.0619+N | DN200-250 |
| 35.422 / 35.462 | PN40 | 1.0619+N | DN200-250 |
Other materials and custom versions available upon request.
Stem Sealing Options
| Model | Standard Sealing | Optional Sealing |
|---|---|---|
| 422 (DN200-250) | PTFE-packing (-10°C to 250°C) | Graphite (-10°C to 450°C) |
| 422 (DN200-250) | EPDM (-10°C to 150°C, suitable for water & steam up to 180°C) | -- |
| 462 (DN200-250) | Stainless steel bellows with graphite (-60°C to 450°C) | Stainless steel bellows with EPDM (-60°C to 150°C, suitable for water & steam up to 180°C) |
Pressure & Temperature Ratings
| Material | PN Rating | Temperature Range | Max Operating Pressure |
|---|---|---|---|
| EN-JL1040 | PN16 | -10°C to 120°C | 16 bar |
| EN-JS1049 | PN16 | -10°C to 200°C | 16 bar |
| EN-JS1049 | PN25 | -10°C to 200°C | 25 bar |
| 1.0619+N | PN25 | -60°C to 400°C | 25 bar |
| 1.0619+N | PN40 | -60°C to 400°C | 40 bar |
Plug Designs & Flow Performance
- Parabolic plug with metal seat (standard) – Leakage Class IV (DIN EN 60534-4)
- Parabolic plug with PTFE-soft seal (max 200°C) – Leakage Class VI

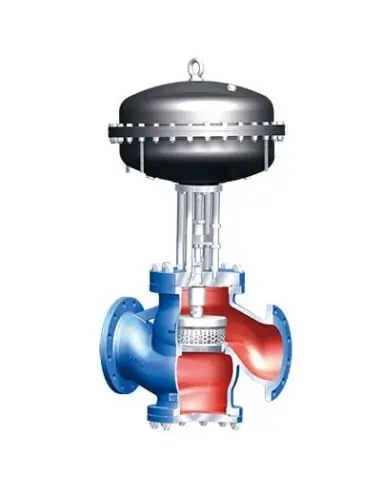

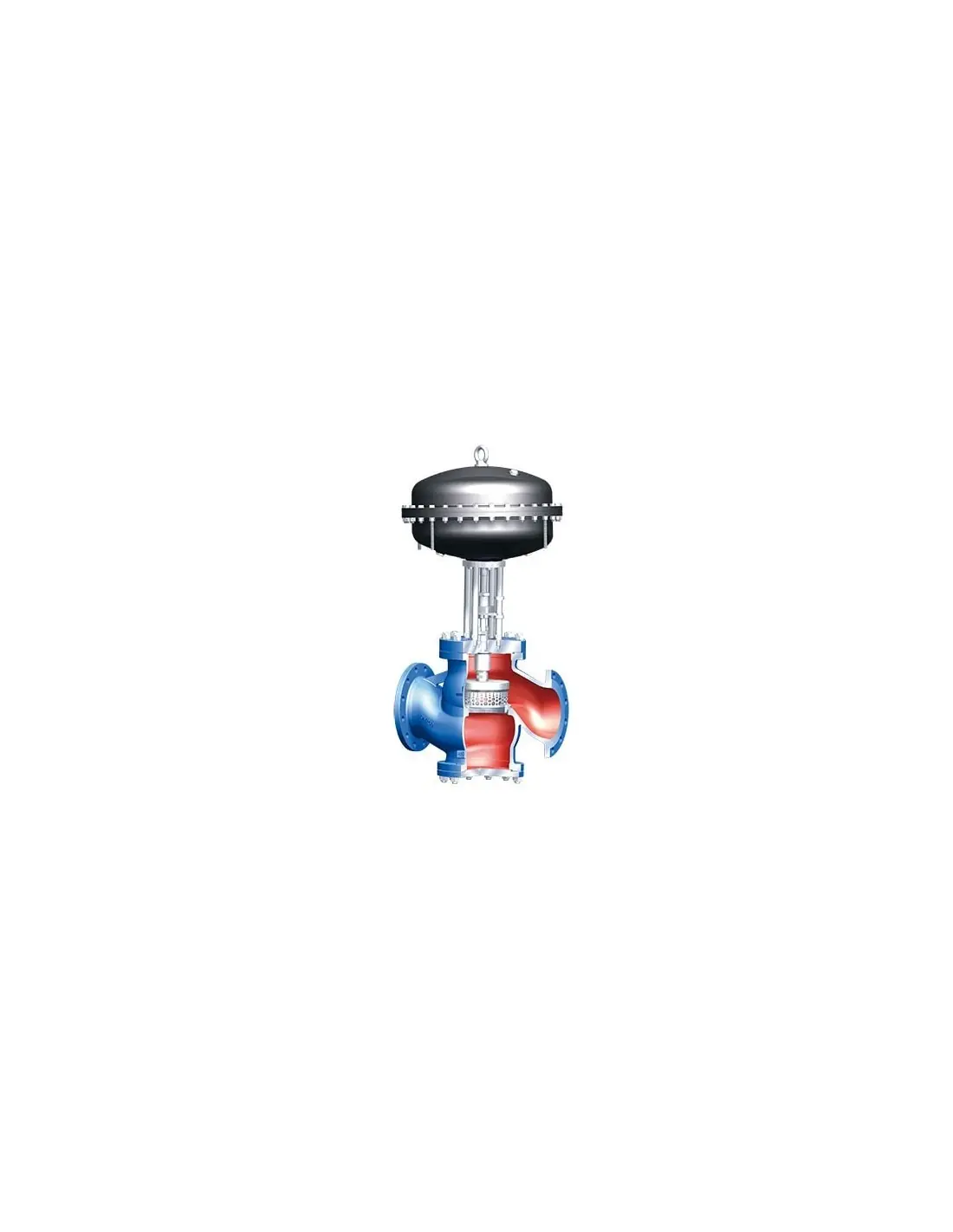

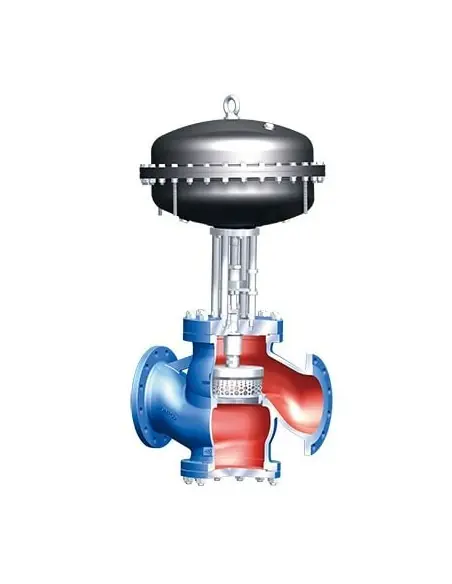

- Perforated plug (for noise reduction, metal-seated) – Ideal for gases and steam
Actuation Options
Pneumatic Actuator – ARI-DP 34 / 35
- Max Air Supply Pressure: 6 bar
- Spring-opening or spring-closing function
- Handwheel for manual operation available (optional)
Electric Actuator – ARI-PREMIO 5-25 kN / AUMA SAR
- Digital actuator control with BLDC technology
- Protection Class: IP65 (Premio), IP67 (AUMA SAR)
- Handwheel for emergency operation
- Integrated torque and travel switches
- Explosion-proof models available (ATEX-certified)
