✅ Reversible pneumatic actuator with rolling diaphragm (air supply up to 6 bar)
✅ Electric actuators with manual override and overheat protection
✅ Multiple plug designs, including perforated plugs for noise reduction
✅ Various sealing options, including PTFE, EPDM, and stainless steel bellows
✅ Available in nominal pressure ratings PN16, PN25, and PN40
✅ Leakage class IV – VI compliance (DIN EN 60534-4)
✅ Explosion-proof electric actuator versions available (ATEX-compliant)
Technical Specifications
Valve Types & Configurations

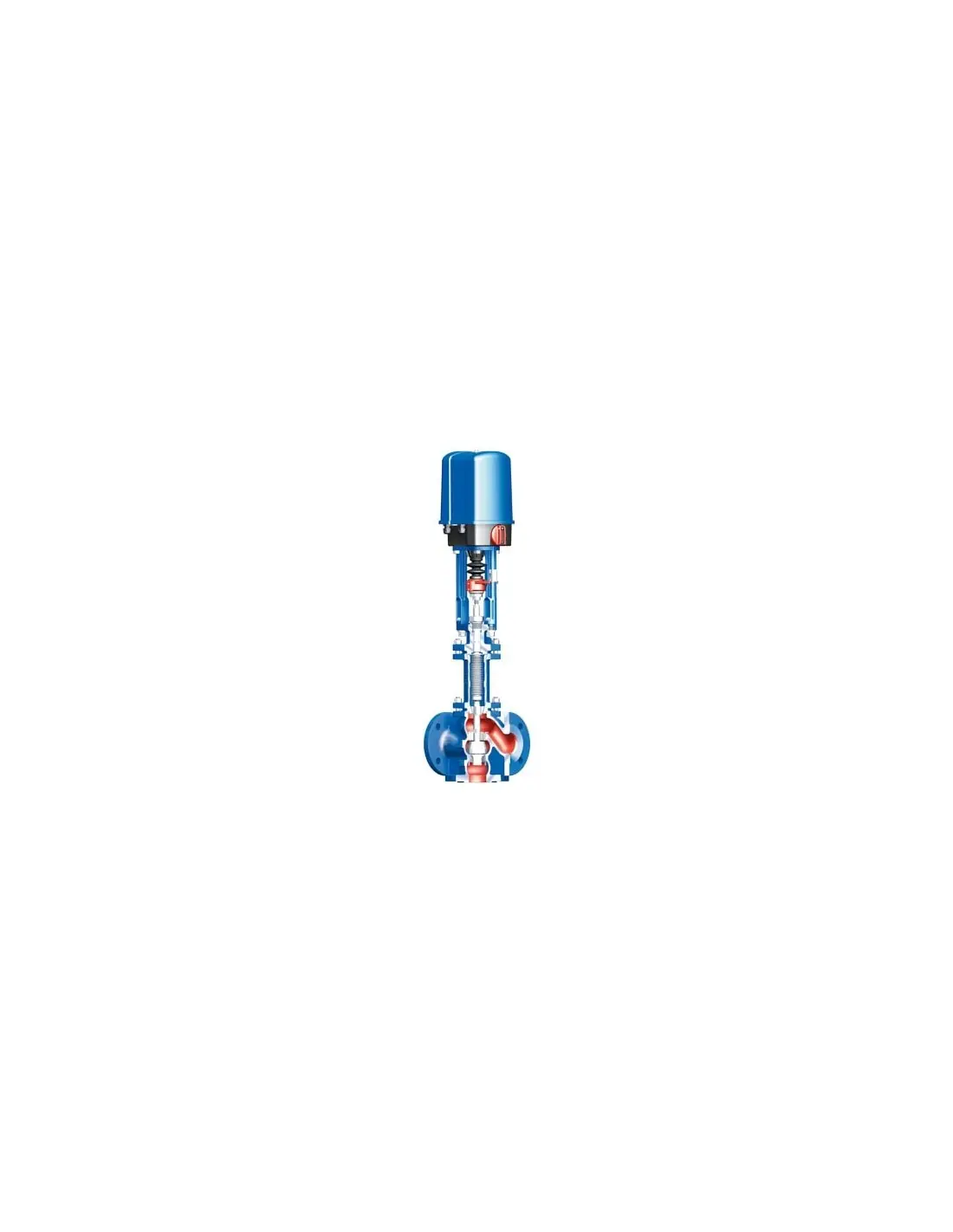

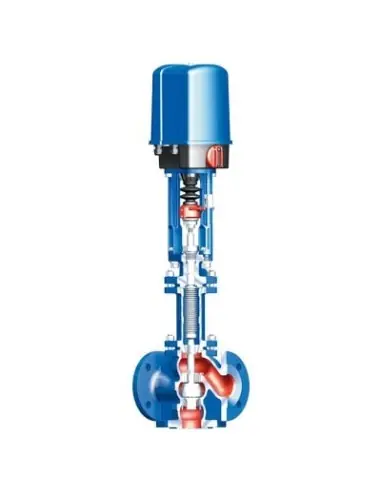

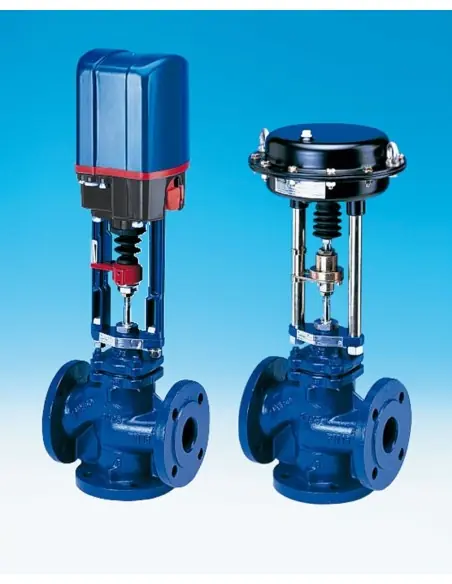

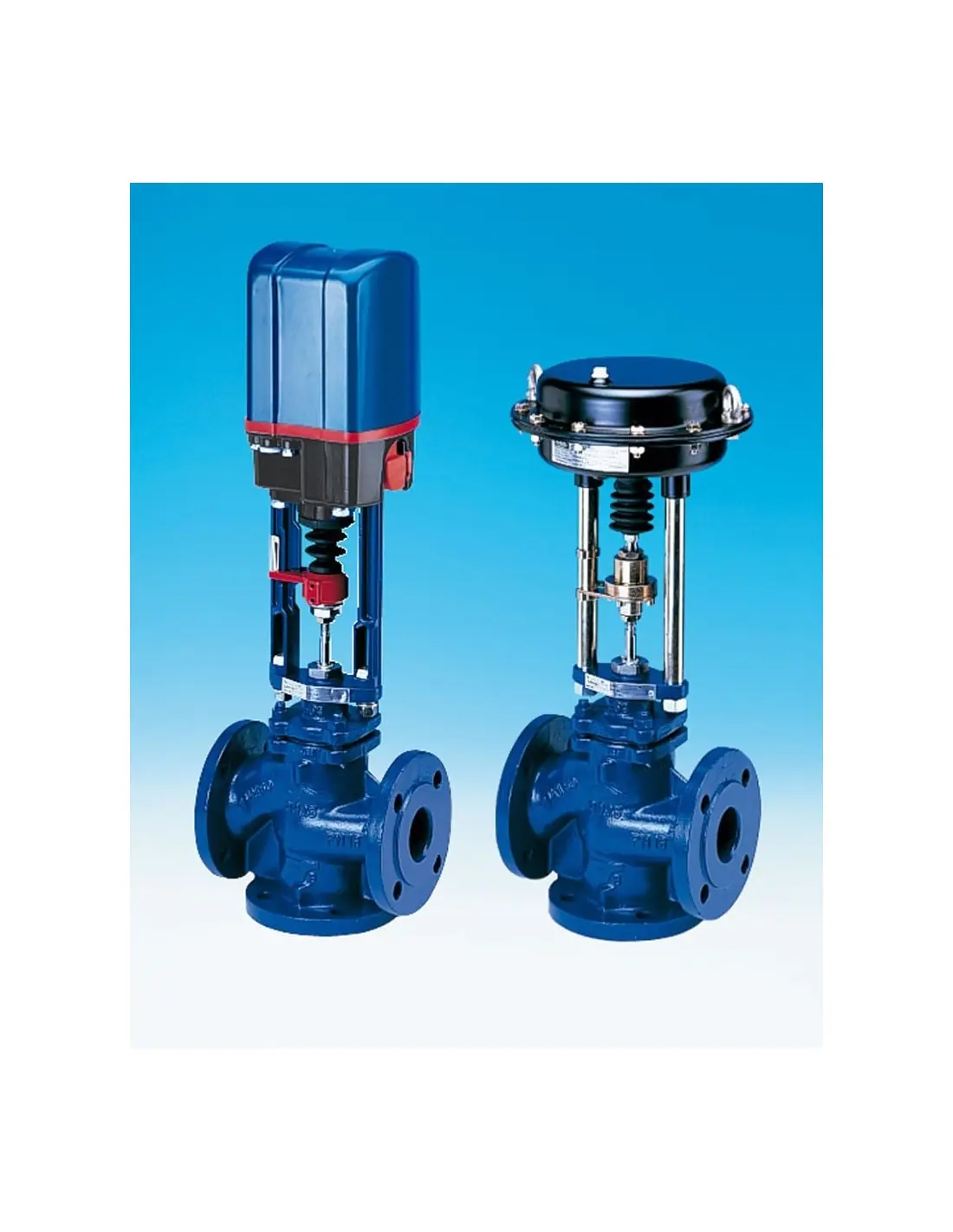

- ARI-STEVI® 450 – Three-way control valve with standard sealing options
- ARI-STEVI® 451 – Three-way control valve with stainless steel bellows for high-temperature applications
Material Options
| Model | Nominal Pressure | Material | Nominal Diameter (DN) |
|---|---|---|---|
| 12.450 / 12.451 | PN16 | EN-JL1040 | DN15-100 |
| 22.450 / 22.451 | PN16 | EN-JS1049 | DN15-150 |
| 23.450 / 23.451 | PN25 | EN-JS1049 | DN15-150 |
| 34.450 / 34.451 | PN25 | 1.0619+N | DN15-150 |
| 35.450 / 35.451 | PN40 | 1.0619+N | DN15-150 |
| 55.450 / 55.451 | PN40 | 1.4408 | DN15-150 |
Other materials and custom versions available upon request.
Stem Sealing Options
| Model | Standard Sealing | Optional Sealing |
|---|---|---|
| 450 (DN15-150) | PTFE V-ring (-10°C to 220°C) | EPDM (-10°C to 150°C, suitable for water & steam up to 180°C) |
| 451 (DN15-150) | Stainless steel bellows with graphite (-60°C to 450°C) | Stainless steel bellows with PTFE V-ring (-60°C to 220°C) |
Pressure & Temperature Ratings
| Material | PN Rating | Temperature Range | Max Operating Pressure |
|---|---|---|---|
| EN-JL1040 | PN16 | -10°C to 120°C | 16 bar |
| EN-JS1049 | PN25 | -10°C to 200°C | 25 bar |
| 1.0619+N | PN40 | -60°C to 400°C | 40 bar |
| 1.4408 | PN40 | -60°C to 450°C | 40 bar |
Plug Designs & Flow Performance
- Parabolic plug with metal seat (standard) – Leakage Class IV (DIN EN 60534-4)
- Parabolic plug with PTFE-soft seal (max 200°C) – Leakage Class VI
- Perforated plug (for noise reduction, metal-seated) – Ideal for gases and steam
Actuation Options
Pneumatic Actuator – ARI-DP 32-34
- Max Air Supply Pressure: 6 bar
- Spring-opening or spring-closing function
- Handwheel for manual operation available (optional)

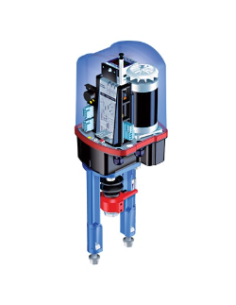

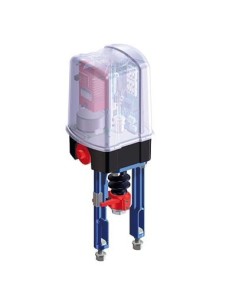

Electric Actuator – ARI-PREMIO 2.2-25 kN / AUMA SAR
- Digital actuator control with BLDC technology
- Protection Class: IP65 (Premio), IP67 (AUMA SAR)
- Handwheel for emergency operation
- Integrated torque and travel switches
- Explosion-proof models available (ATEX-certified)
