3 Way (L) Ball Valve - 3130 Series | 4G Ghidini

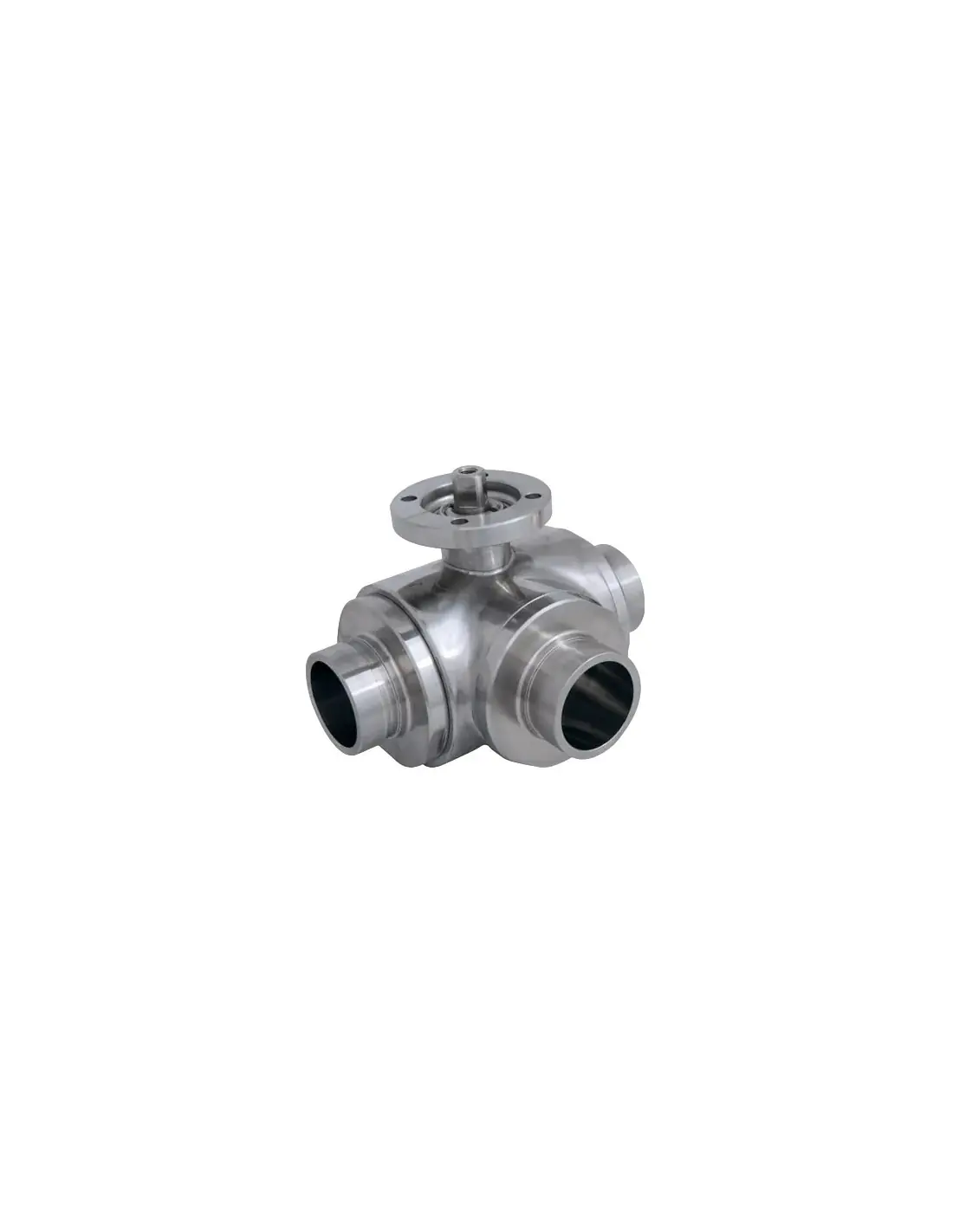

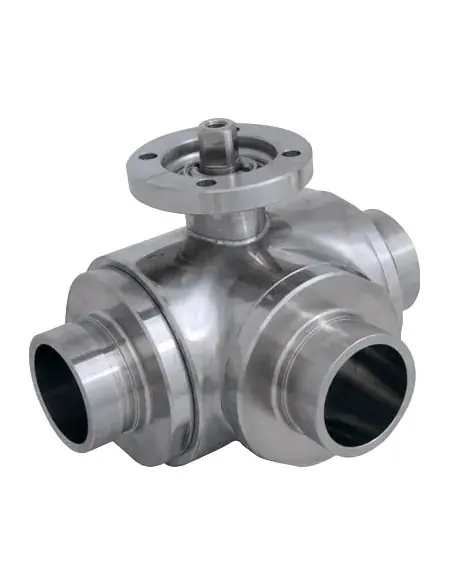

Ghidini 3130 3-Way Ball Valve 4G, L-Port

Type 3130 is a stainless steel three-way ball valve with L-port configuration and 4 seals construction. Designed for automated flow diversion from a common line to one of two branches; not intended for mixing or proportional flow control. The series features an ISO 5211 / DIN 3337 top flange for actuator mounting.

Construction and Materials

  • Body, ball, and stem: AISI 304L / 1.4307 or AISI 316L / 1.4404
  • Ball seats: Modified Virgin PTFE
  • Stem sealing: PTFE with FKM O-ring
  • Flow: full bore
  • Standard temperature range: -20°C to +170°C

Connections and Pressure Ratings

Available with internal threads ISO 228 F/F/F and NPT F/F/F, as well as sanitary DIN 11851 connections. Nominal pressure classes by size: up to PN100 (small), PN64 (medium), PN40 (large), PN16 (4”)

Seat Options

  • PTFE with glass: -20°C to +170°C
  • PTFE with carbon: -20°C to +180°C
  • PTFE with stainless filler: -20°C to +200°C
  • UHMW polyethylene: -20°C to +80°C

Automation

ISO 5211 flange supports pneumatic or electric actuators. Sizing torque depends on valve size, differential pressure, seat material, and switching frequency. For automated skids, verify L-port orientation before limit switch wiring.

Applications

Suitable for process water, CIP auxiliary circuits, chemicals compatible with PTFE/FKM, food and beverage with M.O.C.A. CE 1935/2004 documentation, and ATEX zones requiring antistatic design.

FAQ

Is this a control valve?
No. Intended for isolation and flow diversion only.

When to select 316L?
For more corrosive media or when full stainless wetted compatibility is required.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • NPT
  • Revolving Threaded Flanges
  • Butt Weld
  • Clamp
  • Garolla
  • Victaulic
  • ISO 228-1
  • DIN 11851
  • SMS
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “L”

Drive: ISO 5211 – DIN 3337 flange for actuator

Flow: full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN20 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C +170°C

Outer finish: Sandblasted

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
