4G Ghidini – Technical profile of a stainless steel ball valve and fitting manufacturer

4G Ghidini is an Italian manufacturer of stainless steel ball valves and fittings for food, chemical and pharmaceutical applications. The company states that it has manufactured valves and fittings since 1978 and works mainly with AISI 304L and AISI 316L stainless steel.

The product range includes:

two-way stainless steel ball valves,
three-way ball valves with L-port or T-port configuration,

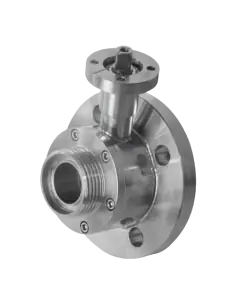

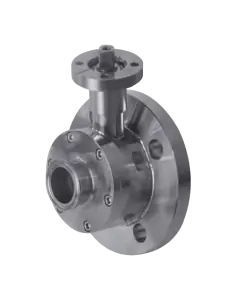

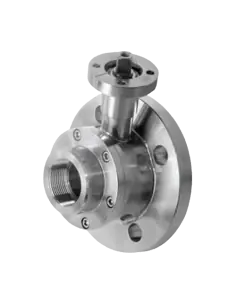

ball valves for tank bottom applications,
high-pressure ball valves,
wafer flat body ball valves,
stainless steel fittings,
DIN 11851, clamp, ISO, NPT and threaded connections.

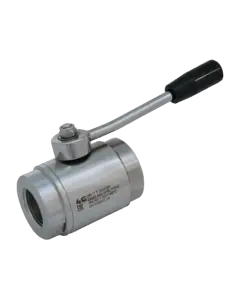

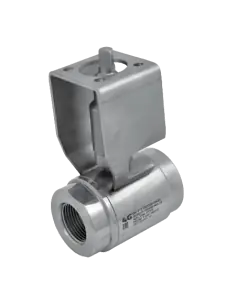

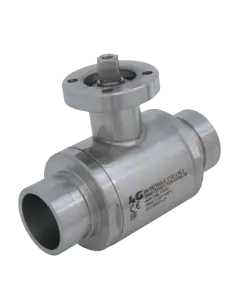

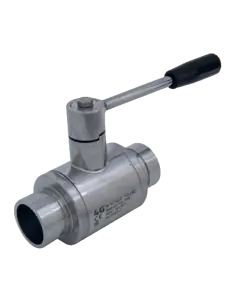

4G Ghidini two-way ball valves are used mainly for On/Off isolation in hygienic and industrial lines. They may be supplied with manual lever operation or with ISO 5211 mounting interface for pneumatic or electric actuation. Standard and integral PTFE sealing configurations are available depending on the valve type.

Three-way ball valves are used for flow diversion, flow selection or simple distribution duties. The selection between L-port and T-port must be based on the required flow path and valve position logic. A three-way valve should not be selected only by connection size; the P&ID function and allowable intermediate positions must be checked.

Stainless steel fittings are used to complete hygienic and process piping systems. 4G Ghidini lists fittings according to DIN 11851, clamp DIN 32676, ISO 228, ISO 7 and NPT threads. For food, pharmaceutical or chemical lines, the engineer must verify material grade, seal material, surface condition, cleanability and connection standard.

Technical selection should include:

AISI 304L or AISI 316L wetted parts,
two-way or three-way flow function,
L-port or T-port ball configuration,
seal material,
connection standard,
pressure and temperature limits,
manual or actuated operation,
suitability for CIP / cleaning procedures where applicable.

4G Ghidini products are relevant for process engineers, hygienic piping designers, maintenance teams and OEM skid builders working with stainless steel process lines and compact isolation or diversion valves.

4G GHIDINI® Srl is a company specialized in the production of stainless steel ball valves and fittings.

Founded in 1978, with over 40 years of experience, it has always set the quality of the product and service as its main objectives. Product quality ensured by the use of raw material exclusively sourced in Europe and by transforming and processing them entirely in the production site located in Lumezzane, Brescia; no import components are used, our product is 100% Made in Italy. Service quality given to stock availability of all the items, added value in terms of offer and guarantee of timeliness in deliveries.

All the products are designed, manufactured and, before being marketed, 100% tested following a correct certified construction practice and with the aid of advanced machinery to guarantee end-users a high-level product.

The company is UNI-EN ISO 9001:2015 certified.

4G GHIDINI products are used in the most various industrial applications, including Pharmaceutical, Biotechnological and Cosmetic industry; Food and Beverage; Chemical industry, Process industry, Water treatment and Energy production.
