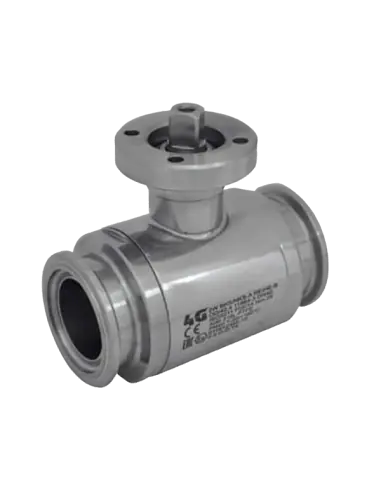

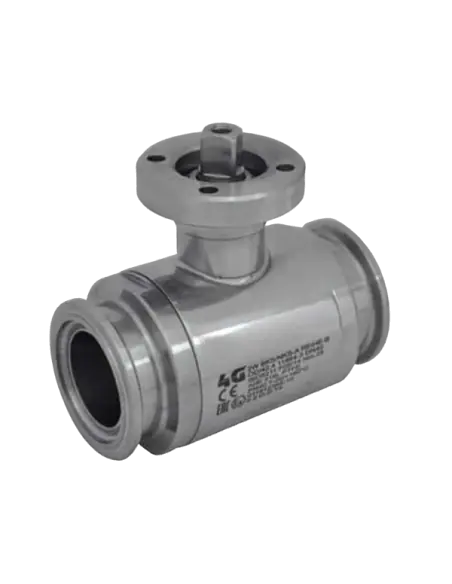

Aseptic Spherical Ball Valve 4G Ghidini 103068

Two-way ball valve for aseptic process lines, compliant with DIN 11864-3, featuring BKS + NKS Form A female/male connections. Series 103068 is specified for installations requiring detachable aseptic connections and actuator mounting via ISO 5211 / DIN 3337 interface.

Technical Data

  • Type: two-way ball valve
  • Flow: full or reduced bore
  • Body material: AISI 316L / 1.4404
  • Seats: modified virgin PTFE
  • Operating temperature: -20°C to +170°C
  • External finish: polished
  • Pressure classes: PN25, PN40, PN64, PN100, depending on DN and configuration
  • Options: ATEX antistatic device, M.O.C.A. CE 1935/2004 certification

Reihe Selection

  • Reihe A: for pipe DIN 11866-A / DIN 11850 Reihe 2, DN10–DN100
  • Reihe B: for pipe DIN 11866-B / ISO 1127, DN10–DN80
  • Reihe C: for pipe DIN 11866-C / ASTM A-270, DN10–DN100

Selection is not based solely on DN. Actual pipe dimensions, DIN 11866 series, BKS/NKS geometry, and gasket compatibility must be verified.

Sealing and Applications

Standard PTFE seats are suitable for process water, food, beverage, cosmetics, pharmaceutical fluids, and CIP/SIP circuits, provided compatibility with 316L and PTFE. Alternative seats: PTFE glass, PTFE carbographite, PTFE inox (up to +200°C), UHMW-PE (up to +80°C).

FAQ

When is 103068 selected?
When the process line requires BKS + NKS Form A female/male connection and actuator interface.

Is it used for flow regulation?
Not as a primary function. This is an on/off isolation valve for aseptic process applications.

Standard (Options)
  • DIN
Connection (Options)
  • Aceptik
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • ASEPTIK normative DIN 11864-3 REIHE A, BKS + NKS Form A. For TUBE according to normative DIN 11866-A (DIN 11850 REIHE 2)
  • ASEPTIK normative DIN 11864-3 REIHE B, BKS + NKS Form A. For TUBE according to normative DIN 11866-B (ISO 1127)
  • ASEPTIK normative DIN 11864-3 REIHE C, BKS + NKS Form A. For TUBE according to normative DIN 11866-C (ASTM A-270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN10 to DN80

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
