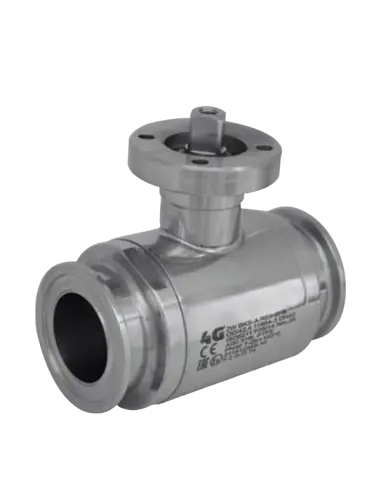

Aseptic Ball Valve 4G Ghidini 103069

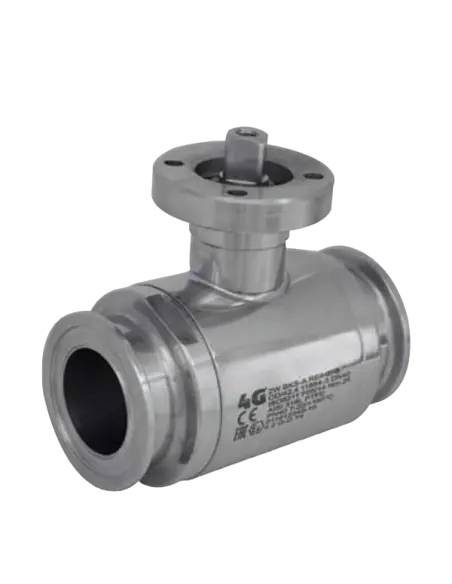

Two-way ball valve for aseptic process lines according to DIN 11864-3, with male connection BKS Form A. Variant 103069 differs from 100169 by providing a shaft for actuator mounting with ISO 5211 / DIN 3337 flange, enabling both manual and automated on/off operation.

Technical Data

  • Type: two-way ball valve
  • Flow: full or reduced bore
  • Body material: AISI 316L / 1.4404
  • Seats: modified virgin PTFE
  • Operating temperature: -20°C to +170°C
  • Finish: polished
  • Pressure classes: PN25, PN40, PN64, PN100 (by DN)
  • Options: ATEX antistatic device, M.O.C.A. CE 1935/2004 certification.

Piping Series Compatibility

  • Reihe A: DIN 11866-A / DIN 11850 Series 2, DN10–DN100
  • Reihe B: DIN 11866-B / ISO 1127, DN10–DN80
  • Reihe C: DIN 11866-C / ASTM A-270, DN10–DN100

Selection of the correct Reihe must be based on actual pipe OD, BKS geometry, and aseptic gasket, not only nominal diameter.

Sealing and Media

Standard PTFE sealing is compatible with process water, food, beverage, cosmetics, pharmaceutical fluids, and CIP/SIP cycles, provided chemical compatibility with 316L and PTFE. Alternative seats available: PTFE glass, PTFE carbographite, PTFE inox (up to +200°C), UHMW-PE (up to +80°C).

FAQ

When is 103069 selected?
When a male BKS Form A DIN 11864-3 connection and actuator interface are required for pneumatic or electric actuation.

Is it a control valve?
Not for primary control. Designed for isolation or line switching in aseptic process applications.

Standard (Options)
  • DIN
Connection (Options)
  • Aceptik
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • ASEPTIK normative DIN 11864-3 REIHE A, BKS Form A. For TUBE according to normative DIN 11866-A  (DIN 11850 REIHE 2)
  • ASEPTIK normative DIN 11864-3 REIHE B, BKS Form A. According to normative DIN 11866-B for TUBE (ISO 1127)
  • ASEPTIK normative DIN 11864-3 REIHE C, BKS Form A. For TUBE according to normative DIN 11866-C (ASTM A-270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN10 to DN80

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C +170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
