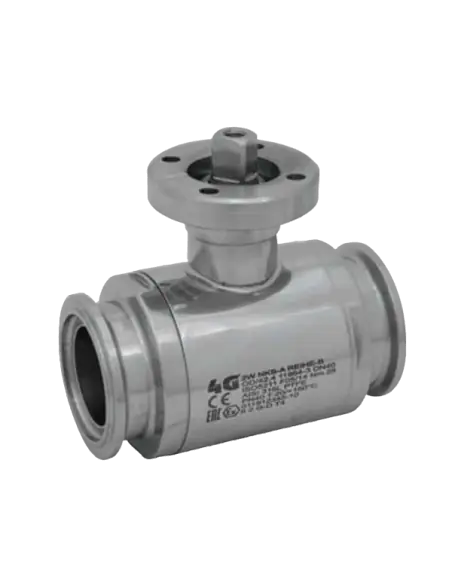

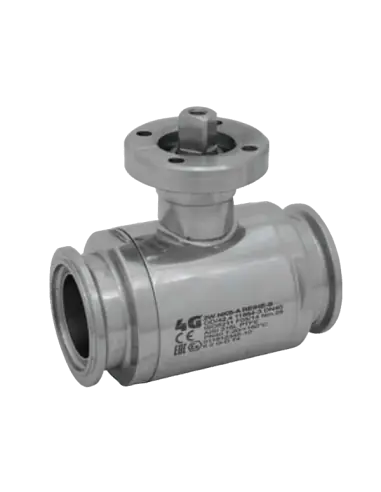

Aseptic Spherical Ball Valve 4G Ghidini 103067

Two-way ball valve for aseptic process lines according to DIN 11864-3, with female NKS Form A connection. Series 103067 is designed for installations requiring automation capability, as the stem is equipped with an ISO 5211 / DIN 3337 flange for pneumatic or electric actuator mounting.

Technical Data

  • Body and internal parts: AISI 316L / 1.4404
  • Flow: full or reduced bore
  • Seats: modified virgin PTFE
  • Operating temperature: -20°C to +170°C
  • External finish: polished
  • Pressure classes: PN25, PN40, PN64, PN100, depending on DN
  • Options: ATEX antistatic device and M.O.C.A. CE 1935/2004 compliance for food contact.

Reihe Selection

  • Reihe A: for pipe DIN 11866-A / DIN 11850 Reihe 2, DN10–DN100
  • Reihe B: for pipe DIN 11866-B / ISO 1127, DN10–DN80
  • Reihe C: for pipe DIN 11866-C / ASTM A-270, DN10–DN100

Series selection must be based on actual pipe dimensions and aseptic connection geometry, not only nominal diameter.

Sealing and Media

Standard PTFE sealing is suitable for process water, food, beverages, cosmetics, and pharmaceutical fluids compatible with 316L/PTFE. For specific conditions, seats in PTFE with glass, carbographite, stainless steel up to +200°C, and UHMW polyethylene up to +80°C are available.

FAQ

When is 103067 selected?
When a female NKS Form A connection and ISO 5211 actuator interface are required.

Is this a control valve?
Not primarily. It is mainly used for on/off isolation in aseptic lines.

Standard (Options)
  • DIN
Connection (Options)
  • Aceptik
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • ASEPTIK normative DIN 11864-3 REIHE A, NKS Form A. For TUBE according to normative DIN 11866-A (DIN 11850 REIHE 2)
  • ASEPTIK normative DIN 11864-3 REIHE B, NKS Form A. For TUBE according to normative DIN 11866-B (ISO 1127)
  • ASEPTIK normative DIN 11864-3 REIHE C, NKS Form A. For TUBE according to normative DIN 11866-C (ASTM A-270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN10 to DN80

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
