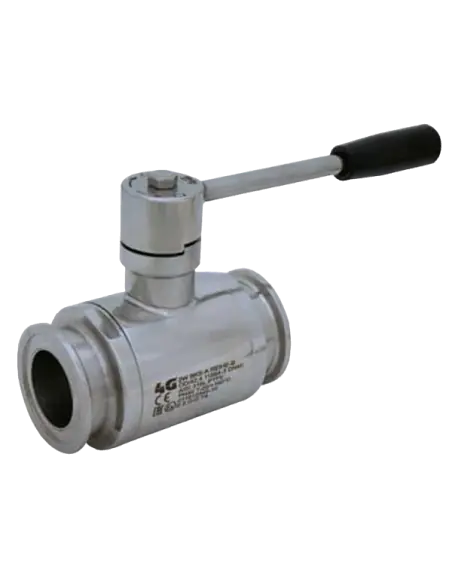

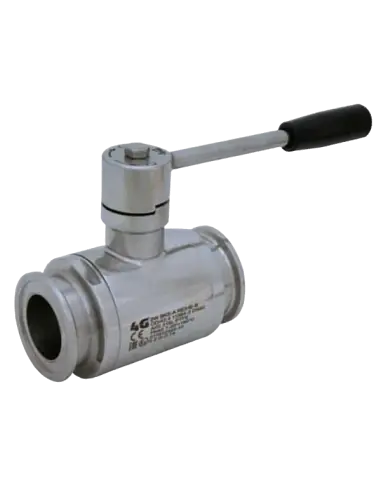

Aseptic Spherical Ball Valve 4G Ghidini 100169

Two-way ball valve for aseptic process lines, featuring male BKS Form A connection according to DIN 11864-3 Series A/B/C. Model 100169 is specified for lines where the mating connection is NKS/CNKS and a detachable aseptic joint with controlled gasket compression is required.

Pipe Series Connections

  • Series A: for pipe DIN 11866-A / DIN 11850 Series 2
  • Series B: for pipe DIN 11866-B / ISO 1127
  • Series C: for pipe DIN 11866-C / ASTM A-270

Series selection must be based on actual piping, not only DN, as pipe dimensions and aseptic connection geometry differ between standards.

Technical Data

  • Material: AISI 316L / 1.4404
  • Operator: stainless steel lever
  • Flow: full or reduced bore
  • Sizes: DN10–DN100, with DN10–DN80 for series with reduced range
  • Seats: modified virgin PTFE
  • Operating temperature: -20°C to +170°C
  • External finish: polished
  • Pressure ratings: PN25, PN40, PN64, PN100

Sealing and Compatibility

Standard version with modified virgin PTFE is suitable for process water, food, beverage, cosmetics, and pharmaceutical fluids, provided compatibility with AISI 316L and PTFE. Alternatives: PTFE with glass (up to +170°C), PTFE with carbographite (up to +180°C), PTFE with stainless steel (up to +200°C), UHMW polyethylene (up to +80°C).

Certification Options

On request: antistatic ATEX arrangement II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db, as well as M.O.C.A. CE 1935/2004 compliance for food contact.

FAQ

When is 100169 selected?
When a male aseptic BKS Form A connection per DIN 11864-3 is required.

Is this a control valve?
Not as primary function. Designed for on/off isolation in aseptic lines.

Standard (Options)
  • DIN
Connection (Options)
  • Aceptik
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection:

  • ASEPTIK normative DIN 11864-3 REIHE A, BKS Form A. For TUBE according to normative DIN 11866-A (DIN 11850 REIHE 2)
  • ASEPTIK normative DIN 11864-3 REIHE B, BKS Form A. For TUBE according to normative DIN 11866-B (ISO 1127)
  • ASEPTIK normative DIN 11864-3 REIHE C, BKS Form A. For TUBE according to normative DIN 11866-C (ASTM A-270)

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from DN10 to DN100
  • from DN10 to DN80

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C +170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
