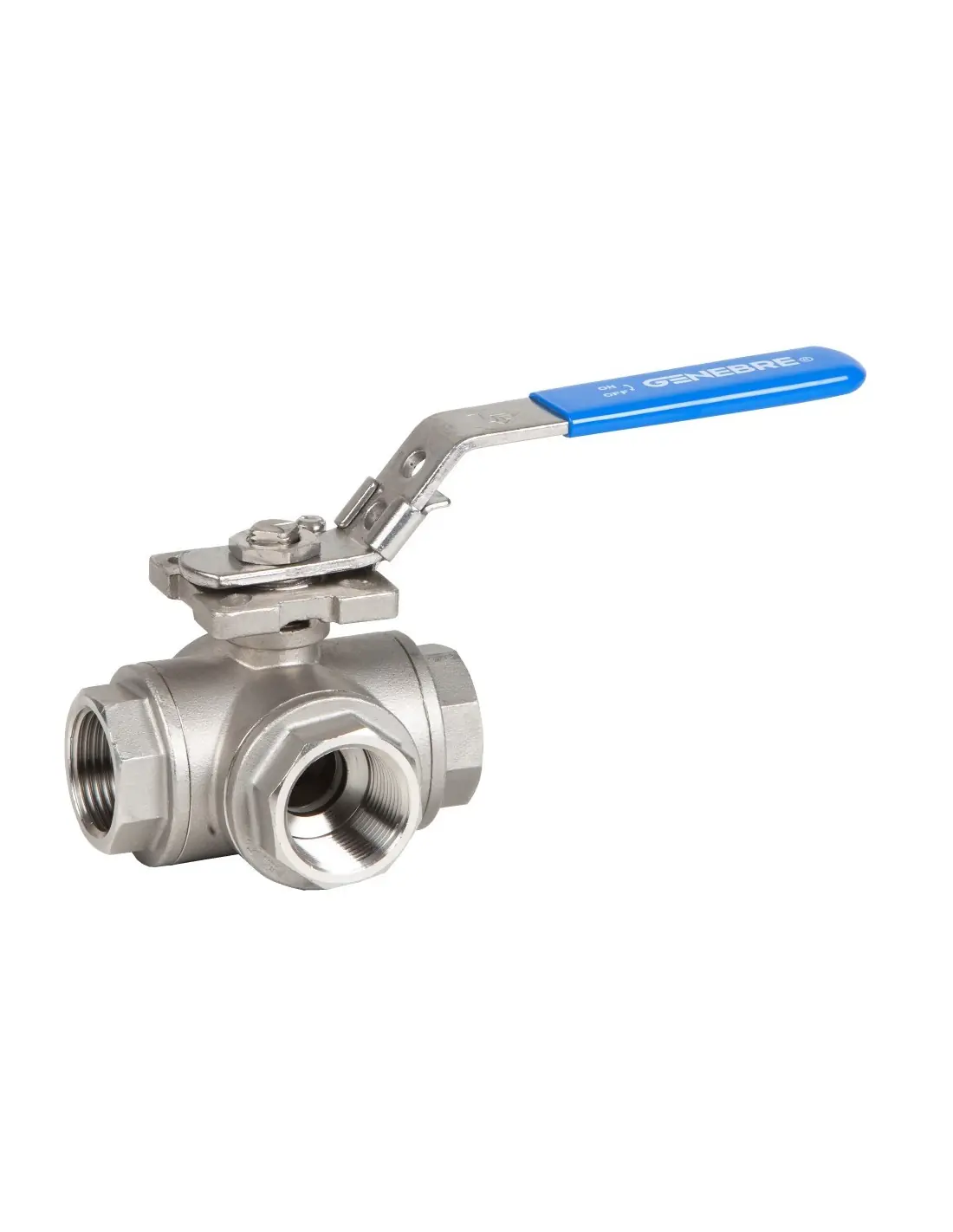

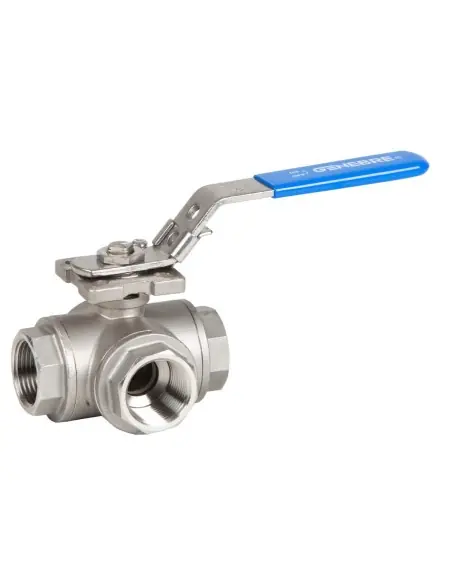

Genebre 2041 Three-Way Ball Valve, T-Port, Reduced Bore

The Genebre 2041 is a three-way ball valve with a T-port configuration and reduced bore. It is designed for selection, distribution, or interconnection of three process lines, depending on ball position. Not intended for proportional flow control applications.

Construction

Body and end cap: stainless steel 1.4408 / CF8M.
Ball: 1.4408.
Stem: AISI 316, anti-blowout design.
Seats: PTFE + 15% glass fibre, four seats.
Stem sealing: PTFE and O-ring FKM / Viton.
Antistatic device between ball, stem, and body.
Lockable handle mechanism.

Connection, Pressure, and Temperature

Threaded ends per ISO 7-1 / EN 10226-1. Maximum working pressure 63 bar. Temperature range -25°C to +180°C. NPT threads available (2040N); confirm code and thread standard before ordering.

Hydraulic Data

Available sizes: 1/4” to 2 1/2”. Kv values range from 11 m³/h (smallest) to 205 m³/h (2 1/2”). Reduced bore design must be considered in pressure drop calculations, especially for high flow or limited differential head applications.

T-Port Operation

The T-port allows multiple flow patterns with 90° rotation. For actuation, verify ball position, rotation direction, and alignment with limit switches or actuator indicators.

Automation and Maintenance

Top mounting per ISO 5211 enables direct pneumatic or electric actuator installation. Install only in clean piping; avoid weld debris or particulates that may damage seats.

Applications

Suitable for process water, compressed air, neutral liquids, auxiliary circuits, skids, and feed/return selection lines. For chemical service, verify compatibility with CF8M, PTFE+GF, and FKM materials.

Standard (Options)

Connection (Options)

Material (Options)

1.4408

Pressure Rating (Options)

PN 63

Seat (Options)

PTFE + 15 % G.F

Datasheet and documents

Description

Const.: AISI 316; Four seats PTFE + GF body and stem seats: PTFE o’ring stem: Viton. NPT threaded ends. PN 63. Temp. -25ºC +180ºC. Direct assembling S/ISO 5211. Manually operated by handle with locking system.

Reference: 2040N

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2041 02	THREE WAYS BALL VALVE "T" 1/4"	1	0.7	6/36
2041 03	THREE WAYS BALL VALVE "T" 3/8"	1	0.675	6/30
2041 04	THREE WAYS BALL VALVE "T" 1/2"	1	0.621	6/36
2041 05	THREE WAYS BALL VALVE "T" 3/4"	1	0.988	3/18
2041 06	THREE WAYS BALL VALVE "T" 1"	1	1.447	2/12
2041 07	THREE WAYS BALL VALVE "T"1"1/4	1	2.958	1/8
2041 08	THREE WAYS BALL VALVE "T"1"1/2	1	3.7	1/6
2041 09	THREE WAYS BALL VALVE "T" 2"	1	6.31	1/4
2041 10	3 WAYS BALL V. "T" BORE 2 1/2"	1	8.925	1/2
