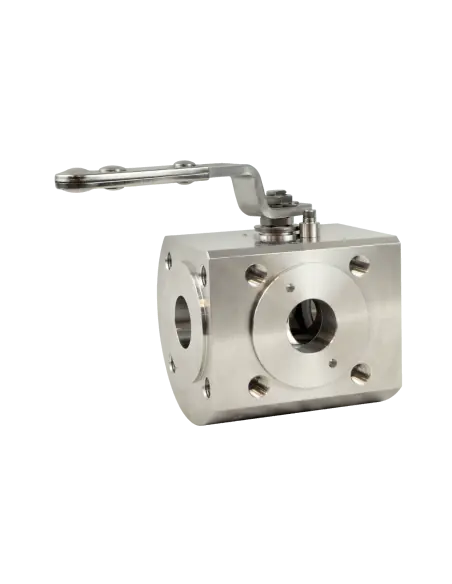

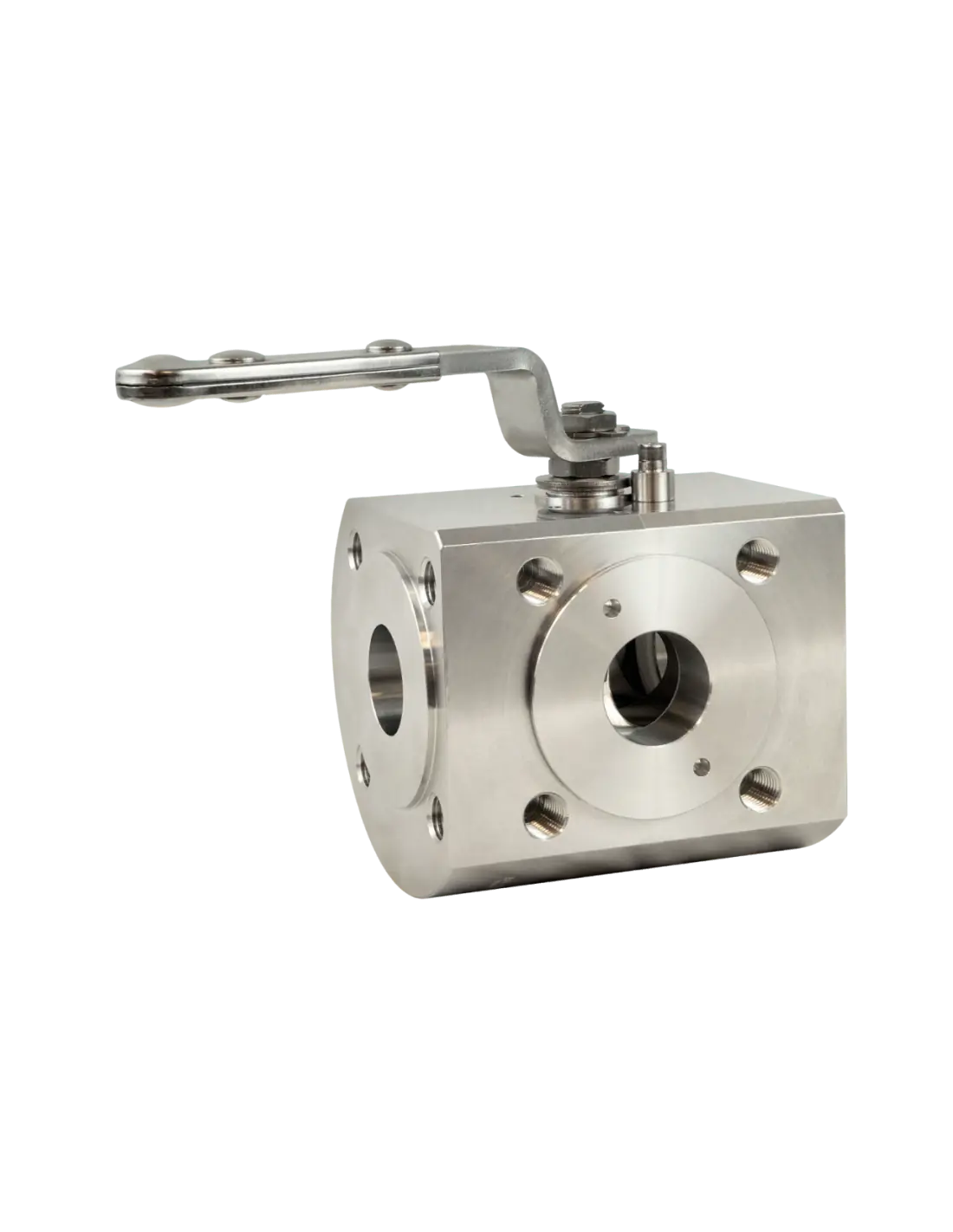

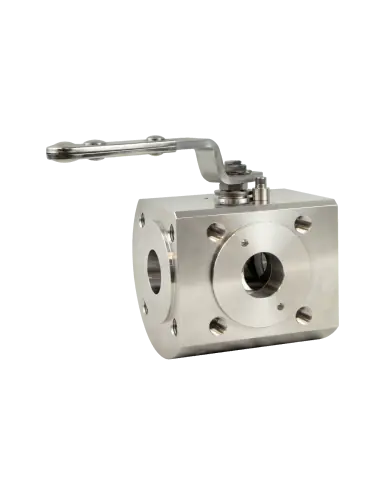

3 Way Ball Valve - FZ4 | ADLER

3 Way Ball Valve - FZ4 | ADLER – Engineered for Precision and Reliability

The 3 Way Ball Valve - FZ4 | ADLER stands out as the ultimate solution for industrial fluid control. Designed with durability and efficiency in mind, this versatile valve makes managing flow simple, reliable, and highly effective. Whether you're in manufacturing, chemical processing, or water management, it offers seamless performance even under demanding conditions.

Features and Benefits of the 3 Way Ball Valve - FZ4 | ADLER

  • Efficient Flow Control: The three-way design allows you to easily direct or shut off flow between different pipelines. With one simple turn, switch between flow paths or isolate sections for repairs without downtime.
  • Robust Construction: Crafted from high-quality materials, the FZ4 is resistant to wear and corrosion. It ensures long life and reliability, even when dealing with harsh chemicals or extreme environments.
  • Leak-Proof Performance: Precision engineering guarantees a tight seal every time. Forget about leaks—this valve means you can trust your system to run safely and efficiently.
  • Easy Operation: A smooth-action handle makes operation quick and comfortable, saving time and reducing effort. No special tools or skills needed—just straightforward control at your fingertips.
  • Versatility: Adaptable to a wide range of industrial uses, the 3 Way Ball Valve - FZ4 | ADLER is perfect for redirecting fluids, mixing flows, or shutting off sections of your line. One valve, many solutions.
  • Low Maintenance: Designed for trouble-free service, the FZ4 minimizes maintenance needs, keeping operations running smoothly and reducing unexpected costs.

Choose the 3 Way Ball Valve - FZ4 | ADLER to gain precise control over your fluid systems. Its innovative build streamlines any process and protects your equipment from wear and tear. Bring efficiency, safety, and adaptability to your workflow with a valve you can count on, day after day. Make a smart investment in lasting quality and performance.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A105
  • ASTM A479 Type 304
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE
  • RPTFE

Datasheet and documents

Description

Three way 90° ball valve “wafer type”, full bore,  manufactured from round bar, according to EN 12516.2; ASME B16.34; ISO 14313.

Available size from DN 15 to DN 150 in carbon steel,  stainless steel and special steel

Rating PN 10 ÷ 40 / ANSI 150 .

With “L” bore type ball

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire-safe execution according to BS6755 API 607/6FA (patent n° 00219617).

– according to  PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 for oxigen serivce

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE seats filled glass – carbon – S.S. – bronze, metal core

cryogenic valves

stem extention

oval handle

pneumatic actuator double/single acting

electric motor

manual gear box

electric-pneumatic limit switches/solenoid valves

Certificates

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
