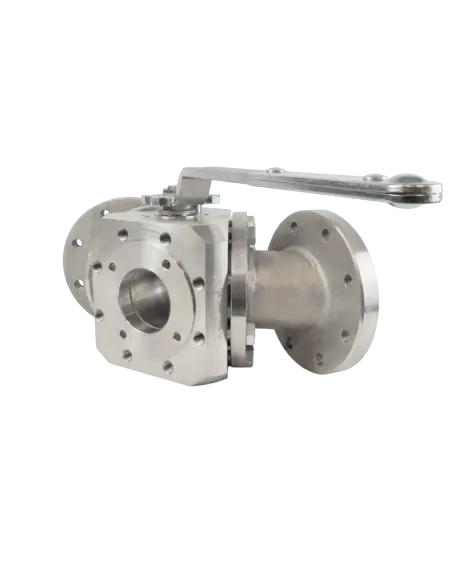

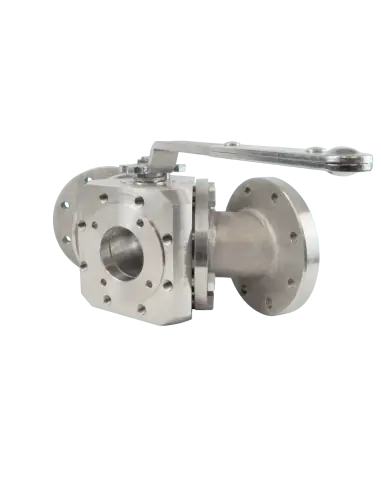

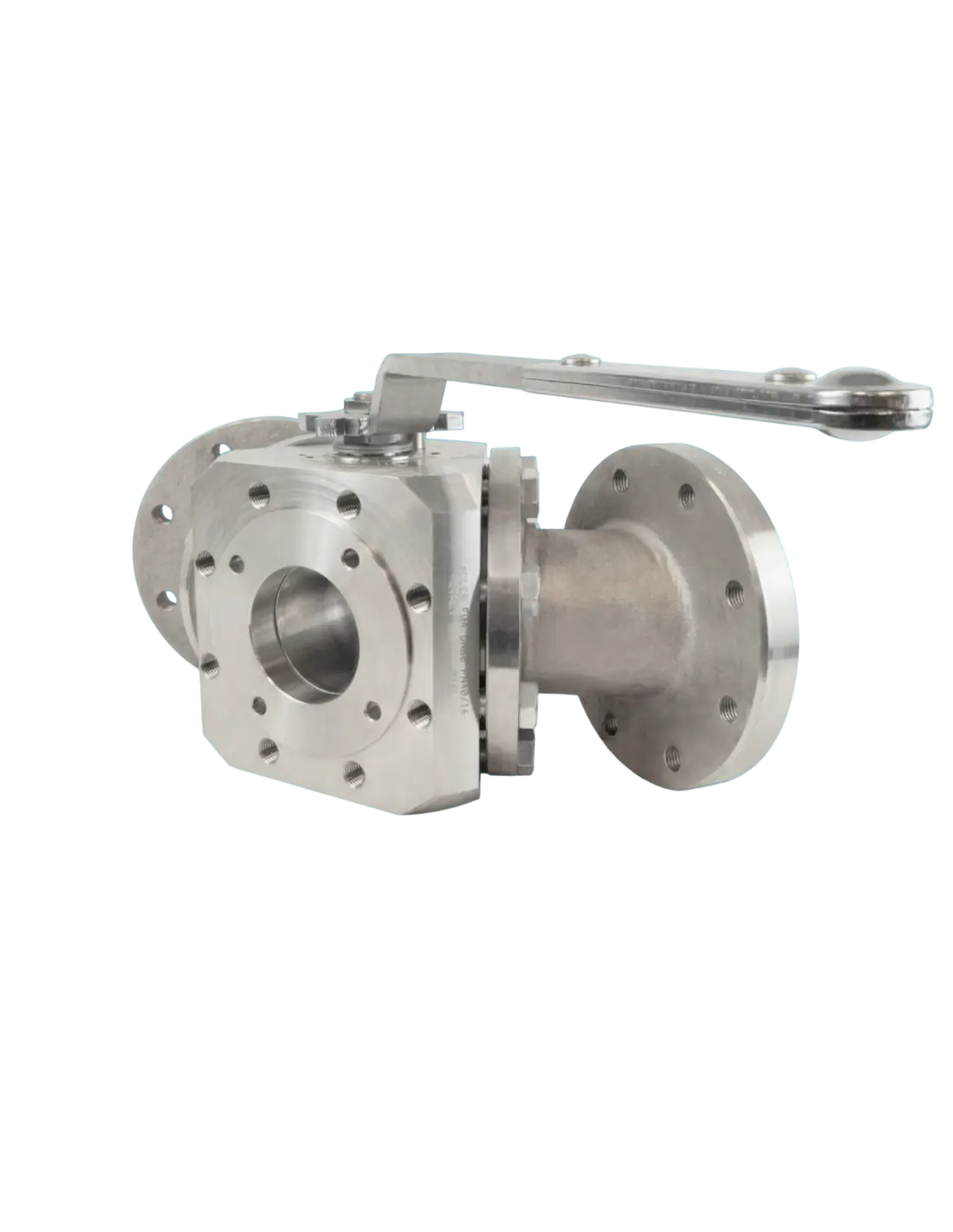

ADLER FV4 Three-Way Ball Valve, Wafer 90°

The ADLER FV4 is a full-bore, three-way ball valve, wafer type, with 90° operation. Designed for installation between flanges, it is suitable for compact manifolds where flow selection or diversion is required without increasing installation length. Available in DN40–DN200, PN10–PN40 / ANSI 150, with ANSI 300/600 available on request.

Construction and Materials

  • Body/inserts: ASTM A105, ASTM A479 316/316L, or ASTM A351 CF8M.
  • Ball: ASTM A479 304/304L, ASTM A351 CF8, ASTM A479 316/316L, or ASTM A351 CF8M.
  • Stem: 304/304L or 316/316L, anti-blowout design.
  • Seats: PTFE, optional RPTFE.
  • Stem sealing: chevron rings PTFE/graphite, O-ring FKM on request.

Standards and Project Options

Design in accordance with ASME B16.34, EN 12516-2, full bore per ISO 14313. Flange dimensions per EN 1092-1 or ASME B16.5. Options: PED 2014/68/EU, ATEX 2014/34/EU, fire-safe ISO 10497 / API 607, ISO 15848 Class A, antistatic device, SIL 3 capable for actuated valves.

Operational Selection

Prior to ordering, confirm the flow plan (ball drilling), especially for T-port, bypass, or tank selection applications. Position indicator, lever, and limit switches must match the hydraulic path.

Automation and Applications

Top flange ISO 5211 allows pneumatic or electric actuator, gear operator, and accessories (limit switches/solenoid valves). For DN150–DN200, gear operator is recommended. Typical media: process water, air, neutral liquids, skids, chemical networks compatible with construction materials, and feed/return selection lines.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105N
  • ASTM A351 CF8M
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE
  • RPTFE

Datasheet and documents

Description

Three way 90° ball valve “wafer type”, full bore, manufactured from round bar or casted according to EN 12516.2; ASME B16.34, ISO 14313

Patented n° 00219616.

Available size from DN 40 to DN 200 in carbon steel, stainless steel and special steel

Rating PN 10÷40 / ANSI 150 (On request available ANSI 300/600).

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– according to  PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 for oxigen serivce

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE seats filled glass – carbon – S.S. – bronze, metal core

cryogenic valves

stem extention

oval handle

pneumatic actuator double/single acting

electric motor

manual gear box

electric-pneumatic limit switches/solenoid valves

Certificates

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
