Adler S.p.A. – Technical profile of an industrial ball valve manufacturer

Adler S.p.A. is an Italian manufacturer specialising in industrial ball valves. The company states that it was founded in 1989 and that its production is based in Santo Stefano Ticino, Italy.

The Adler product range includes a wide variety of ball valve designs, such as:

  • two-piece split-body ball valves,
  • three-way ball valves,
  • cryogenic ball valves,
  • jacketed ball valves,
  • flanged ball valves,
  • threaded and welded-end valves,
  • carbon steel and stainless steel executions.

Adler lists ball valves for cryogenic service down to -196°C, heating-jacket ball valves, Venturi-port split-body valves and three-way ball valves in several PN and ANSI configurations.

Two-piece split-body ball valves are used for industrial isolation of liquids and gases where compact construction and defined sealing performance are required. Three-way valves are used for diverting or mixing duties and must be selected according to the required flow path, not only by nominal diameter.

Cryogenic ball valves require specific engineering checks. The extended bonnet, stem sealing system, low-temperature materials, cavity relief and test procedure must be verified. The use of stainless steel alone is not sufficient to qualify a valve for cryogenic service.

Jacketed ball valves are used where the process fluid must remain heated inside the valve body. They are relevant for waxes, resins, bitumen, crystallising products or temperature-sensitive fluids. The jacket medium, pressure and temperature must be checked separately from the main process side.

Technical selection should include:

  • valve type and flow function,
  • DN / NPS and pressure class,
  • body and ball material,
  • seat and seal material,
  • full bore, reduced bore or Venturi port,
  • cryogenic or heated-jacket requirement,
  • end connection,
  • manual or actuated operation,
  • Fire Safe, ATEX or project-specific requirements where applicable.

Adler valves are relevant for process engineers, piping engineers and maintenance teams requiring industrial ball valves for isolation, diversion, cryogenic or heated-process duties.

3 Way Ball Valve - FA4 | ADLER | Philippopoulos s.a.

3 Way Ball Valve - FA4 | ADLER

3 Way Ball Valve - FA4 | ADLER
Adler

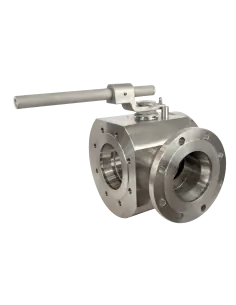

ADLER FA4 3-Way Ball Valve, Wafer Type The ADLER FA4 is a three-way, full bore wafer-type ball valve designed for installation between flanges. Technical documentation describes it as 3 way wafer full bore 90°, manufactured in accordance with EN 12516-2, ASME B16.34, ISO 14313, and EN 558. Flange compatibility includes EN 1092-1 or ASME B16.5. Hydraulic...
View

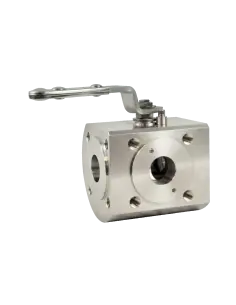

3 Way Ball Valve - FT4 | ADLER | Philippopoulos s.a.

3 Way Ball Valve - FT4 | ADLER

3 Way Ball Valve - FT4 | ADLER
Adler
ADLER FT4 3-Way Ball Valve, Wafer Full Bore The ADLER FT4 is a three-way, wafer-type, full bore ball valve designed for installation between flanges. Construction is 3-way wafer full bore 90°, available with T-bore or L-bore ball configurations to suit specific flow plans. Size range covers DN15–DN150, pressure classes PN10–PN40, and ANSI 150–300...
View

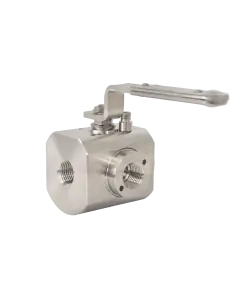

3 Way Ball Valve - FT6 | ADLER | Philippopoulos s.a.

3 Way Ball Valve - FT6 | ADLER

3 Way Ball Valve - FT6 | ADLER
Adler
ADLER FT6 3-Way Ball Valve, Full Bore 90° The ADLER FT6 is a three-way, full bore ball valve with 90° operation and T-bore or L-bore ball options. It is used for flow selection, diversion, or distribution in auxiliary and main industrial process circuits. The exact flow plan must be confirmed prior to ordering or automation. Construction and Connections...
View

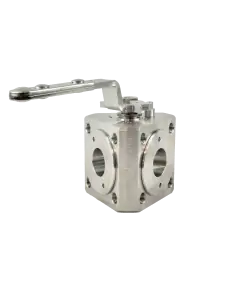

3 Way Ball Valve - FU4 | ADLER | Philippopoulos s.a.

3 Way Ball Valve - FU4 | ADLER

3 Way Ball Valve - FU4 | ADLER
Adler
ADLER FU4 3-Way Ball Valve, Wafer Type 120° The ADLER FU4 is a full-bore, three-way ball valve, wafer type, designed for compact installation between flanges in manifolds, skids, and flow selection/distribution lines. The valve operates with a 120° rotation, providing an alternative to standard 90° 3-way valves. Available in DN15–DN200, pressure classes...
View

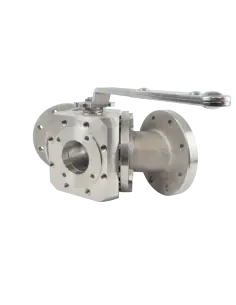

3 Way Ball Valve - FV4 | ADLER | Philippopoulos s.a.

3 Way Ball Valve - FV4 | ADLER

3 Way Ball Valve - FV4 | ADLER
Adler
ADLER FV4 Three-Way Ball Valve, Wafer 90° The ADLER FV4 is a full-bore, three-way ball valve, wafer type, with 90° operation. Designed for installation between flanges, it is suitable for compact manifolds where flow selection or diversion is required without increasing installation length. Available in DN40–DN200, PN10–PN40 / ANSI 150, with ANSI 300/600...
View
3 Way Ball Valve - FZ4 | ADLER | Philippopoulos s.a.

3 Way Ball Valve - FZ4 | ADLER

3 Way Ball Valve - FZ4 | ADLER
Adler
ADLER FZ4 3-Way Ball Valve, Wafer Full Bore 90° The ADLER FZ4 is a three-way wafer-type ball valve, full bore, designed for installation between flanges. Although classified as T-bore, the technical datasheet specifies an L-bore ball and 90° operation, with port 1 always open. Flow plan must be confirmed prior to order or automation selection....
View

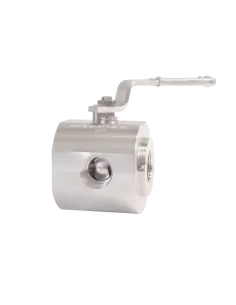

3 Way Ball Valve - FZ6 | ADLER | Philippopoulos s.a.

3 Way Ball Valve - FZ6 | ADLER

3 Way Ball Valve - FZ6 | ADLER
Adler
ADLER FZ6 Three-Way Ball Valve, PN25–PN63 The ADLER FZ6 is a full-bore, three-way ball valve with 90° rotation and threaded connections. Available in sizes 1/4” to 2”, the body is machined from round bar stock and manufactured to DIN 3202 M3, ASME B16.34, and ISO 14313. Thread types include EN 10226-1 / ISO 7-1 Rp or ASME B1.20.1 NPT. Pressure Ratings &...
View
Ball Valve 4 Way - RT7 | ADLER | Philippopoulos s.a.

Ball Valve 4 Way - RT7 | ADLER

Ball Valve 4 Way - RT7 | ADLER
Adler
Adler RT7 4-Way Ball Valve The Adler RT7 is a four-way ball valve with an X-port ball configuration, designed for flow path switching in industrial process circuits. The compact wafer type body is machined from round bar, with threaded connections per ISO 7-1 Rp / GAS or NPT to ASME B1.20.1. Available in sizes 1/4" to 2" and pressure classes PN25 to...
View
Ball Valve 4 Way - VT5 | ADLER | Philippopoulos s.a.

Ball Valve 4 Way - VT5 | ADLER

Ball Valve 4 Way - VT5 | ADLER
Adler
Adler VT5 4-Way Ball Valve The Adler VT5 is a four-way, full-bore wafer-type ball valve with an X-port ball and 90° rotation. It is used for flow switching between four branches, replacing multiple two-way valves in process circuits. Flow configuration must be defined in the P&ID, as the X-port geometry allows specific port communication patterns...
View

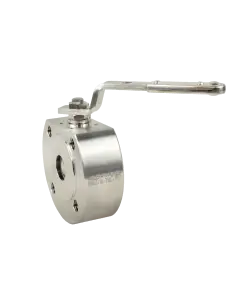

Ball Valve wafer - Type FA1 | ADLER | Philippopoulos s.a.

Ball Valve wafer - Type FA1 | ADLER

Ball Valve wafer - Type FA1 | ADLER
Adler
ADLER FA1 Wafer Ball Valve The ADLER FA1 is a full-bore wafer-type ball valve for flow isolation in industrial pipework where a short face-to-face dimension is required between flanges. Key Technical Data Sizes: DN15–DN300 Pressure ratings: PN10–PN40, ANSI Class 150–300 Body materials: ASTM A105, ASTM A479 304/304L or 316/316L Ball materials: stainless...
View

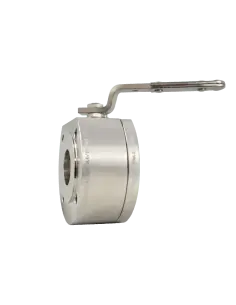

Ball Valve wafer - Type FA2 | ADLER | Philippopoulos s.a.

Ball Valve wafer - Type FA2 | ADLER

Ball Valve wafer - Type FA2 | ADLER
Adler
ADLER FA2 Wafer Full-Bore Ball Valve The ADLER FA2 is a full-bore wafer-pattern ball valve for installation between pipe flanges. It is used for isolation service in liquid, gas and steam systems where a shorter face-to-face length is required compared with a conventional flanged ball valve. Technical Data Nominal sizes: DN15 to DN300 Pressure classes:...
View

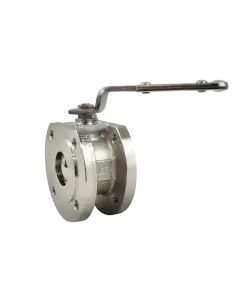

Ball Valve wafer - Type FB1 | ADLER | Philippopoulos s.a.

Ball Valve wafer - Type FB1 | ADLER

Ball Valve wafer - Type FB1 | ADLER
Adler
ADLER FB1 Wafer Type Ball Valve The ADLER FB1 is a full-bore wafer type ball valve for flow isolation in steam, water, compressed air and compatible industrial fluids. It is installed between flanges and uses a reduced face-to-face length compared with a fully flanged ball valve. Technical Data Nominal sizes: DN15 to DN300 Pressure rating: PN16 to PN160...
View
Ball Valve wafer - Type FB2 | ADLER | Philippopoulos s.a.

Ball Valve wafer - Type FB2 | ADLER

Ball Valve wafer - Type FB2 | ADLER
Adler
ADLER FB2 Wafer Full-Bore Ball Valve The ADLER FB2 is a full-bore wafer-type ball valve for installation between DIN or ANSI flanges. It is used as an isolation valve in steam, water, compressed air and industrial fluid lines, subject to compatibility with the body, ball, stem and seat materials. Technical Data Nominal sizes: DN15–DN300 Pressure...
View
Ball Valve wafer - Type FC1 | ADLER | Philippopoulos s.a.

Ball Valve wafer - Type FC1 | ADLER

Ball Valve wafer - Type FC1 | ADLER
Adler
ADLER FC1 Wafer Ball Valve The ADLER FC1 is a full-bore wafer ball valve for isolation duty on higher-pressure industrial lines. It is installed between EN 1092-1 or ANSI B16.5 flanges and covers PN63–PN160 and ANSI Class 600–1500 applications. Technical Characteristics Nominal sizes: DN15–DN300 Body materials: ASTM A105, ASTM A479 304/304L, ASTM A479...
View
Ball Valve wafer - Type FC2 | ADLER | Philippopoulos s.a.

Ball Valve wafer - Type FC2 | ADLER

Ball Valve wafer - Type FC2 | ADLER
Adler
ADLER FC2 Wafer Full-Bore Ball Valve Wafer-type full-bore ball valve for on/off isolation in industrial piping systems with elevated pressure ratings. The short body pattern is installed between DIN or ANSI flanges and reduces face-to-face length compared with conventional flanged ball valves. Technical Data Nominal sizes: DN15–DN300 Pressure ratings:...
View
Ball Valve with heating jacket - FZ4 | ADLER | Philippopoulos s.a.

Ball Valve with heating jacket - FZ4 | ADLER

Ball Valve with heating jacket - FZ4 | ADLER
Adler
Adler FZ4 Three-Way Ball Valve with Heating Jacket The Adler FZ4 is a three-way wafer-type ball valve, full bore, with 90° rotation and integrated heating jacket. It is specified for heated process lines requiring flow diversion or selection without product cooling inside the valve. Construction is referenced as 3-way wafer full bore 90° with heating...
View
Ball Valve with heating jacket - FJ2 | ADLER | Philippopoulos s.a.

Ball Valve with heating jacket - FJ2 | ADLER

Ball Valve with heating jacket - FJ2 | ADLER
Adler
Adler FJ2 Flanged Ball Valve with Heating Jacket The Adler FJ2 is a flanged, split-body, full-bore ball valve equipped with a heating jacket. Based on the FM2 series, it conforms to face-to-face dimensions per UNI EN 558-1. The valve is specified for heated lines where product solidification or viscosity increase in the ball cavity or seats must be...
View
Ball Valve with heating jacket - FK2 | ADLER | Philippopoulos s.a.

Ball Valve with heating jacket - FK2 | ADLER

Ball Valve with heating jacket - FK2 | ADLER
Adler
Adler FK2 Ball Valve with Heating Jacket The Adler FK2 is a full bore, split body ball valve equipped with a heating jacket. Based on the FE2 series, it is manufactured to ANSI B16.10 face-to-face dimensions with flanges per ANSI B16.5. This valve is specified for heated process lines where the medium must not solidify or increase in viscosity within the...
View
Ball Valve with heating jacket - FX1 | ADLER | Philippopoulos s.a.

Ball Valve with heating jacket - FX1 | ADLER

Ball Valve with heating jacket - FX1 | ADLER
Adler
Adler FX1 Spherical Ball Valve with Heating Jacket The Adler FX1 is a full bore wafer-type ball valve equipped with a heating jacket. Based on the FA1 series, it is designed for process lines where the medium must be maintained above its solidification point within the valve body—typical for resins, waxes, oils, bitumen, polymers, or crystallizing...
View
Ball Valve with heating jacket - FX2 | ADLER | Philippopoulos s.a.

Ball Valve with heating jacket - FX2 | ADLER

Ball Valve with heating jacket - FX2 | ADLER
Adler
Adler FX2 Spherical Ball Valve with Heating Jacket The Adler FX2 is a wafer type, split body, full bore ball valve with integrated heating jacket. This series is based on the FA2 design and is specified for heated process lines where the medium must not solidify within the ball cavity or seats. Typical applications include resins, waxes, bitumen, oils,...
View
Ball Valve with heating jacket - FY1 | ADLER | Philippopoulos s.a.

Ball Valve with heating jacket - FY1 | ADLER

Ball Valve with heating jacket - FY1 | ADLER
Adler
Adler FY1 Spherical Ball Valve with Heating Jacket The Adler FY1 is a full bore, wafer-type spherical ball valve equipped with a heating jacket. Based on the FB1 series, it is designed for installation between flanges in pipelines where the process medium requires thermal control within the valve body. Typical applications include resins, waxes, oils,...
View
Ball Valve with heating jacket - FY2 | ADLER | Philippopoulos s.a.

Ball Valve with heating jacket - FY2 | ADLER

Ball Valve with heating jacket - FY2 | ADLER
Adler
Adler FY2 Ball Valve with Heating Jacket The Adler FY2 is a wafer-type, split-body, full-bore ball valve equipped with a heating jacket. Based on the FB2 series, it is designed for installation between flanges in pipelines carrying temperature-controlled fluids. The heating jacket is rated for a maximum operating pressure of 10 bar. Technical Data...
View
Ball Valve with heating jacket - FT4 | ADLER | Philippopoulos s.a.

Ball Valve with heating jacket - FT4 | ADLER

Ball Valve with heating jacket - FT4 | ADLER
Adler
Adler FT4 Three-Way Ball Valve with Heating Jacket The Adler FT4 is a full bore, wafer-type, three-way ball valve with 90° rotation and integrated heating jacket. Designed for heated process lines requiring flow diversion or selection between three branches, the heating jacket prevents product solidification or viscosity increase within the valve body....
View
Ball Valve with nipples - Type FR2 | ADLER | Philippopoulos s.a.

Ball Valve with nipples - Type FR2 | ADLER

Ball Valve with nipples - Type FR2 | ADLER
Adler
ADLER FR2 Ball Valve with Welded Nipples The ADLER FR2 is a two-piece, full-bore ball valve supplied with 100 mm welded-type nipples for SW/BW plain-end connection. It is manufactured from round steel bar and is used on small-bore, high-pressure process and utility lines where a welded connection is preferred to threaded joints. Technical...
View
