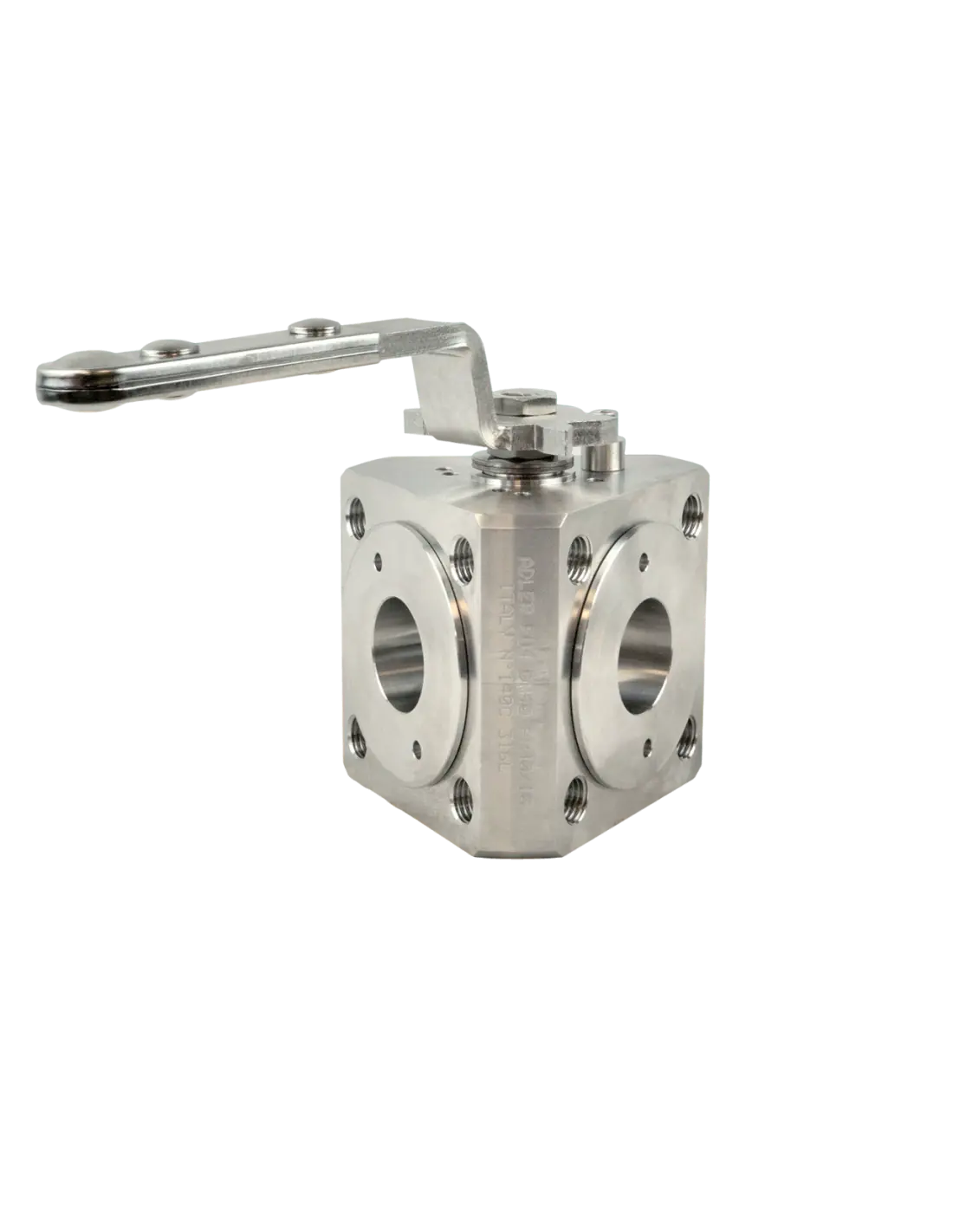

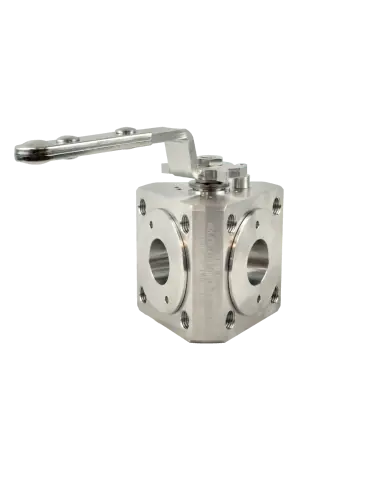

ADLER FU4 3-Way Ball Valve, Wafer Type 120°

The ADLER FU4 is a full-bore, three-way ball valve, wafer type, designed for compact installation between flanges in manifolds, skids, and flow selection/distribution lines. The valve operates with a 120° rotation, providing an alternative to standard 90° 3-way valves. Available in DN15–DN200, pressure classes PN10–PN40 / ANSI 150, and on request ANSI 300/600.

Construction and Materials

  • Body/Inserts: ASTM A105, ASTM A479 304/304L, ASTM A479 316/316L, or ASTM A351 CF8M
  • Ball: Stainless steel 304/316 or cast CF8/CF8M
  • Stem: ASTM A479 304/304L or 316/316L, anti-blowout design
  • Seats: PTFE, optional RPTFE
  • Stem Sealing: PTFE, chevron rings PTFE/graphite, optional O-ring FKM

Standards and Certifications

Design in accordance with ASME B16.34, EN 12516-2, full bore per ISO 14313. Available with PED 2014/68/EU, ATEX 2014/34/EU, fire-safe ISO 10497 / API 607, ISO 15848 Class A, antistatic device, and SIL 3 capable for automated valves.

Selection and Operation

The 120° operation angle distinguishes the FU4 from typical 90° 3-way valves. Confirm flow plan before ordering to ensure ball positions, lever indication, and limit switches match the required flow path.

Automation

Top flange ISO 5211 allows pneumatic or electric actuator mounting. For DN150–DN200, gear operators are recommended. Selection torque should consider differential pressure, seat material, media, and operation frequency.

Applications

Suitable for process water, air, neutral liquids, utility networks, distribution skids, and lines requiring triple hydraulic configuration in limited installation length. Oxygen service available with degreasing per ISO 23208.

Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105N
  • ASTM A351 CF8M
  • ASTM A479 Type 304
  • ASTM A479 Type 316
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE
  • RPTFE

Datasheet and documents

Description

Three way 120° ball valve “wafer type”, full bore, manufactured from round bar or casted according to EN 12516.2; ASME B16.34, ISO 14313.

Patented n° 00219616.

Available size from DN 15 to DN 200 in carbon steel,  stainless steel and special steel

Rating PN 10÷40 / ANSI 150 (On request available ANSI 300/600).

Chevron ring on stem.

On request:

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– according to  PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 for oxigen serivce

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE seats filled glass – carbon – S.S. – bronze, metal core

cryogenic valves

stem extention

oval handle

pneumatic actuator double/single acting

electric motor

manual gear box

electric-pneumatic limit switches/solenoid valves

Cerftificates

– certified in safety  system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V
