Ball Valve 1530 Series | 4G Ghidini

Discover Superior Performance: Ball Valve 1530 Series | 4G Ghidini

The Ball Valve 1530 Series | 4G Ghidini delivers exceptional reliability and unmatched durability for demanding industrial environments. Designed with precision and built to last, this ball valve stands out as the ideal solution for effective flow control, even under the toughest conditions.

Features and Benefits of Ball Valve 1530 Series | 4G Ghidini

  • Effortless Operation: The ergonomic handle ensures smooth, easy turning, allowing fast shut-off and opening with minimal effort.
  • High Strength Materials: Manufactured using premium-grade brass, this valve resists corrosion, wear, and high pressure, guaranteeing long-term performance in industrial applications.
  • Leakproof Design: The precision-engineered ball mechanism ensures a tight seal every time, preventing leaks and loss of valuable fluids.
  • Versatile Connectivity: Compatible with a range of piping systems, the 1530 Series is easy to install and integrates flawlessly into existing infrastructure.
  • Maintenance-Free: The robust construction minimizes maintenance needs, saving both time and costs over the lifespan of the valve.
  • Safe and Reliable: The valve is designed to withstand extreme temperatures and pressures, providing dependable protection for your operations and peace of mind for users.

Whether you need to control water, gas, or industrial fluids, the Ball Valve 1530 Series | 4G Ghidini offers outstanding performance wherever it’s installed. Its compact design fits easily in tight spaces, while its advanced sealing technology provides consistent, trouble-free operation in the most demanding settings.

Choose the Ball Valve 1530 Series | 4G Ghidini to experience a new level of efficiency and reliability. Keep your operations running smoothly and safeguard your installations with a valve engineered for maximum performance.


Type : 153050
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

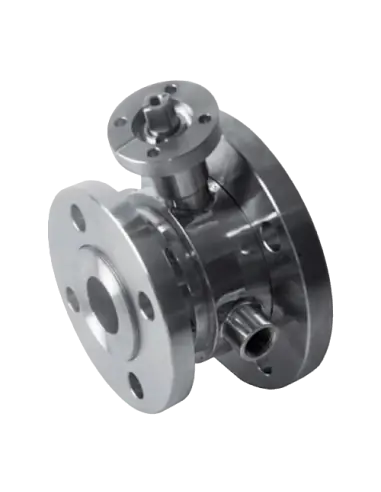

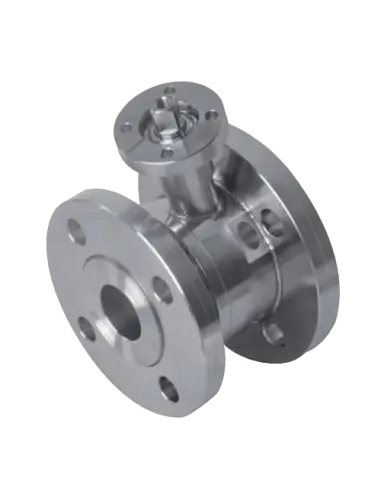

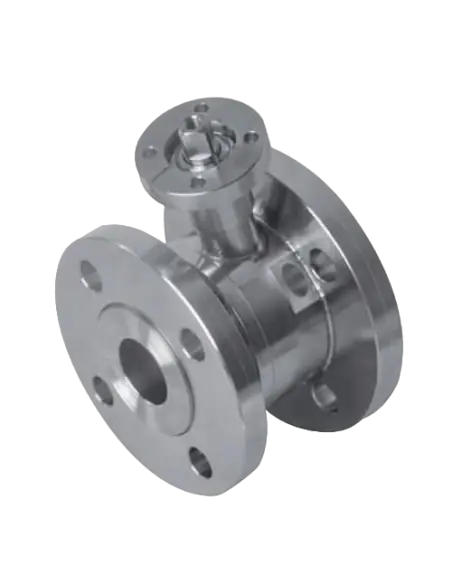

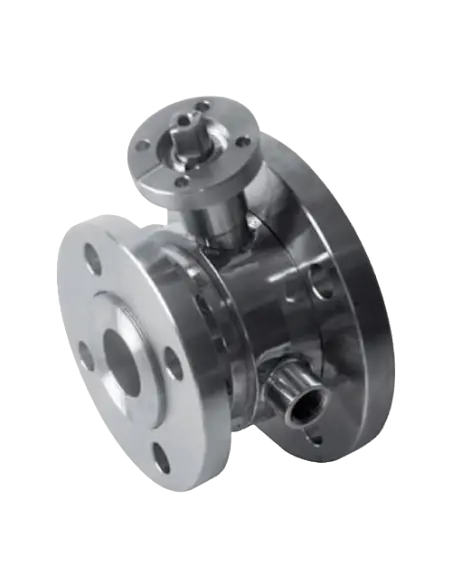

TWO way ball valve STEM BENT BOTTOM with “STANDARD SEAL” / TWO-way ball valve STEM BENT BOTTOM with “STANDARD SEAL” with HEATING JACKET

Use: Valve for tank bottom

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

Drive: ISO 5211 – DIN 3337 flange for actuator

Connections: Flange-Flange, tank side flange fixed and revolving threaded flange according to UNI EN 1092-1 on outlet side

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN40 to DN125

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

Screws for mounting actuator included

On request:

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with inox -20°C+200°C

• MANUAL with LEVER Kit

• Counterflanges for Tank
