Ball Valve 1330 Series | 4G Ghidini

Advanced Flow Control for Industry: Ball Valve 1330 Series | 4G Ghidini

Discover reliability and precision with the Ball Valve 1330 Series | 4G Ghidini. Built for industrial environments, this valve is designed to efficiently manage flow and pressure, ensuring smooth operation and safety. Its sturdy construction and smart design make it a practical choice for demanding applications.

Features & Benefits: Why Choose Ball Valve 1330 Series | 4G Ghidini

  • Superior Sealing: Enjoy leak-free performance thanks to the precision-engineered ball and seat design that ensures a tight seal, even after frequent use.
  • Robust Construction: Manufactured with high-quality materials, the valve withstands extreme temperatures, pressure, and corrosive environments. This means less maintenance and a longer lifespan.
  • Effortless Operation: The ergonomic handle and smooth mechanism allow for easy, one-handed control—open or close the flow with a simple turn.
  • Flexible Installation: Designed to fit a variety of piping systems, this valve offers quick installation and compatibility with common industry standards.
  • Reliable Shut-Off: Experience confidence with a valve that delivers precise shut-off, reducing risk and protecting your equipment day after day.

The Ball Valve 1330 Series | 4G Ghidini is engineered for practical use in all kinds of industrial settings. Its straightforward design makes it easy to integrate, while advanced features support uninterrupted workflow. The compact size saves space without sacrificing strength or efficiency.

Choose this valve for its mix of durability and user-friendly performance. The 1330 Series keeps your operation moving, minimizes downtime, and ensures safe and reliable fluid control. When you need a valve that works as hard as you do, trust Ball Valve 1330 Series | 4G Ghidini for your industrial applications.


Type : 133004
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • NPT
  • Revolving Threaded Flanges
  • Butt Weld
  • Aceptik
  • Clamp
  • ISO 228-1
  • DIN 11851
  • SMS
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

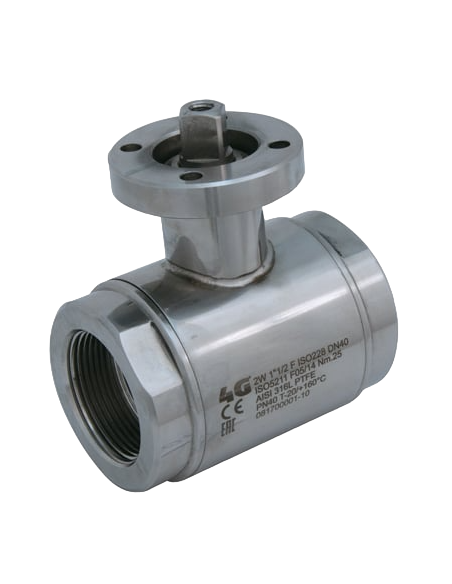

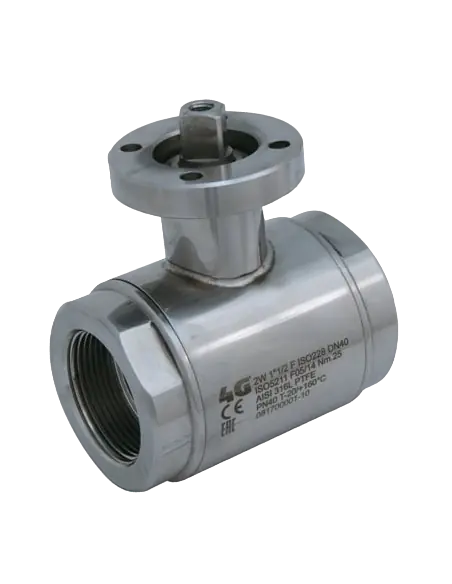

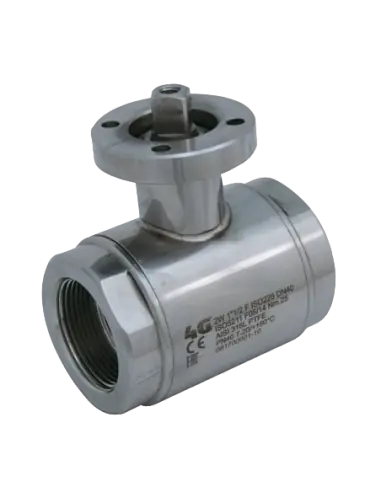

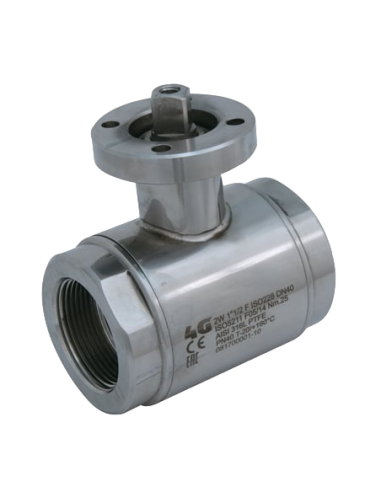

TWO-way ball valve “Integral Seal”

Drive: ISO 5211 – DIN 3337 flange for actuator

Flow: Full

Material: Aisi 316L (1.4404)

Measure:

From 1/4” to 4”

From 1” to 4”

Seals: virgin P.T.F.E.

Operating temperature: -20°C +160°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
